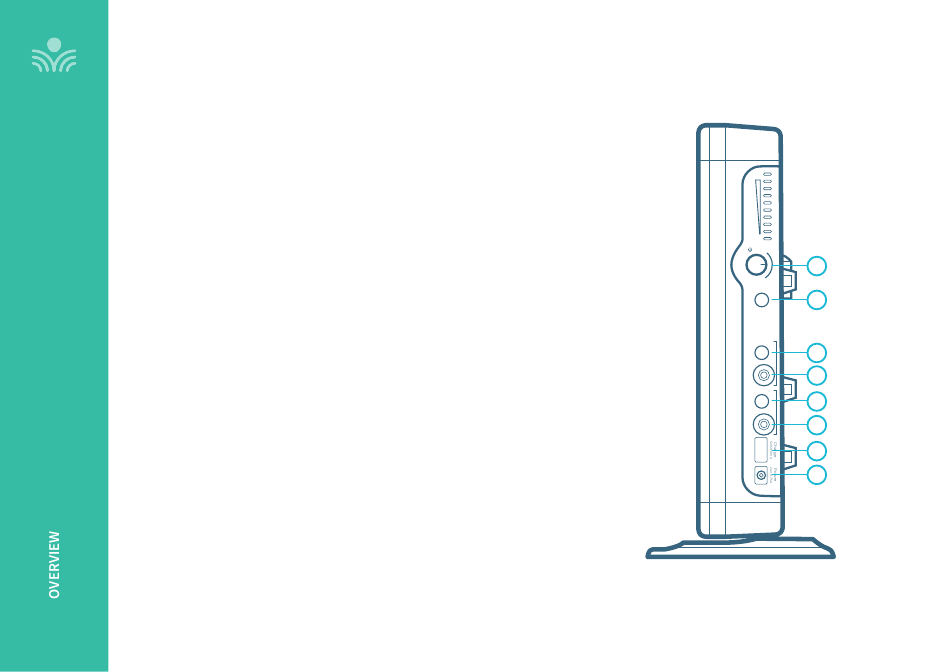

Side Panel Controls and Connections
POWER BUTTON / VOLUME ADJUSTMENT: Press this button to turn the system power on
1.
or off. This also functions as an adjustment knob for the volume and tone depending on the
mode selected (see 5,6,7 below).
TONE SELECTOR: Selects Tone as the mode for the adjustment knob (1) for the microphone.
2.
This adjusts the bass or treble that is heard through the classroom speaker.
AUDIO INPUT VOLUME SELECTOR: Selects Volume as the mode for the adjustment knob (1)
3.
for the audio sources connected to the audio input jack below.
AUDIO INPUT JACK: 3.5mm stereo connector for connecting to a computer or mobile device
4.
as an audio source.
AUDIO OUTPUT VOLUME SELECTOR: Selects Volume as the mode for the adjustment knob
5.
(1) for the audio device connected to the audio output jack below.
AUDIO OUTPUT JACK: 3.5mm stereo connector for connecting to an assisted listening
6.
device (ALD) or to a computer for recording.
EXTERNAL DEVICE/POWER PORT: Charge for external device.
7.
POWER: Plug the power supply (24V/1.75A) into this jack.
8.
8
Push
1
Level
2
Tone
Input
3
4
Output
5
6
7
8
