C. OPTIONAL WALL/POWER SUPPLY BRACKET INSTALLATION

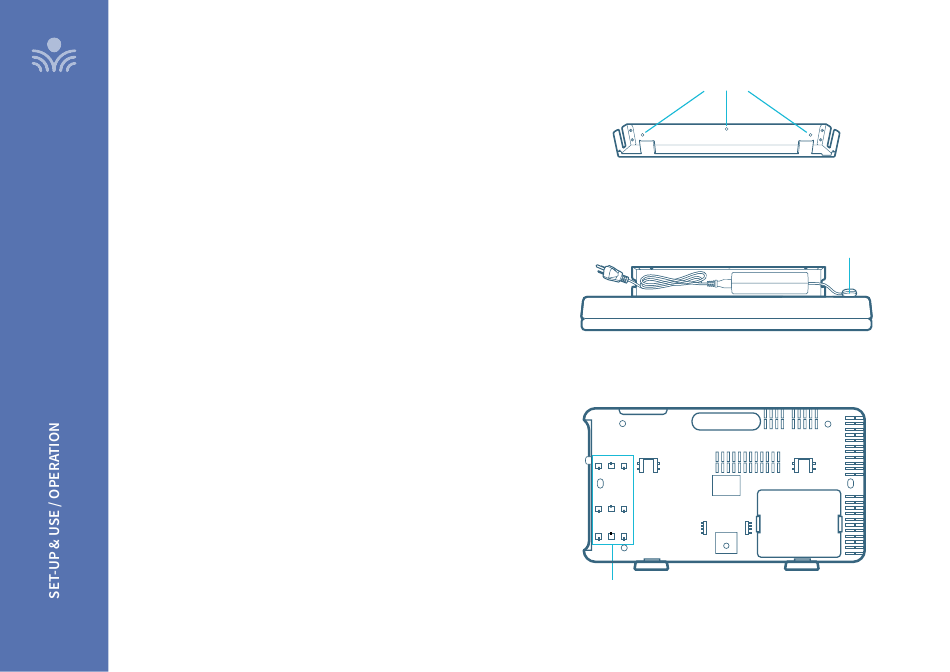

INSTALL WALL BRACKET
• Mark position of the three drill holes on the wall
• Drill pilot holes
• Insert wall anchors as needed
• Insert and secure screws through the bracket into the anchors
ATTACH REDCAT AND POWER SUPPLY
• Slide the Redcat onto the wall-mounted bracket inserting the bracket tabs
into the wall mount slots
• Place the power supply and power cord into the bracket
• Insert the DC connector into the 'DC INPUT' on the Redcat and plug the
other end into an electrical outlet. Use the slot on the end of the bracket to
hold the power cord in place
CABLE MANAGEMENT
• Use the tabs on the back of the Redcat for cable management and strain relief
13
DRILL HOLES
WALL BRACKET
TOP VIEW
STRAIN RELIEF TABS
DC INPUT
