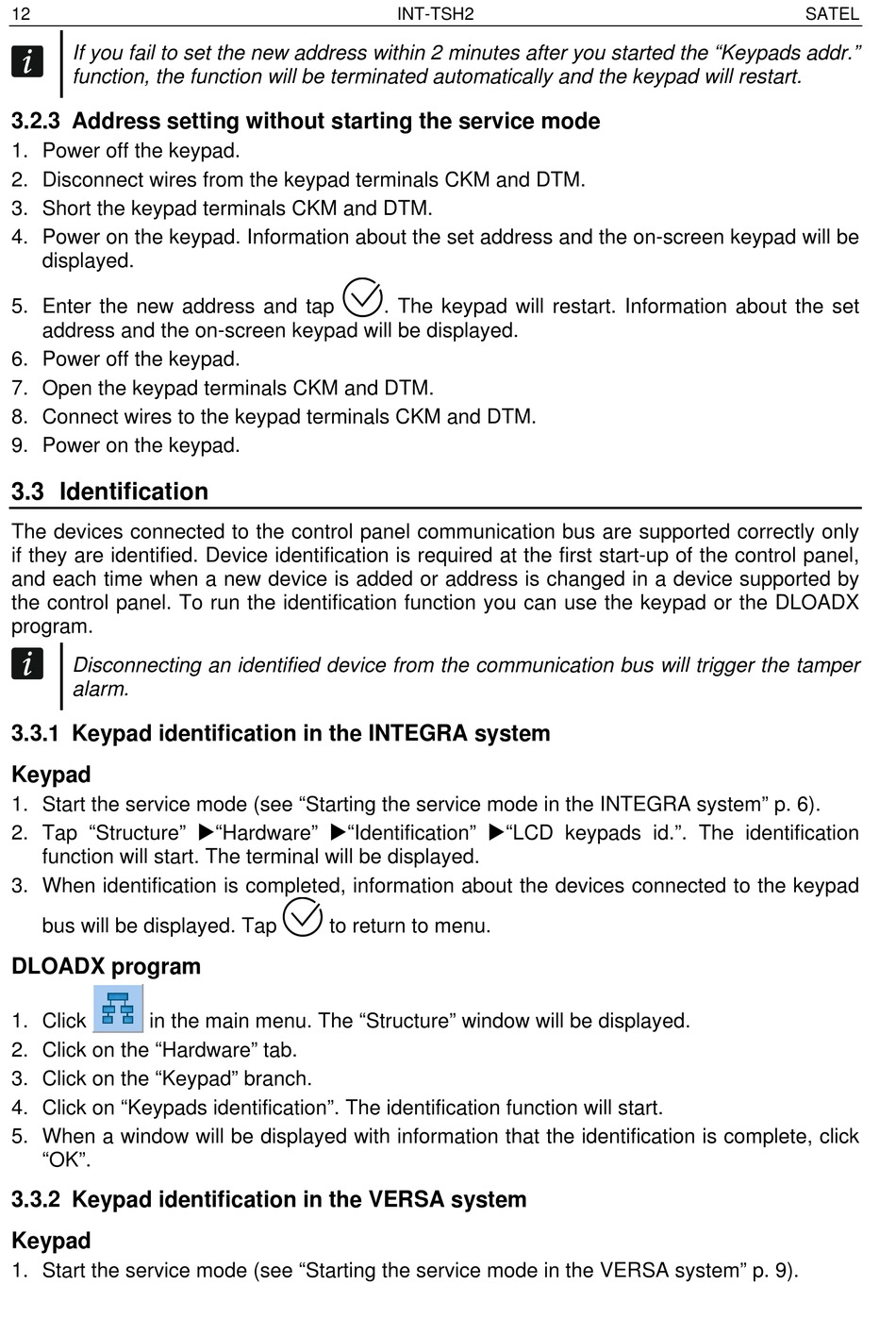

12
If you fail to set the new address within 2 minutes after you started the "Keypads addr."
function, the function will be terminated automatically and the keypad will restart.

3.2.3 Address setting without starting the service mode

1. Power off the keypad.
2. Disconnect wires from the keypad terminals CKM and DTM.
3. Short the keypad terminals CKM and DTM.
4. Power on the keypad. Information about the set address and the on-screen keypad will be
displayed.
5. Enter the new address and tap
address and the on-screen keypad will be displayed.
6. Power off the keypad.
7. Open the keypad terminals CKM and DTM.
8. Connect wires to the keypad terminals CKM and DTM.
9. Power on the keypad.

3.3 Identification

The devices connected to the control panel communication bus are supported correctly only
if they are identified. Device identification is required at the first start-up of the control panel,
and each time when a new device is added or address is changed in a device supported by
the control panel. To run the identification function you can use the keypad or the DLOADX
program.
Disconnecting an identified device from the communication bus will trigger the tamper
alarm.

3.3.1 Keypad identification in the INTEGRA system

Keypad
1. Start the service mode (see "Starting the service mode in the INTEGRA system" p. 6).
2. Tap "Structure" "Hardware" "Identification" "LCD keypads id.". The identification
function will start. The terminal will be displayed.
3. When identification is completed, information about the devices connected to the keypad
bus will be displayed. Tap
DLOADX program
1. Click in the main menu. The "Structure" window will be displayed.
2. Click on the "Hardware" tab.
3. Click on the "Keypad" branch.
4. Click on "Keypads identification". The identification function will start.
5. When a window will be displayed with information that the identification is complete, click
"OK".

3.3.2 Keypad identification in the VERSA system

Keypad
1. Start the service mode (see "Starting the service mode in the VERSA system" p. 9).
INT-TSH2
. The keypad will restart. Information about the set
to return to menu.
