Satel INT-TSH2R Quick Installation Manual

INT-TSH2R
Keypad
Full manual is available at
website and download the manual.
The device should be installed by qualified personnel.
Changes, modifications or repairs not authorized by the manufacturer shall void your rights
under the warranty.
Disconnect power before making any electrical connections.
This is a Class A product. In a domestic environment this product may cause radio frequency
interference.
The keypad is designed for indoor installation. The place of installation should be readily accessible to the
system users.

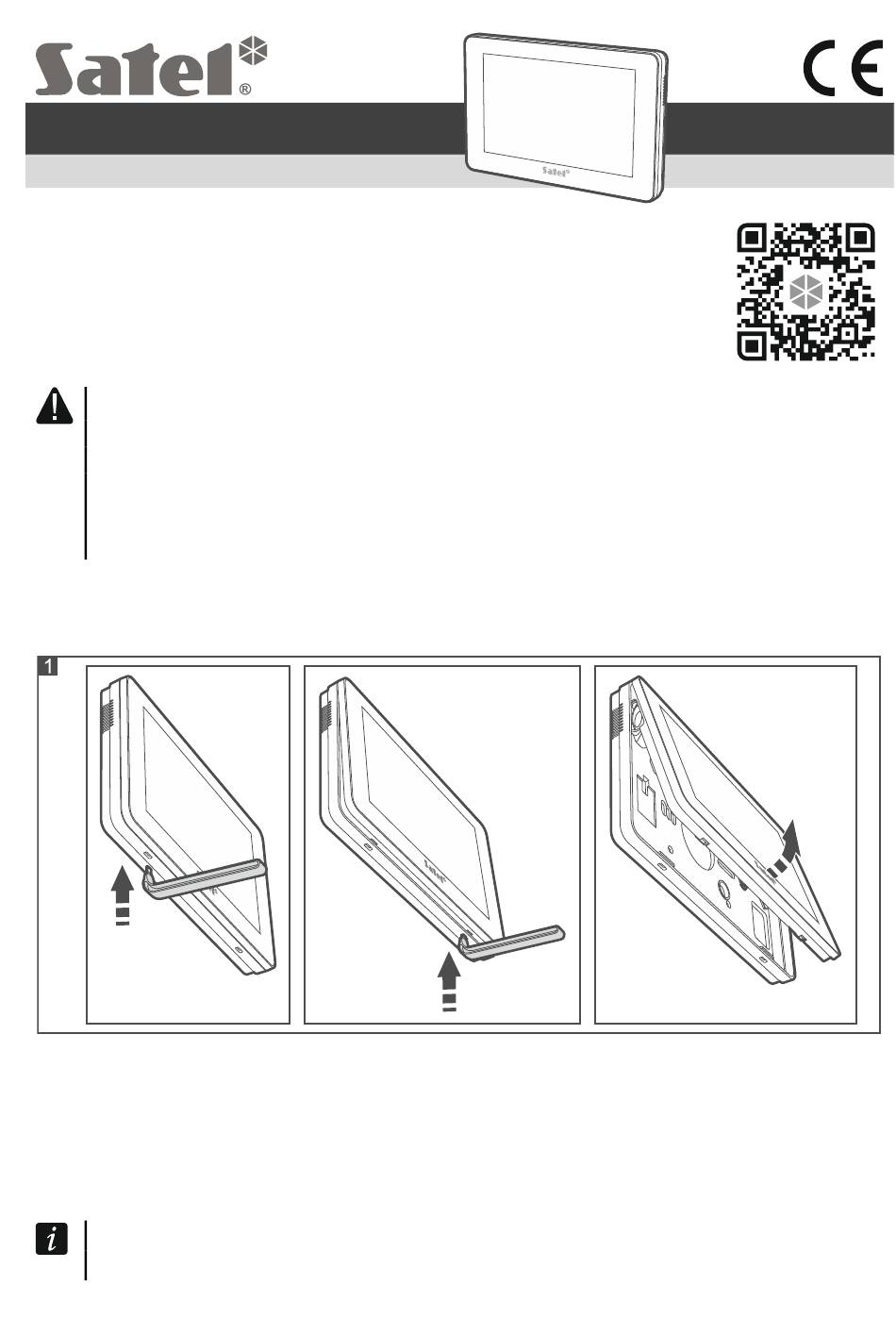

1. Open the keypad enclosure (Fig. 1). The enclosure opening tool, shown in the illustration, is included in the
keypad delivery set.
2. Place the enclosure base on the wall and mark the location of mounting holes.
3. Drill the holes for wall plugs (screw anchors).
4. Run the wires through the opening in the enclosure base.
5. Use wall plugs (screw anchors) and screws to fasten the enclosure base to the wall. Select wall plugs
specifically intended for the mounting surface (different for concrete or brick wall, different for drywall, etc.).
6. Connect the DTM, CKM and COM keypad terminals to the appropriate terminals of the control panel
communication bus (Fig. 2). If you use the twisted-pair type of cable, remember that CKM (clock) and DTM
(data) must not be sent through one twisted-pair cable.
The bus wires must be run in one cable.
The length of cables must not exceed 300 m.
