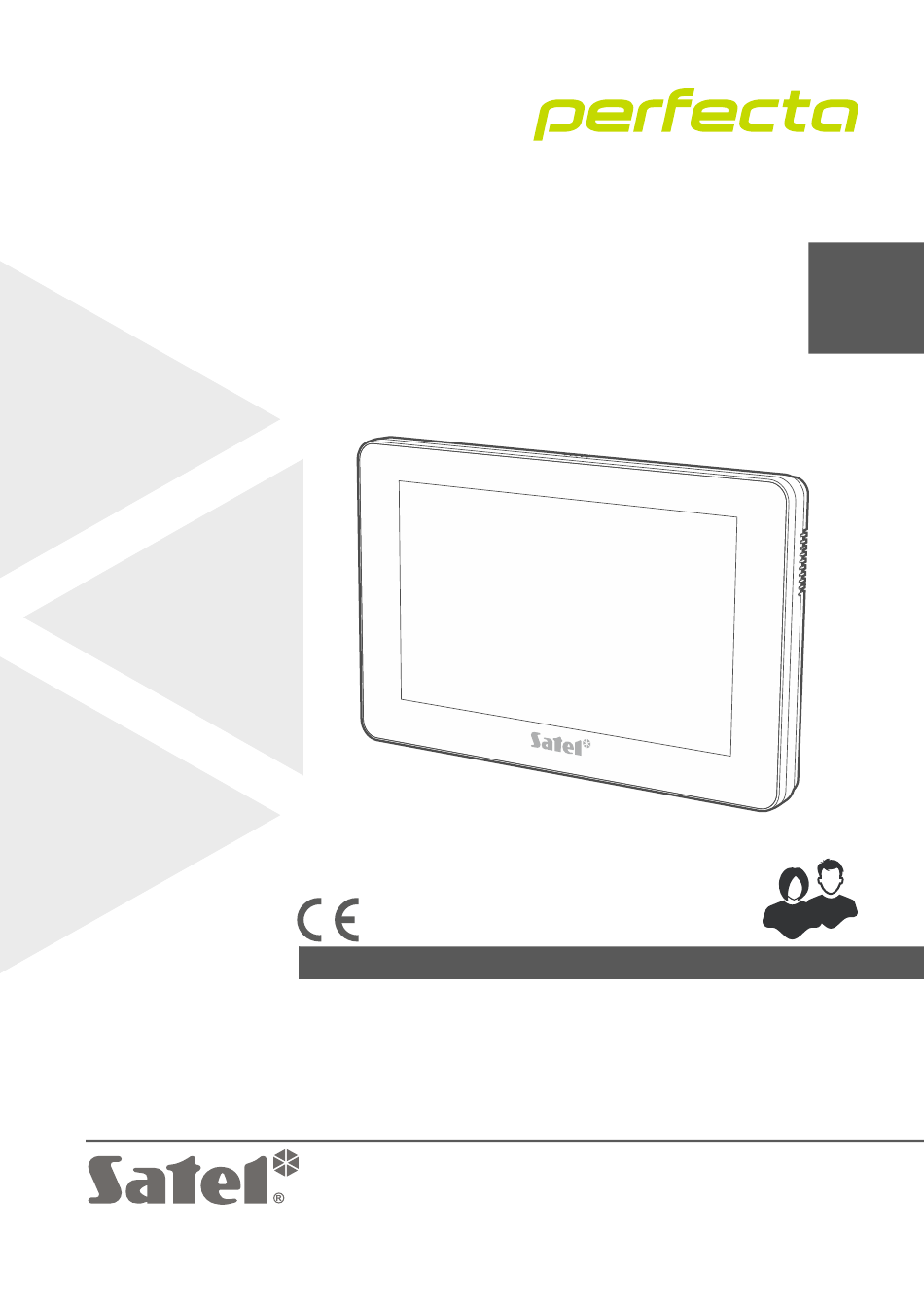

- Page 1 Keypad INT-TSH2R Firmware version 2.01 USER MANUAL – PERFECTA 64 M int-tsh2r_op_en 03/24 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 This is a Class A product. In a domestic environment this product may cause radio frequency interference. Hereby, SATEL sp. z o.o. declares that the radio equipment type INT-TSH2R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.satel.pl/ce...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ........................3 2. Using the touch screen ...................... 3 3. Screensaver ........................5 Slideshow ........................6 Trigger the panic alarm ....................6 4. User screens ........................6 5. Additional screens ......................8 6. Status bar .......................... 8 7. - Page 4 INT-TSH2R SATEL 10.8.2 Using the terminal ................... 22 10.9 “Keypad” screen......................26 10.9.1 Setting the screen brightness ................27 10.9.2 Setting the keypad volume ................27 10.9.3 Setting the auto logout time ................28...
-
Page 5: Introduction
In order to control the alarm system, you can use: • user screens and additional screens created for you by the installer, • user menu created by SATEL. Use the gestures described below. Tap on an item on the screen. - Page 6 INT-TSH2R SATEL Tap and hold Tap on an item on the screen and hold for 3 seconds. Swipe up / down Tap the screen and slide your finger up or down to: • swipe the screen up / down (move between the screensaver / user screen / user menu home screen), •...
-
Page 7: Screensaver
SATEL INT-TSH2R Swipe right from the edge (return to the previous screen) Tap the screen close to the left edge and slide your finger right to return to the previous screen. This gesture is supported in the user menu and the service menu. You will not be able to exit the service mode by using this gesture. -
Page 8: Slideshow
INT-TSH2R SATEL The screensaver on a keypad with factory default settings (Fig. 1) shows: • status icons (see p. 8), • date and time. The installer can add to the screen additional widgets that will indicate the alarm system status (see “Widgets” p. 9). - Page 9 SATEL INT-TSH2R When the screensaver or slideshow is displayed, tap the screen to go to the user home screen. If the screensaver has been disabled by the installer, the user home screen will be displayed when the keypad is not in use.
-
Page 10: Additional Screens
For this reason, the additional screens may be used to display site plans. If pictures other than the ones offered by SATEL are to be displayed, the installer must save them on a memory card and install the card in the keypad. -
Page 11: Widgets
SATEL INT-TSH2R Information about the armed status may be hidden after the time defined by the installer has passed. The trouble information is hidden after arming. The installer defines if the trouble information is hidden after just one of the partitions is armed in any mode or after all partitions are armed in full mode. -
Page 12: Zone State
Zone state The widget displays the zone state represented by either: • icons selected by SATEL (indicator) – different states are displayed, • text messages (text) – messages inform only about normal and violated states, • icons selected by the installer (icon) – only normal and violated states are displayed. -
Page 13: Temperature
SATEL INT-TSH2R The icons selected by SATEL are described in the table below. Icon Output status deactivated activated “15: Controlled” type output deactivated “15: Controlled” type output activated Temperature The widget displays the temperature. Information about the temperature is sourced from an ABAX 2 wireless device. -
Page 14: Button
INT-TSH2R SATEL 8.13 Button The icon for the widget is selected by the installer. The widget offers two functions: • tap – tap the widget to turn on / off an output. • tap and hold – tap and hold the widget to turn on an output. The output will remain on as long as you hold the widget. -
Page 15: User Menu
SATEL INT-TSH2R Fig. 4. On-screen keypad. 10. User menu Swipe up on the user screen / additional screen to go to the user menu. Since the access to the user menu is code-protected, the keypad will open first. Enter the code. The menu will open immediately if you have already logged in on the user screen. -
Page 16: Qwerty Keyboard
INT-TSH2R SATEL The following functions are available on the user menu home screen. tap to go to the “Partitions” screen (p. 15). tap to go to the “Zones” screen (p. 17). tap to go to the “Outputs” screen (p. 19). -
Page 17: Partitions" Screen
SATEL INT-TSH2R tap to exit the QWERTY keyboard. tap to switch the keyboard to the number keys mode. tap to switch the keyboard to the letter keys mode. tap to delete the character before the cursor. tap to enable / disable the diacritical marks mode. -
Page 18: Arming
INT-TSH2R SATEL Fig. 8. “Partitions” screen (example). The numbers displayed next to the following icons indicate: number of disarmed partitions where zones are violated. number of armed partitions. number of partitions where alarm condition occurs. number of partitions where exit delay is running. -
Page 19: Filtering The Partition List
SATEL INT-TSH2R 2. If you want to disarm several partitions, tap the next partitions. 3. Tap the button with the icon. If there was an alarm condition in the partition, disarming will clear the alarm. 10.3.3 Filtering the partition list 1. -
Page 20: Zone Inhibiting
INT-TSH2R SATEL The icon displayed in front of the partition name allows you to: tap to hide the list of zones that belong to the partition. tap to show the list of zones that belong to the partition. Information about how many zones are selected is shown in brackets next to the partition name ([number of selected zones]/[number of zones]). -
Page 21: Filtering The Zone List
SATEL INT-TSH2R 2. If you want unbypass several zones, tap each zone one by one. 3. Tap the button with the icon. 10.4.4 Filtering the zone list 1. Tap the icon. The buttons with filtering criteria will appear. 2. Tap the buttons with the filtering criteria that you want to use. You can tap any number of buttons. -
Page 22: Output Control
INT-TSH2R SATEL Information about how many outputs are activated is shown in brackets above the list of outputs ([number of activated outputs]/[number of outputs]). If you tap the screen close to the bottom edge and swipe up, the buttons with the icons will appear at the bottom of the screen: tap to increase the size of the icons/names on the list. -
Page 23: Keys
SATEL INT-TSH2R Fig. 11. Terminal. 10.8.1 Keys Functions of keys enter digits (code, partition number, etc.) view the troubles (tap and hold for 3 seconds) turn on/off the keypad CHIME (tap and hold for 3 seconds) trigger the medical alarm (tap and hold for 3 seconds) ) –... -
Page 24: Using The Terminal
INT-TSH2R SATEL Functions of keys arm the system in the full mode – see “Arming” terminate the exit delay (tap and hold for 3 seconds) arm the system in the night mode – see “Arming” terminate the exit delay (tap and hold for 3 seconds) arm the system in the day mode –... - Page 25 SATEL INT-TSH2R Quick arming The installer may permit arming without entering the code. 1. Select the partition/partitions to be armed (tap one of the keys: - partition 1; - partition 2; - partition 3; - partition 4; - all partitions).
- Page 26 INT-TSH2R SATEL 2. Tap 3. Enter the code. 4. Tap 5. Selected partition will be disarmed / alarm will be cleared. User menu Enter the code and tap to get access to the user menu. The functions you can run will be displayed.
- Page 27 SATEL INT-TSH2R Using the arrow keys 1. Use the key to find the required submenu or function. 2. Tap to open a submenu or run a function (use the key to go back to the previous menu/submenu). Using the number shortcuts Most submenus and functions are designated by numbers.
-
Page 28: Keypad" Screen
INT-TSH2R SATEL Entering names Keep tapping the key until the required character appears. Long tap the key to display the digit assigned to it. Shown on the left side in the upper line of the display is information about the letter case: [Abc], [ABC] or [abc] (it is shown for a few seconds when you tap any key). -
Page 29: Setting The Screen Brightness
SATEL INT-TSH2R 10.9.1 Setting the screen brightness Tap the “Brightness” function. The sliders and the buttons will appear at the bottom of the screen. The sliders are marked with the icons described in the table below. screen brightness in the daytime when the keypad screen is woken up. -
Page 30: Setting The Auto Logout Time
INT-TSH2R SATEL 10.9.3 Setting the auto logout time Tap the „Auto logout” function. The buttons and the slider will appear at the bottom of the screen. Use them to set the time of inactivity after which the user will be automatically logged out.
