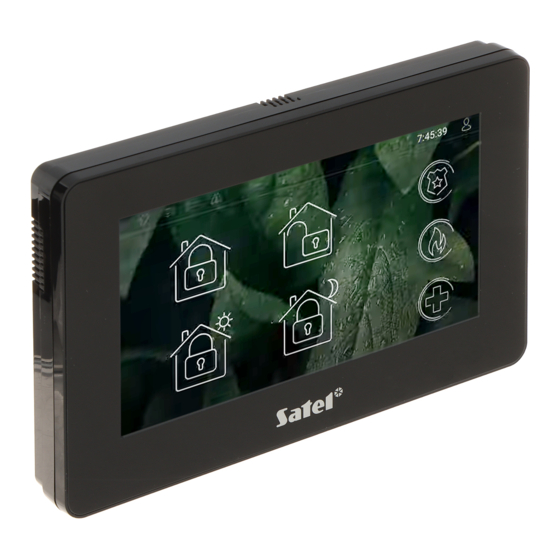

- Page 1 SATEL INT-TSH2 INT-TSH2 Keypad User manual VERSA Firmware version 2.00 int-tsh2_ov_en 08/21 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Warning This is a Class A product. In a domestic environment this product may cause radio frequency interference. The declaration of conformity may be consulted at www.satel.eu/ce Factory default codes: Service code: 12345 Object 1 master user (administrator) code: 1111...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ........................2 2. Using the touch screen ...................... 2 3. Screensaver ........................4 Slideshow ........................5 Trigger the panic alarm ....................5 4. User screens ........................5 5. Additional screens ......................6 6. Status bar .......................... 7 7. -
Page 4: Introduction
In order to control the alarm system, you can use: • user screens and additional screens created for you by the installer, • user menu created by SATEL. After 10 minutes of inactivity, the keypad screen can turn off (this setting is available in the service menu). - Page 5 SATEL INT-TSH2 Tap and hold Tap on an item on the screen and hold for 3 seconds. Swipe up / down Tap the screen and slide your finger up or down to: • swipe the screen up / down (move between the screensaver / user screen / user menu home screen), •...
-
Page 6: Screensaver
INT-TSH2 SATEL Swipe right from the edge (return to the previous screen) Tap the screen close to the left edge and slide your finger right to return to the previous screen. This gesture is supported in the user menu and the service menu. You will not be able to exit the service mode by using this gesture. -
Page 7: Slideshow
SATEL INT-TSH2 The installer can add to the screen additional widgets that will indicate the alarm system status (see “Widgets” p. 8). Tap the screen to view the user screen. Swipe left to start the slideshow. Slideshow The keypad can run a slideshow of images, if the installer installed in the keypad a memory card on which the images had been saved. -
Page 8: Additional Screens
For this reason, the additional screens may be used to display site plans. If pictures other than the ones offered by SATEL are to be displayed, the installer must save them on a memory card and install the card in the keypad. -
Page 9: Status Bar
SATEL INT-TSH2 Fig. 3. Screen with a site plan (example). 6. Status bar The status bar is displayed on the top of the user screen and the additional screen. It includes: • status icons, • screen title (optionally, if added by the installer), •... -
Page 10: Widgets
INT-TSH2 SATEL − the icon indicates trouble / trouble memory / alarm / alarm memory / bypassed zones. 8. Widgets The widgets described below may be displayed on the screen. Text The widget displays any text that was added by the installer or system element name. -
Page 11: Zone State
Zone state The widget displays the zone state represented by either: • icons selected by SATEL (indicator) – different states are displayed, • text messages (text) – messages inform only about normal and violated states, • icons selected by the installer (icon) – only normal and violated states are displayed. -
Page 12: Date/Time
INT-TSH2 SATEL Date/time The widget displays the date and time in the format specified by the installer. Switch The icon for the widget is selected by the installer. Tap the widget to activate / deactivate an output. Rectangle The widget displays a rectangle that can be translucent and have different colors. As an additional graphic element it may be used e.g. -
Page 13: User Menu
SATEL INT-TSH2 Fig. 4. On-screen keypad. Enter the code using the number keys and tap . If you made a mistake when entering the code, tap and re-enter the code (if you fail to enter the valid code within one minute, it will be treated as if you entered an invalid code). -
Page 14: User Menu Home Screen
INT-TSH2 SATEL 10.1 User menu home screen Fig. 5. User menu home screen. The following functions are available on the user menu home screen. tap to go to the “Partitions” screen (p. 14). tap to go to the “Zones” screen (p. 16). - Page 15 SATEL INT-TSH2 Fig. 6. QWERTY keyboard: letter keys mode. The text entered is displayed in the field above the keys. In addition to the typing keys, the following special keys are available. tap to switch the keyboard to the uppercase mode.
-
Page 16: Partitions" Screen
INT-TSH2 SATEL Fig. 7. QWERTY keyboard: number keys mode. 10.3 “Partitions” screen On this screen you can see the list of the partitions that you can operate by means of the keypad. The partitions are represented by icons that indicate the partition state. The icons are the same as the ones used by the “Partition state”... -
Page 17: Arming
SATEL INT-TSH2 tap to go back to the user menu home screen. The numbers displayed next to the following icons indicate: number of disarmed partitions. number of armed partitions. number of partitions where alarm condition occurs. number of partitions where exit delay is running. -
Page 18: Searching For Partitions
INT-TSH2 SATEL 10.3.4 Searching for partitions 1. Tap the icon. The QWERTY keyboard will appear. 2. Enter a string of characters that is to be included in the partition / partitions name. 3. Tap the button with the icon. Partitions whose name includes the entered string of characters will be displayed. -
Page 19: Zone Inhibiting
SATEL INT-TSH2 number of zones that triggered alarm. number of bypassed zones. number of tampered zones. If you tap the screen close to the bottom edge and swipe up, the buttons with the icons will appear at the bottom of the screen: tap to increase the size of the icons/names on the list. -
Page 20: Searching For Zones
INT-TSH2 SATEL 10.4.5 Searching for zones 1. Tap the icon. The QWERTY keyboard will appear. 2. Enter a string of characters that is to be included in the zone / zones name. 3. Tap the button with the icon. Zones whose name includes the entered string of characters will be displayed. -
Page 21: Output Control
SATEL INT-TSH2 10.5.1 Output control Tap the controllable output to change its state. You can recognize these outputs by the icon (see description of the “Output state” widget p. 9). 10.6 “Troubles” screen On this screen you can see the list of troubles. The installer defines whether only the current troubles are to be presented, or also those which have already ended (trouble memory). -
Page 22: Keys
INT-TSH2 SATEL Fig. 11. Terminal. 10.8.1 Keys The number and letter keys allow you to enter the code as well as numbers and names. Other functions of these keys are described below. allows you to trigger the medical (auxiliary) alarm (tap and hold down for 3 seconds). -
Page 23: Using The Terminal
SATEL INT-TSH2 allows you to: − disarm the system and clear the alarm – see “Disarming and alarm clearing”, − quickly check the partition state (tap and hold down for 3 seconds). 10.8.2 Using the terminal Arming Arming without partition selection... - Page 24 INT-TSH2 SATEL Arming without delay If there is nobody in the partition or nobody is leaving the partition which is to be set to the day / night armed mode, you can arm the partition without exit delay (there will be no sounds accompanying the exit delay countdown).
- Page 25 SATEL INT-TSH2 Navigating through the menu and running functions Using the arrow keys 1. Using the keys, find the required submenu or function. The currently selected submenu or function is indicated by the cursor on the left. 2. Tap to open a submenu or run a function (use the key to go back to the previous menu/submenu).
-
Page 26: Keypad" Screen
INT-TSH2 SATEL Entering decimal and hexadecimal values To enter digits, use the number keys. To enter characters from A to F, use the keys (keep tapping the key until the required character appears). Entering names Keep tapping the key until the required character appears. Long tap the key to display the digit assigned to it. -
Page 27: Setting The Screen Brightness
SATEL INT-TSH2 tap to format the memory card. in the top right corner of the screen to return to the previous screen. 10.9.1 Setting the screen brightness Tap the “Brightness” function. The sliders and the buttons will appear at the bottom of the screen.
