INT-TSH

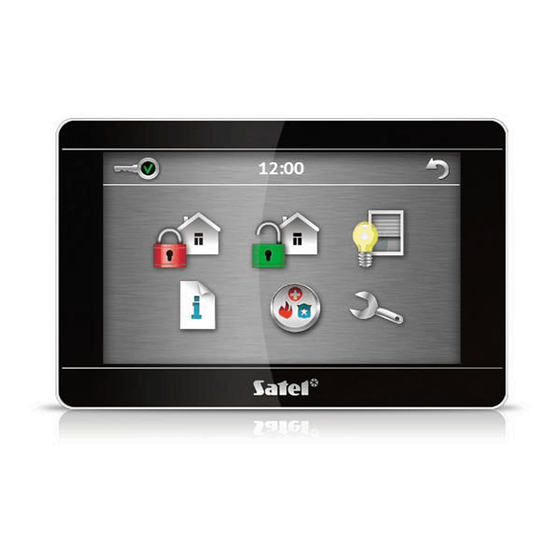

KEYPAD
The alarm system should be installed by qualified personnel.
Disconnect power before making any electrical connections.
Warning
This is a Class A product. In a domestic environment this product may cause radio frequency
interference in which case the user may be required to take adequate measures.
The INT-TSH keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.

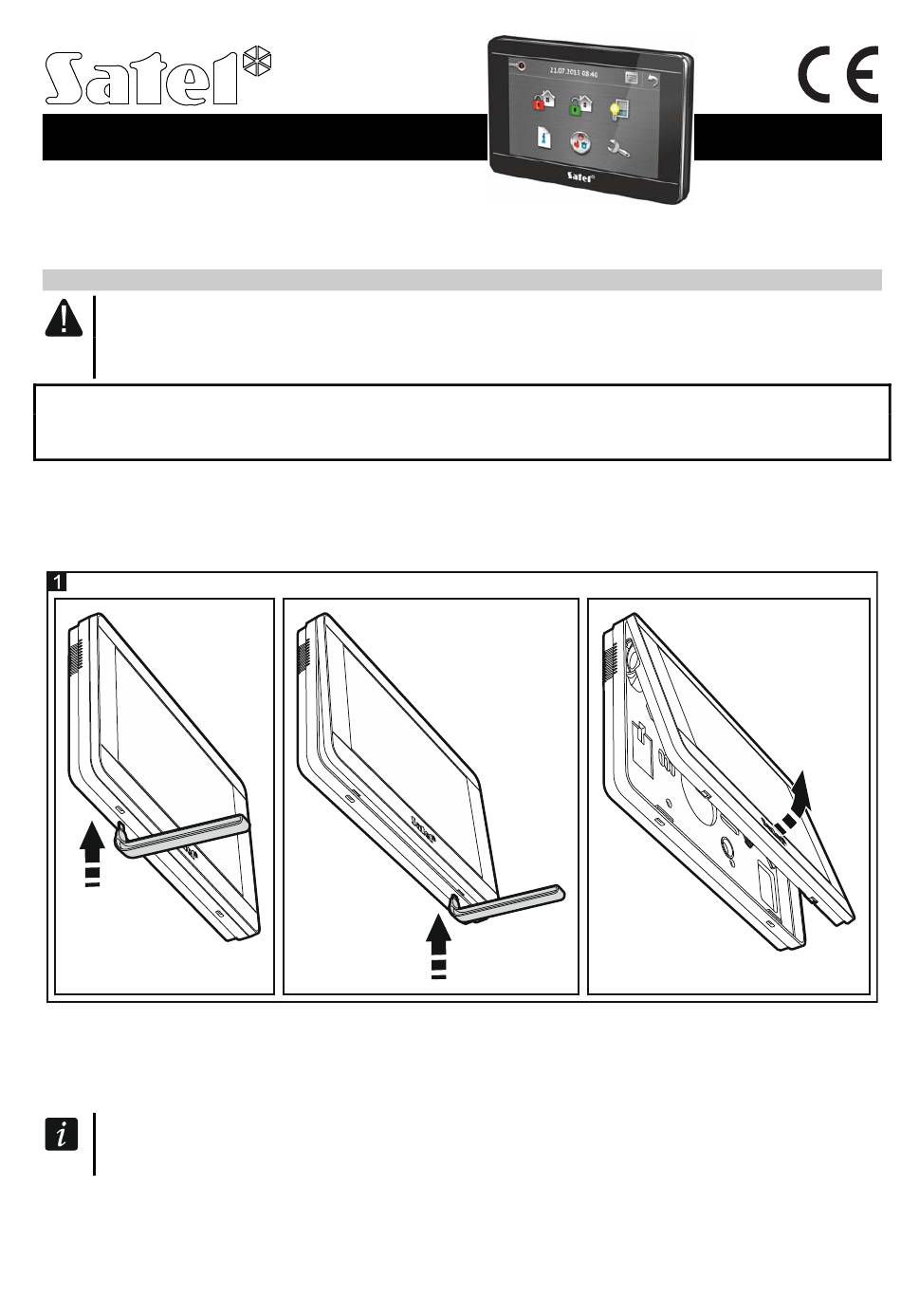

1. Open the keypad enclosure (Fig. 1). The enclosure opening tool, shown in the illustration, is
included in the keypad delivery set.
2. Place the enclosure base on the wall and mark the location of mounting holes.
3. Drill the holes for wall plugs (screw anchors).
4. Install in the wall a junction box to which cables will be connected and in which a ferrite ring will be
placed.
The purpose of the ferrite ring delivered with the keypad is to decrease the electromagnetic
interference. Make sure that the ferrite ring is positioned as close as possible to the enclosure.
5. Wrap the cables around the ferrite ring, but no more than 3 turns per cable.
6. Pass the cables through the opening in the enclosure base.
7. Using wall plugs (screw anchors) and screws, fasten the enclosure base to the wall.
®
Quick installation guide
Full installation manual is available on www.satel.eu
int-tsh_sii_en 10/15
