- Page 1 10/13 Keypad INT-TSG Brief User Manual Firmware version 1.00 SATEL sp. z o.o. • ul. Schuberta 79 • 80-172 Gdańsk • POLAND tel. 58 320 94 00 • info@satel.pl www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-

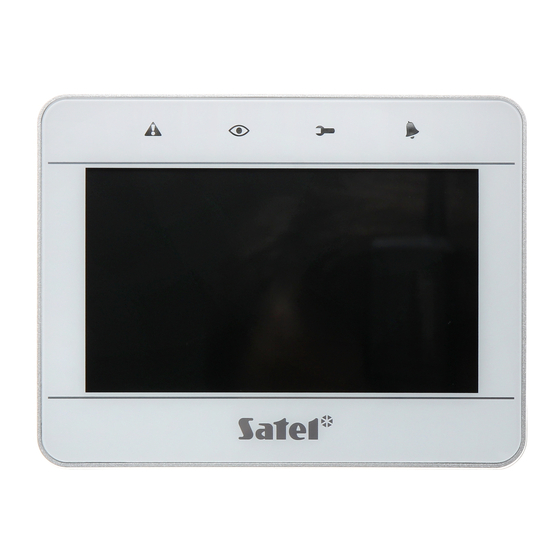

Page 3: Keypad Description
SATEL Ltd. is a manufacturer of a wide variety of dedicated devices for use in alarm systems. Additional information can be found on our website www.satel.eu or at points of sale offering our products. -
Page 4: Touch Screen
INT-TSG SATEL 1.2 Touch screen The screen enables communication between the user and the alarm system. It displays information about the system status, while allowing you to operate and program the alarm system, as well as control the home automation equipment. Intuitive icon-based menu makes the everyday use easier. - Page 5 SATEL INT-TSG Icons illustrating the state of outputs are shown in the table below. Icon Color Output status grey deactivated activated Additional messages, connected with occurrence of specific events (e.g. arming or disarming, auto-arming delay countdown, entry / exit delay countdown, alarm, etc.), may also appear on the status screen.
- Page 6 INT-TSG SATEL 1.2.2 Main screen Presented on the main screen are: date and time in the format defined by the installer (if some specific events occur, other messages can be displayed, instead of the date and time, e.g. entry or exit delay countdown, alarm messages, etc.);...
- Page 7 SATEL INT-TSG 1.2.3 Authorization screen Some screens and functions may only be available after user authorization. The authorization is code based. Use the number keys to enter the code and then confirm, touching the icon. By default, the following codes are preprogrammed in the control panel:...
- Page 8 INT-TSG SATEL Icon Function Enables arming in mode “full”. Enables arming in mode “full + bypasses”. Enables arming in mode “without interior”. Enables arming in mode “without interior and without entry delay”. 1.2.5 “Alarm clearing / Disarming” screen The “Alarm clearing / Disarming” screen will be displayed after you touch the icon on the main screen, when there is an alarm (alarm memory) and at least one partition is armed.
- Page 9 SATEL INT-TSG 1.2.6 “Control” screen The “Control” screen will be displayed on touching the icon on the main screen, if macro commands are assigned to at least two groups of macro commands. It presents the groups of macro commands. Up to 4 groups can be programmed by the installer. Touching a group icon will display macro commands assigned to that group.
- Page 10 INT-TSG SATEL The keypad can be configured by the installer so as to start the function of output control from the terminal on touching the icon (touching the icon for about 3 seconds may be required). 1.2.7 “System status” screen...
- Page 11 SATEL INT-TSG Icon Partition status disarmed – there are no violated zones disarmed – there are violated zones exit delay countdown is running – remaining time longer than 10 seconds exit delay countdown is running – less than 10 seconds remained armed –...
- Page 12 INT-TSG SATEL violated trouble – long violation trouble – no violation bypassed tamper alarm alarm tamper alarm memory alarm memory tamper masking masking memory 1.2.8 “Emergency” screen...
- Page 13 SATEL INT-TSG Icon Function Touching for 3 seconds will trigger the fire alarm. Touching for 3 seconds will trigger the medical (auxiliary) alarm. Touching for 3 seconds will trigger the panic alarm. The installer defines, whether the loud panic alarm (with a loud alarm signal) or the silent one (without a loud signal) will be triggered.
-
Page 14: Sound Signaling
LCD keypad with text menu. The method of using such a keypad is described in the control panel programming / user manuals (electronic versions of the manuals are available on the www.satel.eu website). 1.3 Sound signaling The installer can disable the sound signaling. -
Page 15: Operating The Alarm System
SATEL INT-TSG – ending the function and exiting the user menu after confirmation of the data entered. 1 long beep – signaling of: – violated / bypassed zones when arming; – fault of the vibration detector (10. 24 type zone was not violated during the H VIBRATION vibration detector test run upon starting the arming procedure). - Page 16 INT-TSG SATEL The installer can prepare macro commands to simplify the arming procedure (especially, for the system subdivided into many partitions). 2.1.1 Full arming of all partitions 1. Touch the icon on the main screen. The “Arming” screen will be displayed.
- Page 17 SATEL INT-TSG 2.1.4 Denial of arming The installer can program the control panel so that the arming procedure could not be started, if: – a zone is violated in the partition; – there is a trouble in the system (including tamper);...
-
Page 18: Viewing The Event Log
INT-TSG SATEL Touching the icon will display the screen on which the partitions are to be selected. Partitions are presented by means of the accordingly labeled fields. The selection is made by touching the fields. After you touch the field, the icon will be displayed in it (the full partition name will appear at the screen bottom). - Page 19 SATEL INT-TSG 4. Touch the icon. The screen presenting event types will be displayed. 5. Touch the event types which are to be shown, and then touch the icon. You will be brought back to the previous screen, on which an extra icon will appear.
