int-tsg_oi_en 05/15
Keypad
INT-TSG
Firmware version 1.03
INTEGRA / INTEGRA Plus
Brief System User Manual
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-TSG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel INT-TSG

Summary of Contents for Satel INT-TSG

  • Page 1 05/15 Keypad INT-TSG Firmware version 1.03 INTEGRA / INTEGRA Plus Brief System User Manual SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

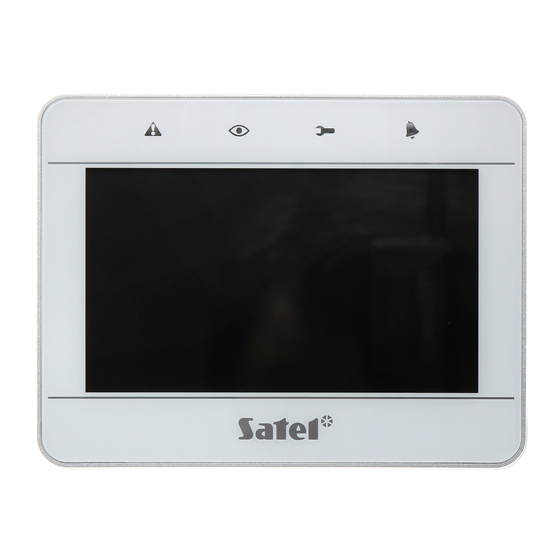

  • Page 3: Keypad Description

    SATEL Ltd. is a manufacturer of a wide variety of dedicated devices for use in alarm systems. Additional information can be found on our website www.satel.eu or at points of sale offering our products.

  • Page 4: Touch Screen

    INT-TSG SATEL 1.2 Touch screen The screen enables communication between the user and the alarm system. It displays information about the system status, while allowing you to operate and program the alarm system, as well as control the home automation equipment. Intuitive icon-based menu makes the everyday use easier.
  • Page 5 SATEL INT-TSG The status screen is displayed 60 seconds after the last operation performed on the keypad screen, unless the terminal is running (see p. 13). When the terminal is displayed, the status screen may appear later or even not appear at all (e.g. when the service menu is open).
  • Page 6 INT-TSG SATEL Status screen background A single picture or a slide show can be displayed as the status screen. The status screen background is to be configured by the installer. 1.2.3 Main screen Presented on the main screen are:  date and time in the format defined by the installer (if some specific events occur, other messages can be displayed, instead of the date and time, e.g.
  • Page 7 SATEL INT-TSG Displays the “Advanced” screen (see p. 11). 1.2.4 Authorization screen Some screens and functions may only be available after user authorization. The authorization is code based. Use the number keys to enter the code and then confirm, tapping the icon.
  • Page 8 INT-TSG SATEL Icon Function Enables arming in mode “full”. Enables arming in mode “full + bypasses”. Enables arming in mode “without interior”. Enables arming in mode “without interior and without entry delay”. 1.2.6 “Alarm clearing / Disarming” screen The “Alarm clearing / Disarming” screen will be displayed after you tap the icon on the main screen, when there is an alarm (alarm memory) and at least one partition is armed.
  • Page 9 SATEL INT-TSG icon will display macro commands assigned to that group. Up to 16 macro commands can be assigned to one group. If macro commands are assigned only to one group, tapping the icon will display the macro commands at once. In the keypad with factory settings, two macro commands are programmed and assigned to the first group (the figure below shows the screen to be displayed on a keypad with factory settings).
  • Page 10 INT-TSG SATEL 1.2.8 “System status” screen Icon Function Displays the “Partition status” screen. Displays the “Zone status” screen. Displays the “Troubles” screen, on which the current troubles are presented (the installer can configure the control panel to display the troubles until cleared).
  • Page 11 SATEL INT-TSG Icon Partition status disarmed – there are no violated zones disarmed – there are violated zones exit delay countdown is running – remaining time longer than 10 seconds exit delay countdown is running – less than 10 seconds remained armed –...
  • Page 12 INT-TSG SATEL trouble – long violation trouble – no violation bypassed tamper alarm alarm tamper alarm memory alarm memory tamper masking masking memory 1.2.9 “Emergency” screen Icon Function Tapping and holding for 3 seconds will trigger the fire alarm.
  • Page 13 SATEL INT-TSG Tapping and holding for 3 seconds will trigger the medical (auxiliary) alarm. Tapping and holding for 3 seconds will trigger the panic alarm. The installer defines, whether the loud panic alarm (with a loud alarm signal) or the silent one (without a loud signal) will be triggered.
  • Page 14 INT-TSG SATEL Backlight Intensity of the screen backlight can be controlled within the 10-100% range. In the night hours, which can be specified, the backlight intensity can be different. Volume You can define the volume level of sounds generated: when operating the keypad (tapping the keys, confirmation of performed operation, etc.).

  • Page 15: Sound Signaling

    LCD keypad with text menu. The method of using such a keypad is described in the control panel programming / user manuals (electronic versions of the manuals are available on the www.satel.eu website). 1.3 Sound signaling The installer can disable the sound signaling.

  • Page 16: Operating The Alarm System

    INT-TSG SATEL 1 long beep – signaling of: – violated / bypassed zones when arming; – fault of the vibration detector (10. 24 type zone was not violated during the H VIBRATION vibration detector test run upon starting the arming procedure).
  • Page 17 SATEL INT-TSG 2.1.1 Full arming of all partitions 1. Tap on the main screen. The “Arming” screen will be displayed. 2. Tap . The selection screen will be displayed (if you have only access to 1 partition from the given keypad, the partition arming procedure will start immediately).
  • Page 18 INT-TSG SATEL “1=Arm” - on tapping the key, the system will be armed despite the violated zone or trouble (forced arming); “2=Check” - on tapping the key, you will be able to view the list of violated / bypassed zones or troubles. When viewing the list of violated / bypassed zones, you can bypass / unbypass the currently displayed zone by tapping key.

  • Page 19: Viewing The Event Log

    SATEL INT-TSG 2.3 Alarm clearing (without disarming) on the main screen. Depending on the system state: There is an alarm (alarm memory) and none of the partitions is armed The alarm will be cleared. II. There is an alarm (alarm memory) and at least 1 partition is armed The "Alarm clearing / Disarming"...

  • Page 20: Manual Update History

    INT-TSG SATEL 3. Manual update history Manual version The list of changes 02/14  Information on the verbose mode and how the operating mode can be changed has been added (p. 2).  Note about screen turning off after 10 minutes of keypad inactivity has been added (p.
