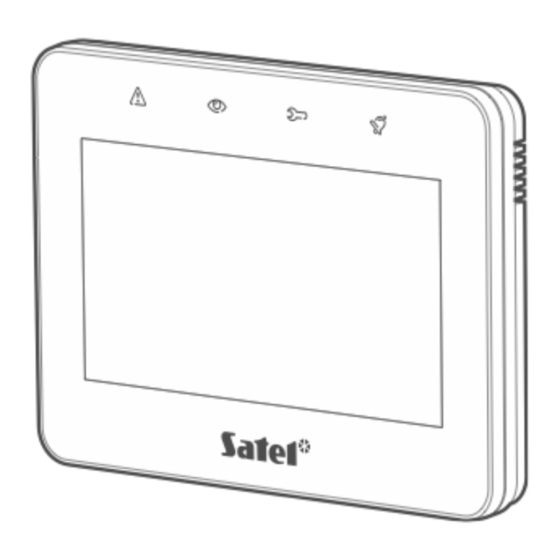

- Page 1 Keypad INT-TSG2R Firmware version 2.01 USER MANUAL – INTEGRA int-tsg2r_oi_en 03/24 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 This is a Class A product. In a domestic environment this product may cause radio frequency interference. Hereby, SATEL sp. z o.o. declares that the radio equipment type INT-TSG2R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.satel.pl/ce...
-
Page 3: Table Of Contents
CONTENTS Introduction ........................3 LED indicators ........................3 Using the touch screen ..................... 3 Using the MIFARE proximity card ................... 6 ® Screensaver ........................6 Slideshow ........................7 Trigger the panic alarm ....................7 User screens ........................7 Additional screens ......................8 Status bar ......................... - Page 4 INT-TSG2R SATEL 11.5.5 Searching for zones ..................22 11.6 “Outputs” screen ....................... 22 11.6.1 Output control ....................23 11.7 “Troubles” screen ...................... 23 11.8 “Events” screen ......................23 11.8.1 Filtering the event list by partitions ..............23 11.8.2 Filtering the event list by types ................ 23 11.9 “Users”...
-
Page 5: Introduction
This manual contains basic information on how to use the INT-TSG2R keypad with factory default settings in the INTEGRA alarm system. The functions available in the user menu of the keypad allow you to control your alarm system, regardless of its configuration. In addition, the user screens can be prepared by the installer for customization of the keypad functionality. - Page 6 INT-TSG2R SATEL • user menu created by SATEL. Use the gestures described below. Tap on an item on the screen. Tap and hold Tap on an item on the screen and hold for 3 seconds. Swipe up / down Tap the screen and slide your finger up or down to: •...
- Page 7 SATEL INT-TSG2R Swipe right / left Tap the screen and slide your finger right or left to swipe the screen right / left (go to the previous / next screen). When the screensaver is active, swipe right / left to start / end the slideshow.
-
Page 8: Using The Mifare ® Proximity Card
For security reasons, we recommend using DESFire cards with encrypted card numbers. To write encrypted numbers to cards, the SO-PRG programmer and the CR SOFT program by SATEL are required. If the card’s factory serial number (CSN) is used as the card number, there is no need to program the cards but such cards are not secured against copying. -
Page 9: Slideshow
SATEL INT-TSG2R The installer can add to the screen additional widgets that will indicate the alarm system status (see “Widgets” p. 9). When the screensaver is displayed, you can: • tap the screen to view the user screen, • swipe left to start the slideshow. -
Page 10: Additional Screens
For this reason, the additional screens may be used to display site plans. If pictures other than the ones offered by SATEL are to be displayed, the installer must save them on a memory card and install the card in the keypad. -
Page 11: Status Bar
SATEL INT-TSG2R Fig. 3. Screen with a site plan (example). 8. Status bar The status bar is displayed on the top of the user screen and the additional screen. It includes: • screen title (optionally, if added by the installer), •... -
Page 12: Zone State
Zone state The widget displays the zone state represented by either: • icons selected by SATEL (indicator) – different states are displayed, • text messages (text) – messages inform only about normal and violated states, • icons selected by the installer (icon) – only normal and violated states are displayed. -
Page 13: Output State
The widget displays the output state represented by either: • icons selected by SATEL (indicator), • text messages (text), • icons selected by the installer (icon). The icons selected by SATEL are described in the table below. Icon Output status deactivated activated “MONO switch”... -
Page 14: Macro
INT-TSG2R SATEL Macro The icon for the widget is selected by the installer. Tap the widget to run a macro command. The macro command is a sequence of actions to be performed by the control panel. Macro commands are created by the installer. -
Page 15: On-Screen Keypad
SATEL INT-TSG2R 10. On-screen keypad The on-screen keypad is displayed when you are required to enter a code e.g. to access the user menu. You may be required to enter the code to access the user screen or the additional screen or to run a function with a widget. -
Page 16: User Menu Home Screen
INT-TSG2R SATEL 11.1 User menu home screen Fig. 5. User menu home screen. The following functions are available on the user menu home screen. tap to go to the “Partitions” screen (p. 17). tap to go to the “Zones” screen (p. 20). -
Page 17: Terminal
SATEL INT-TSG2R Fig. 6. QWERTY keyboard: letter keys mode. The text entered is displayed in the field above the keys. In addition to the typing keys, the following special keys are available. tap to switch the keyboard to the uppercase mode. -
Page 18: Data Editing By Using The Terminal
INT-TSG2R SATEL Fig. 8. Terminal. 11.3.1 Data editing by using the terminal The editing method depends on the type of data. Having completed the editing, tap save the changes. If you want to exit the function without saving the changes, tap Selection from the single-choice list In the lower line of the display, the currently selected item is presented. -
Page 19: Partitions" Screen
SATEL INT-TSG2R key – to the left. The key moves the cursor to the right, and the deletes the character on the left side of the cursor. 11.4 “Partitions” screen On this screen you can see the list of the partitions that you can operate by means of the keypad. -
Page 20: Arming
INT-TSG2R SATEL If you tap the screen close to the bottom edge and swipe up, the buttons with the icons will appear at the bottom of the screen: tap to increase the size of the icons/names on the list. tap to decrease the size of the icons/names on the list. -
Page 21: Two-Code Disarming
SATEL INT-TSG2R 3. Tap the button with the icon. If there was an alarm condition in the partition, disarming will clear the alarm. 11.4.4 Two-code disarming When two users are required to enter the code in order to disarm a partition, follow these steps: 1. -
Page 22: Filtering The Partition List
INT-TSG2R SATEL 5. Tap the button with the icon. 11.4.7 Filtering the partition list 1. Tap the icon. The buttons with filtering criteria will appear. 2. Tap the buttons with the filtering criteria that you want to use. You can tap any number of buttons. -
Page 23: Zone Inhibiting
SATEL INT-TSG2R The numbers displayed next to the following icons indicate: number of zones in normal state. number of violated zones. number of zones that triggered alarm. number of bypassed zones. number of tampered zones. If you tap the screen close to the bottom edge and swipe up, the buttons with the icons will appear at the bottom of the screen: tap to increase the size of the icons/names on the list. -
Page 24: Searching For Zones
INT-TSG2R SATEL 2. Tap the buttons with the filtering criteria that you want to use. You can tap any number of buttons. 3. Tap the button with the icon. The zones that meet the selected criteria will be displayed. 11.5.5 Searching for zones 1. -
Page 25: Output Control
SATEL INT-TSG2R tap to hide the buttons. 11.6.1 Output control Tap the controllable output to change its state. The controllable outputs are the outputs programmed as “MONO switch” / “BI switch” / “Remote switch” / “Shutter up” / “Shutter down”. You can recognize these outputs by the icon (see description of the “Output state”... -
Page 26: Users" Screen
INT-TSG2R SATEL 3. Tap the button with the icon. The events that meet the selected criteria will be displayed. 11.9 “Users” screen On this screen you can see the list of users. The icon displayed below the user name provides additional information about the user. The icons are described in the table below. -
Page 27: Removing A User
SATEL INT-TSG2R 11.9.2 Removing a user 1. Tap the user you want to remove. 2. Tap the icon. The buttons will appear at the bottom of the screen. 3. Tap the button with the icon. 11.9.3 Editing a user 1. Tap the user whose settings you want to edit. - Page 28 / ABAX system. GSM IMEI/v/sig. – tap to display the information on the level of GSM signal, IMEI number and version of the telephone. The function available in the INTEGRA 128-WRL control panel. IP/MAC/IMEI/ID – tap to display the information related to the ETHM-1 Plus / ETHM-1 / INT-GSM modules.
-
Page 29: Messaging Test
SATEL INT-TSG2R 11.10.1 Messaging test 1. Tap the “Messaging test” function. The terminal will be displayed. 2. Enter the consecutive number of the phone to be notified. 3. Tap 4. Enter the consecutive number of the voice message to be played back. -
Page 30: Review Of Test Results
INT-TSG2R SATEL 7. Depending on the type of tested detector: – magnetic contact – open and close the door or window protected by the magnetic contact, – motion detector – walk through the coverage area of the detector, – other detectors – follow the manufacturer's directions for the detector testing. - Page 31 “120: Thermostat” type outputs. The function available in the INTEGRA Plus control panel. tap to configure the partition timer. tap to temporarily disable the expansion module tamper supervision.
- Page 32 INT-TSG2R SATEL 11.11.1 “Keypad” screen Fig. 14. “Keypad” screen. The functions available on the “Keypad” screen are described below. tap to set the screen brightness (see “Setting the screen brightness” p. 30). tap to set the keypad volume (see “Setting the keypad volume” p. 31).
- Page 33 SATEL INT-TSG2R screen brightness in the nighttime when the keypad is not used. beginning of the nighttime. screen timeout in the nighttime (if you set 0, the screen will not be turned off). Tap the button with the icon to confirm changes. Tap the button with the icon to cancel changes.
-
Page 34: Others" Screen
INT-TSG2R SATEL 11.12 “Others” screen Fig. 15. “Others” screen (example). The functions available on the “Others” screen are described below. tap to see which zones triggered an alarm. tap to reset the system after the verified alarm (only after the system is reset, it will be possible to arm the system again). -
Page 35: Service Menu
Start DWNL-CSD – tap when you want to start the CSD communication with the DLOADX program via the control panel GSM communicator. The function available in the INTEGRA 128-WRL control panel. Start DWNL-GPRS – tap when you want to start the GPRS communication with the DLOADX program via the control panel GSM communicator. - Page 36 INT-TSG2R SATEL Fig. 16. Service menu. The icons in the top right corner allow you to: tap to display/hide the terminal (the terminal allows you to use the service menu in the same way as from the LCD keypad with text menu).
