8

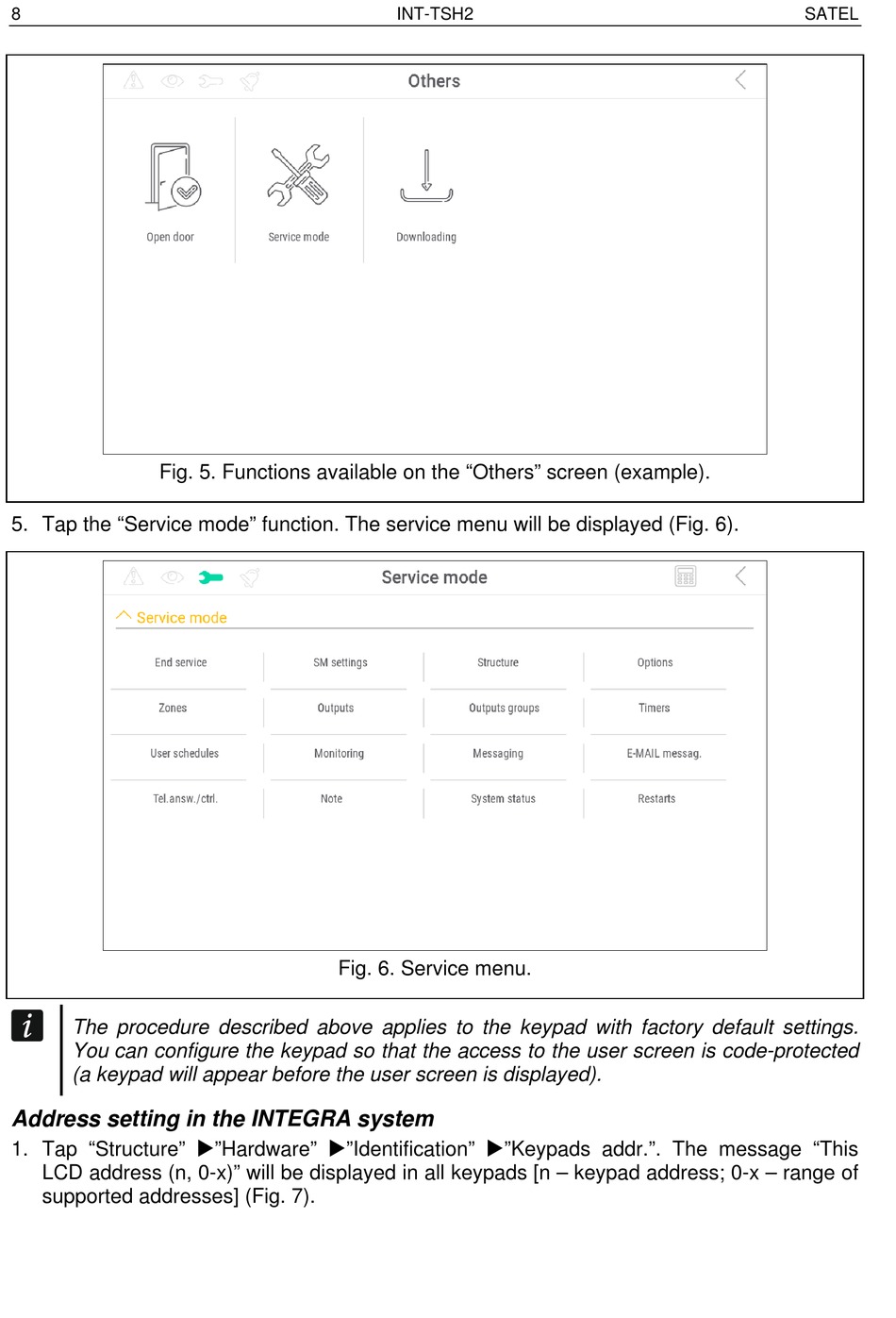

Fig. 5. Functions available on the "Others" screen (example).
5. Tap the "Service mode" function. The service menu will be displayed (Fig. 6).
The procedure described above applies to the keypad with factory default settings.
You can configure the keypad so that the access to the user screen is code-protected
(a keypad will appear before the user screen is displayed).
Address setting in the INTEGRA system
1. Tap "Structure" "Hardware" "Identification" "Keypads addr.". The message "This
LCD address (n, 0-x)" will be displayed in all keypads [n – keypad address; 0-x – range of
supported addresses] (Fig. 7).
INT-TSH2
Fig. 6. Service menu.
