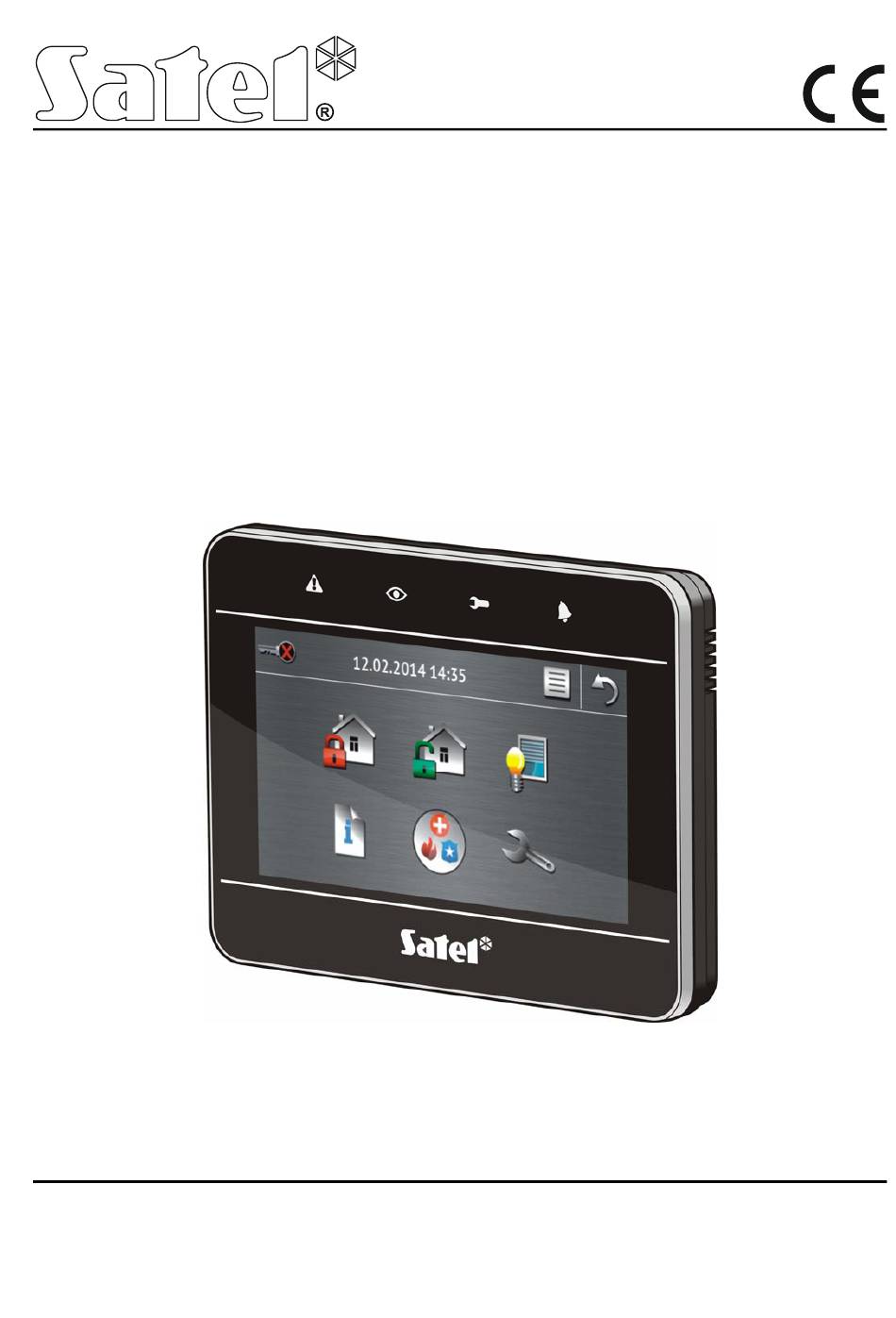

int-tsg_i_en 06/15

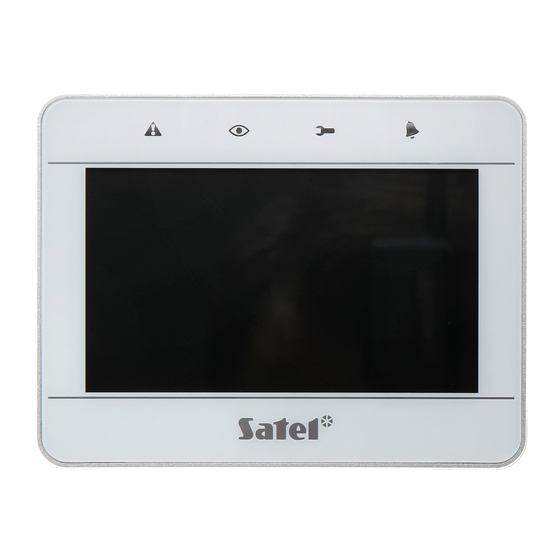

Keypad
INT-TSG
Installer Manual
Firmware version 1.03
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-TSG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel INT-TSG

Summary of Contents for Satel INT-TSG

  • Page 1 06/15 Keypad INT-TSG Installer Manual Firmware version 1.03 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

  • Page 3: Table Of Contents

    CONTENTS Introduction........................2 Features .......................... 2 Installation and hook-up ....................2 Description of terminals ..................... 4 Addressing ........................4 Keypad connected to INTEGRA / INTEGRA Plus control panel........ 4 4.1.1 Programming keypad address by means of service function ......4 Keypad connected to VERSA / VERSA Plus control panel ........

  • Page 4: Introduction

    3. Installation and hook-up Disconnect power before making any electrical connections. The INT-TSG keypad is designed for indoor installation. The place of installation should be readily accessible to the system users. 1. Open the keypad enclosure (see Fig. 1). The enclosure opening tool, shown in the illustration, is included in the keypad delivery set.
  • Page 5 SATEL INT-TSG 4. Pass the cables through the opening in the enclosure base. 5. Using wall plugs (screw anchors) and screws, fasten the enclosure base to the wall. 6. Connect the DTM, CKM and COM keypad terminals to the appropriate terminals of the control panel communication bus (see Fig.

  • Page 6: Description Of Terminals

    INT-TSG SATEL 8. Connect the supply wires to the KPD and COM terminals. The keypad can be powered directly from the control panel, from expander with power supply or from a power supply unit. 9. Place the front panel onto the catches, snap close the enclosure.

  • Page 7: Keypad Connected To Versa / Versa Plus Control Panel

    SATEL INT-TSG the keypad (the service mode menu will be displayed on the keypad with the lowest address). 4.2 Keypad connected to VERSA / VERSA Plus control panel An address from within the 0 do 5 range must be set on the keypad.

  • Page 8: Keypad Connected To Integra / Integra Plus Control Panel

    INT-TSG SATEL 5.1 Keypad connected to INTEGRA / INTEGRA Plus control panel The identification function can be run by using:  LCD keypad: S S H I LCD ERVICE MODE TRUCTURE ARDWARE DENTIFICATION KEYPADS . How to enter the service mode, refer to section on programming keypad address by means of the service function (p.

  • Page 9: Removing The Microsd Card

    SATEL INT-TSG 1. Open the keypad enclosure (see: Fig. 1). 2. Insert the card into its slot (see Fig. 3) and push until it clicks into place. The card contacts should be directed toward the display. 3. Close the keypad enclosure.
  • Page 10 INT-TSG SATEL Date/Time format – the way the time and date are displayed on the keypad main screen and on the terminal. Alarm messages Partitions [Part.alarm msg.] – if this option is enabled, messages on partition alarms will be displayed (they contain the name of partition).
  • Page 11 SATEL INT-TSG Show code entering [Show code ent.] – with this option enabled, entering the code is presented on the keypad display by asterisks. Fig. 4. D X program: parameters and options of keypad connected to INTEGRA / LOAD INTEGRA Plus control panel.
  • Page 12 INT-TSG SATEL Show viol. zones [Zone violation] – with this option enabled, violating the CHIME signal triggering zone result additionally in the zone name being displayed. Auto-Arm delay countdown [Auto-arm delay] – with this option enabled, the auto-arm delay countdown in partition is signaled acoustically.

  • Page 13: State Inspections

    SATEL INT-TSG 7.1.2 State inspections Fig. 5. D X program: “State inspections” tab. LOAD 1 – zone state [Zones] – if this option is enabled, you can inspect the zone state without entering the code: – after tapping on the “System status” screen, –...

  • Page 14: User Functions Definition

    INT-TSG SATEL 7 – trouble status [Troubles] – if this option is enabled, you can view the current troubles without entering the code: – after tapping on the “System status” screen, – after tapping and holding for 3 seconds on the terminal.
  • Page 15 SATEL INT-TSG Icon – icon of a group of macro commands. In order to display the list of available icons, click button. Fig. 6. D X program: “Groups” tab. LOAD Macro available on the status screen – if this option is enabled, the group of macro commands is available from the status screen, i.e.
  • Page 16 Reset – click to delete all the defined macro commands (and restore factory default settings). Export to file – click to export defined macro commands to a file. The file with macro commands can be imported to another INT-TSG keypad. Import from file – click to import macro commands from a file.
  • Page 17 SATEL INT-TSG Authorization required – if this option is enabled, the macro command will only be run after user authorization by using a code. The code entered in the “Code” field will be ignored. Disabled if armed – if this option is enabled, the macro command will not be available, when any of the partitions operated by the keypad is armed.
  • Page 18 INT-TSG SATEL Outputs ON – select the outputs which are to be activated (double-click on the field designated by the output number). Outputs OFF – select the outputs which are to be deactivated (double-click on the field designated by the output number).

  • Page 19: Status Screen

    SATEL INT-TSG 8. If the macro command is not to be available, when any of the partitions operated by the keypad is armed, enable the D option. ISABLED IF ARMED 9. If the macro command is to be run instantly on tapping the icon of macro command group,...
  • Page 20 INT-TSG SATEL Fig. 8. D X program: “Status screen” tab (keypad connected to INTEGRA / INTEGRA LOAD Plus control panel). The status screen is displayed automatically after the keypad is idle for 60 seconds. This rule does not apply if the terminal is running. In such a case, the status screen may be displayed later or even will not be displayed at all (e.g.

  • Page 21: End-Of-Line Resistance

    SATEL INT-TSG – zone status by means of messages (select individual zones whose status will be displayed, and define the content and color of messages for normal state and for violation, because only these two states are presented in the form of message), –...

  • Page 22: Keypad Connected To Versa / Versa Plus Control Panel

    INT-TSG SATEL programmed for the R1 resistor (the value of one resistor must not be less than 500  ). By default, the following values are programmed: R1 = 1,1 k  ; R2 = 1,1 k  . The resistor value for Single EOL configuration is the sum of R1 and R2 resistors.
  • Page 23 SATEL INT-TSG Fig. 10. D X program: parameters and options of keypad connected to VERSA / VERSA LOAD Plus control panel. Quick control – if this option is enabled, you can control the outputs without entering the code: – after tapping on the main screen, –...
  • Page 24 INT-TSG SATEL – after tapping and holding for 3 seconds on the terminal. Alarm messages Partitions [Part.alarm msg.] – if this option is enabled, messages on partition alarms will be displayed (they contain the name of partition). Zones [Zone alarm msg.] – if this option is enabled, messages on alarms from zones will be displayed (they contain the name of zone).

  • Page 25: Status Screen

    SATEL INT-TSG Photo frame – if this option is enabled, the following will be displayed after 10 minutes of keypad inactivity: slide show – if there are at least two pictures on the memory card and the value of parameter is different from 0, HANGE PICTURE EVERY clock –...

  • Page 26: Updating The Keypad Firmware

    INT-TSG SATEL later or even will not be displayed at all (e.g. when the service menu is open). The following information can be displayed on the status screen: – any text defined by the installer, – partition status by means of symbols (select individual partitions whose status will be displayed), –...

  • Page 27: Specifications

    SATEL INT-TSG 8. Open the keypad enclosure and insert the microSD card into its slot. 9. Tap icon on the main screen. The “Advanced” screen will be displayed. 10. Tap . The authorization screen will be displayed. 11. Enter the service code and tap .

  • Page 28: Manual Update History

    INT-TSG SATEL 10. Manual update history Manual version The list of changes  02/14 Information on the required version of D X program has been modified (p. 2). LOAD  Information on the enclosure opening tool has been added (p. 2).
