Summary of Contents for Extron electronics DTP HDMI 301

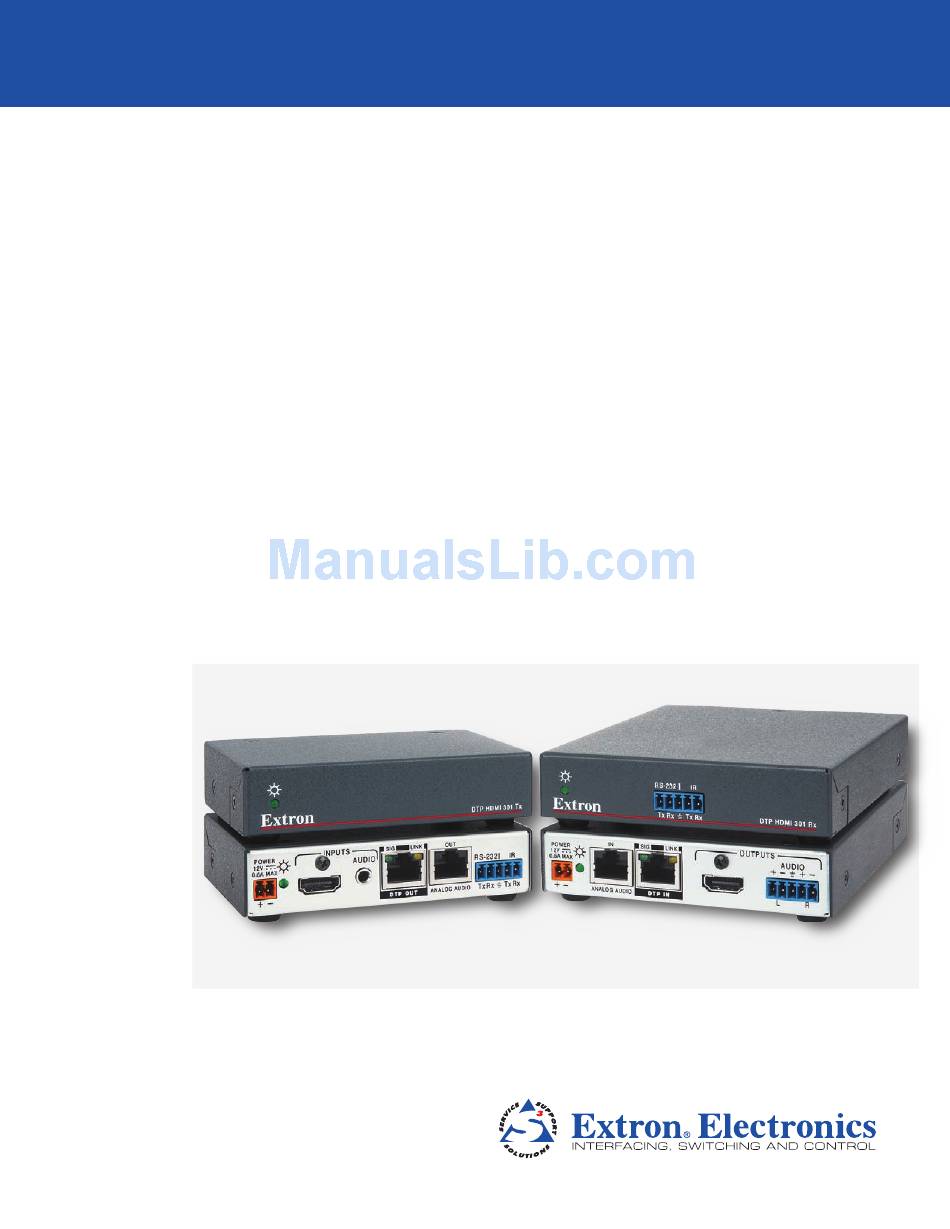

- Page 1 User Guide DVI & HDMI Extenders DTP HDMI 301 HDMI Twisted Pair Extender 68-2156-01 Rev. A 12 11...
- Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and mainte- equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third nance (servicing) instructions in the literature provided with the equipment.
- Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 TIP: A tip provides a suggestion to make working with the application easier. WARNING: A warning warns of things or actions that might cause injury, death, or other severe consequences. Copyright © 2011 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.
-
Page 5: Table Of Contents
Introduction ..........Reference Information ......About this Guide ..........1 Specifications ..........12 About the DTP HDMI 301 Tx/Rx Transmitter Part Numbers and Accessories ......15 and Receiver ........... 1 Transmitter/receiver Pair Part Numbers ..15 TP Cable Advantages ........2 Included Parts .......... - Page 6 DTP HDMI 301 • Contents...
-
Page 7: Introduction
This guide describes the Extron DTP HDMI 301 High Definition Multimedia Interface (HDMI ™ Extender, which consists of a DTP HDMI 301 Tx transmitter and a DTP HDMI 301 Rx receiver. This guide describes how to install, operate, and configure the transmitter and receiver. -
Page 8: Tp Cable Advantages
Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or ™ STP201 cable to link the transmitter and receiver. The DTP HDMI 301 Tx/Rx does not work properly with these cables. Control Communications The RS-232 and IR communications are via a passive pass-through only; the transmitter and receiver do not generate or respond to these signals. -
Page 9: Installation And Operation
Installation and Operation This section describes the installation and the operation of the DTP HDMI 301 Tx/Rx Extender, including: Mounting the Transmitter or Receiver • • Connections Operation • Mounting the Transmitter or Receiver CAUTION: Installation and service must be performed by authorized personnel only. - Page 10 2-pole connector or the power input connector on the receiver (item ). See “Power supply wiring“ to wire the connector. NOTE: One power supply can power both units. A power supply is included with the transmitter. DTP HDMI 301 • Installation and Operation...
-
Page 11: Receiver Connections

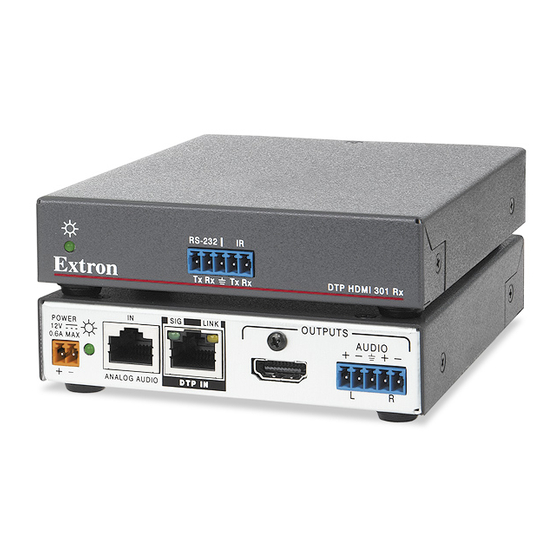

DTP HDMI 301 Rx Figure 3. DTP HDMI 301 Rx Rear Panel Connectors DTP and Analog Audio Input RJ-45 connectors — Connect one end of the one or two separate TP cables from the transmitter output connectors to these RJ-45 female connectors. - Page 12 2-pole connector or the power input connector on the transmitter (item “Power supply wiring“ to wire the connector. NOTE: One power supply can power both units. A power supply is included with the transmitter. DTP HDMI 301 • Installation and Operation...
-
Page 13: Pin Assignments And Wiring
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length. DTP HDMI 301 • Installation and Operation... -
Page 14: Tp Cable Termination
2. Connect the opposite end of the cable into the DTP port on the unpowered unit. If the DTP Link LED and the Power LED on the unpowered unit are lit, the connection is correct. DTP HDMI 301 • Installation and Operation... - Page 15 Feed each individual wire into the appropriate slot of the RJ-45 connector and crimp the cable in the normal manner, folding the tangs at the end of the connector over the shielded tape (see figure 10). Crimped Connector Figure 10. Crimped RJ-45 Connector DTP HDMI 301 • Installation and Operation...
-
Page 16: Power Supply Wiring
6 for details. NOTE: Do not tin the power supply leads before installing them in the connector. Tinned wires are not as secure in the connector and could be pulled out. DTP HDMI 301 • Installation and Operation... -
Page 17: Operation
If the other devices are not turned on before the video source, the image may not appear. DTP HDMI 301 • Installation and Operation... -
Page 18: Reference Information
Specifications NOTES • This product consists of a transmitter (DTP HDMI 301 Tx) and a receiver (DTP HDMI 301 Rx), sold separately, with twisted pair cables linking the transmitter and receiver. • *Appropriate HDMI to DVI-DI cables or adapters are required for DVI signal input/output Video Maximum data rate ...... -
Page 19: Audio Output
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz IR control pin configuration .... 3 = GND, 4 = IR Tx, 5 = IR Rx DTP HDMI 301 • Reference Information... - Page 20 **CE and FCC testing is conducted with STP (shielded twisted pair) cable. MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTES • All nominal levels are at ±10%. • Specifications are subject to change without notice. DTP HDMI 301 • Reference Information...
-
Page 21: Part Numbers And Accessories
60-1212-12 DTP HDMI 301 Rx receiver 60-1212-13 Included Parts These items are included with in each DTP HDMI 301 transmitter and receiver: Included parts Part Number DTP HDMI 301 Tx Transmitter 12 VDC, 1 A external power supply with 3.5 mm, 2-pole captive... -
Page 22: Mounting Accessories
Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as use of power strips). DTP HDMI 301 • Reference Information... - Page 23 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
