10.4.12 Installing single conical spring mechanical seal

Equipment and tools from the GEA Hilge assembly tool kit
•
•
•
Installing single conical spring mechanical seal
Wet the stationary ring (counter ring) of the
mechanical seal (0433.00) and the shaft (0211.00)
with clean water.
Push the mounting sleeve onto the shaft shoulder.
HILGE assembly tools prevent damage to the
mechanical seal during further assembly.
Push the stationary ring of the mechanical seal
(0433.00) with the installation sleeve into the seat
of the discharge casing (0107.00).
BA.10A.ADY.001.GB_1
20.07.2018
Spray bottle
Mounting sleeve
Installation sleeve
Malfunctions / repairs

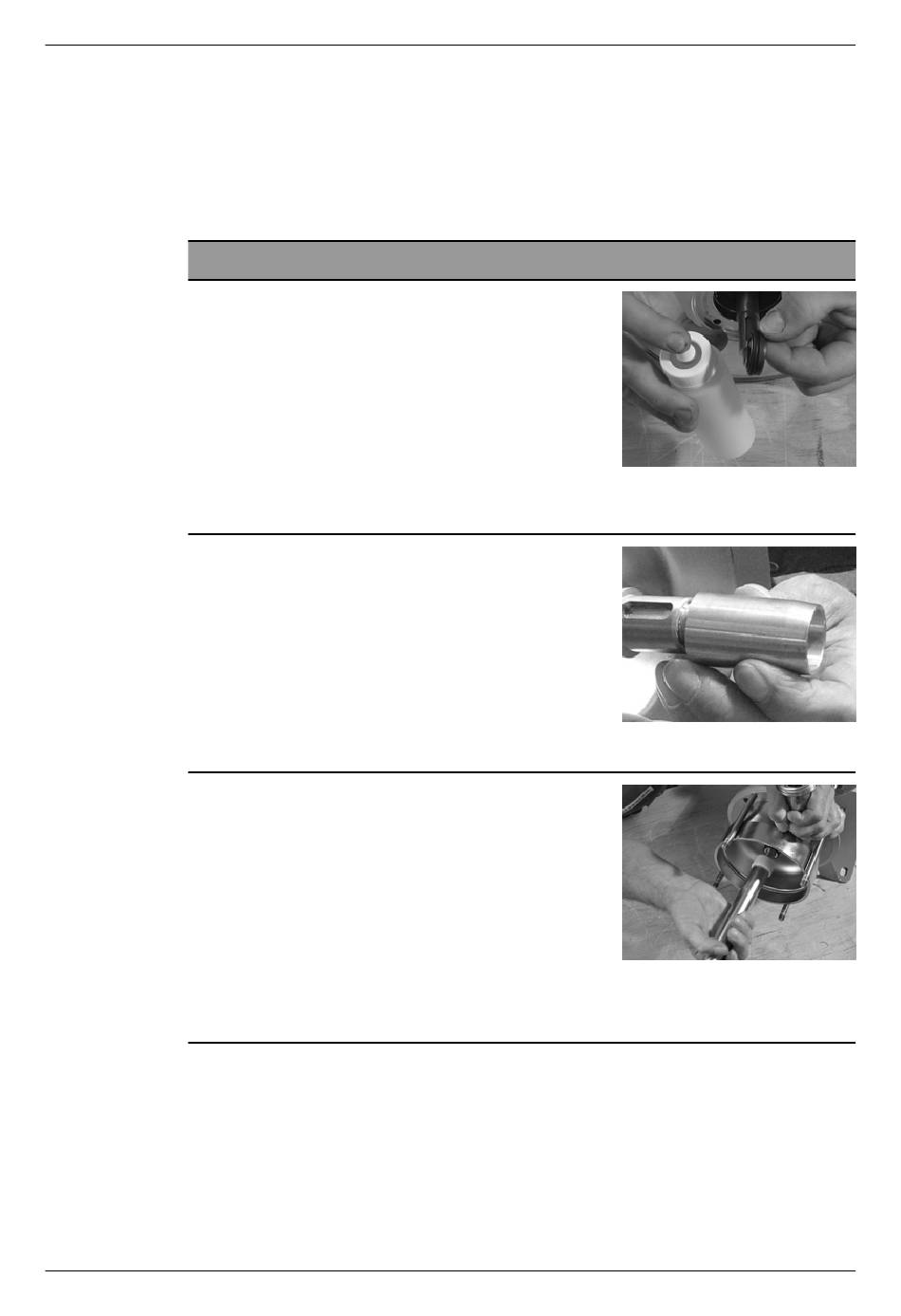

Fig.66: Stationary ring of the
mechanical seal
Fig.67: Mounting sleeve
Fig.68: Fixed ring of the
mechanical seal and
discharge casing
Repair
