Malfunctions / repairs
Repair
Installing ADAPTA bearing housing size 3
Push the V-rings (0507.02) and (0507.05) with
greased sealing lips from both sides onto the shaft
(0211.00) so that the sealing lips contact the
bearing caps (0360.00/01).
Insert the key (0940.01) into the shaft (0211.00).
Do not use a mallet! The bearings could be
damaged.
Grease the coupling seat on the shaft (0211.00)
with Klüber paste UH1 96-402.
Check the coupling inserts (0867.02) for wear and
replace if necessary.
Push the coupling half (0840.00) onto the shaft
(0211.00) so that it is flush with it.
68

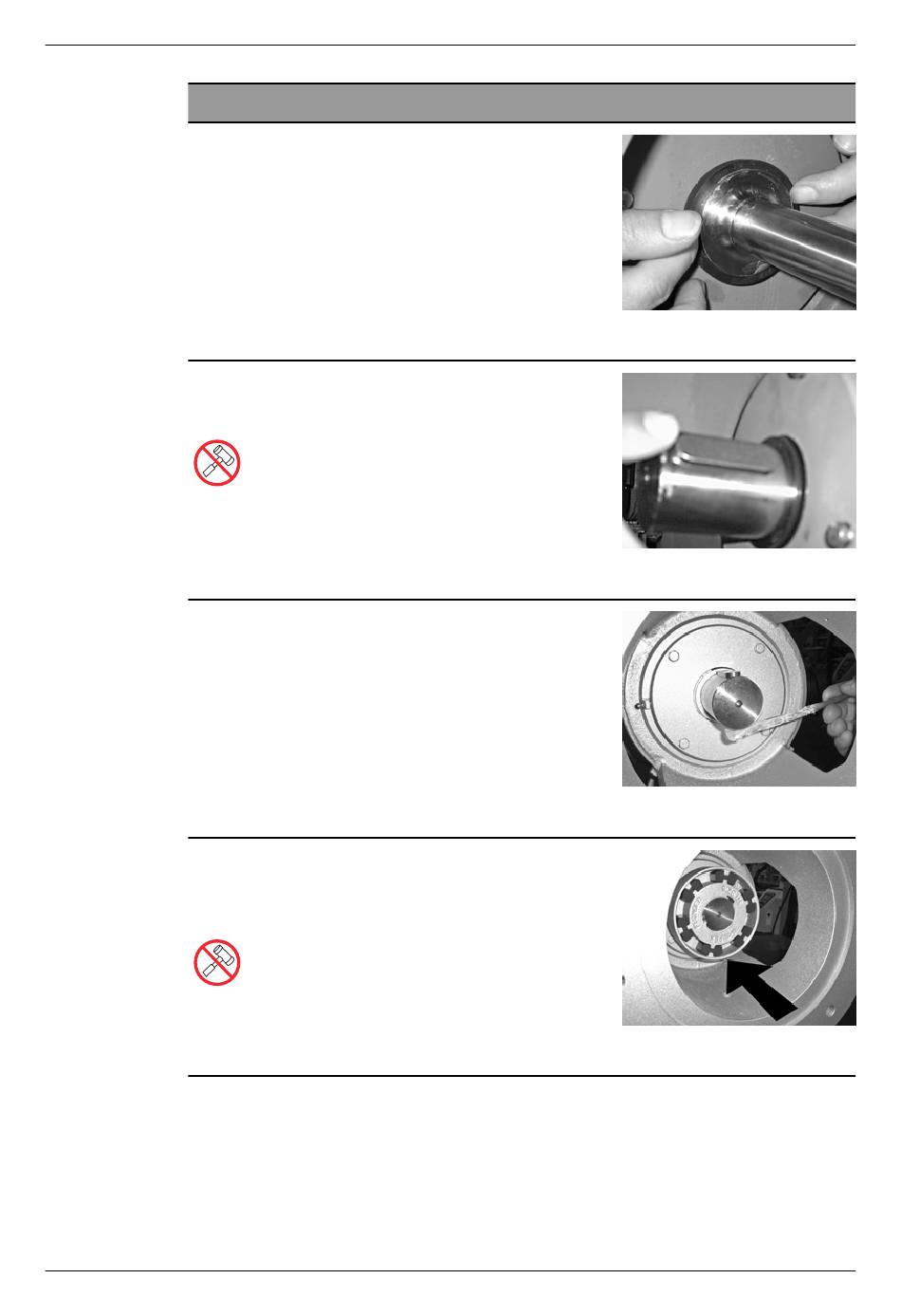

Fig.47: V-rings
Fig.48: Key
Fig.49: Coupling seat
Fig.50: Coupling half
