Installing ADAPTA bearing housing size 1 and 2

Installing ADAPTA bearing housing size 1 and 2
Push the roller bearings (0326.00) onto the shaft
(0211.00).
Fix the roller bearings (0236.00) with the locknut
(0926.00).
torque: 120-140 Nm.
Replace the locknut when replacing the bearings.
Do not use a mallet!
Fill the gaps of roller bearings (0326.00) 100% with
grease. For details, see Section 9.4.1, Page 47
Push the shaft (0211.00) into the bearing housing
(0330.00).
Lightly grease the bearing cover (0360.01) on the
inside.
Push the bearing cap over the shaft (0211.00).
BA.10A.ADY.001.GB_1
20.07.2018
Malfunctions / repairs

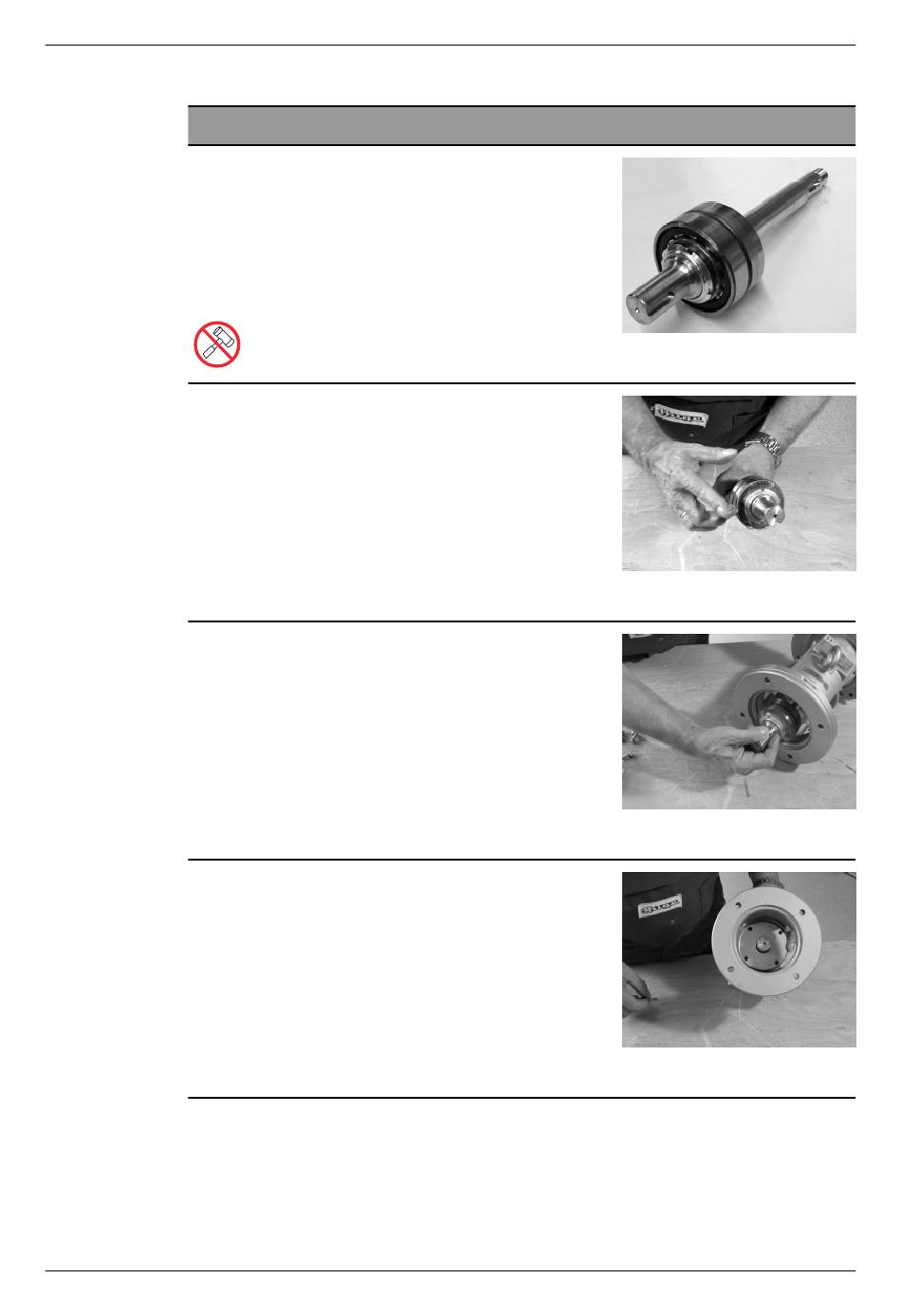

Fig.21: Shaft with roller bearing
Fig.22: Roller bearings
Fig.23: ADAPTA bearing housing
Fig.24: Bearing cover
