User LEDs Pin Assignment:
Part 19: Keys
The AX515 FPGA development board has five independent buttons,
48 / 52
Cyclone IV FPGA Development Board AX515 User Manual

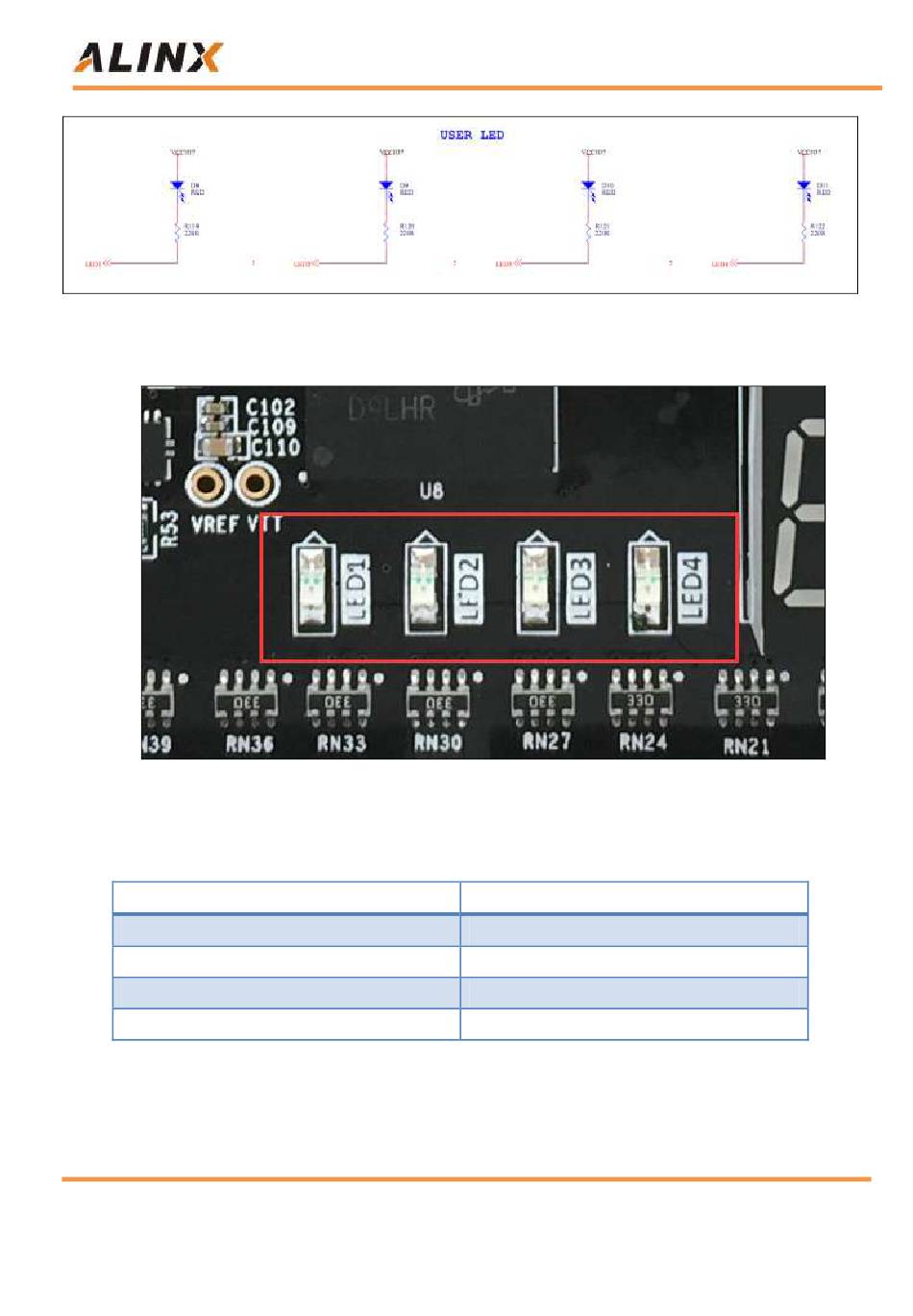

Figure 18-1: User LEDs Schematic
Figure 18-2: User LEDs on the FPGA Board
Pin Name
LED1
LED2
LED3
LED4
Contact Email: rachel.zhou@alinx.com.cn
FPGA Pin
D15
G13
C15
E12
