Part 17.2: Expansion header J2

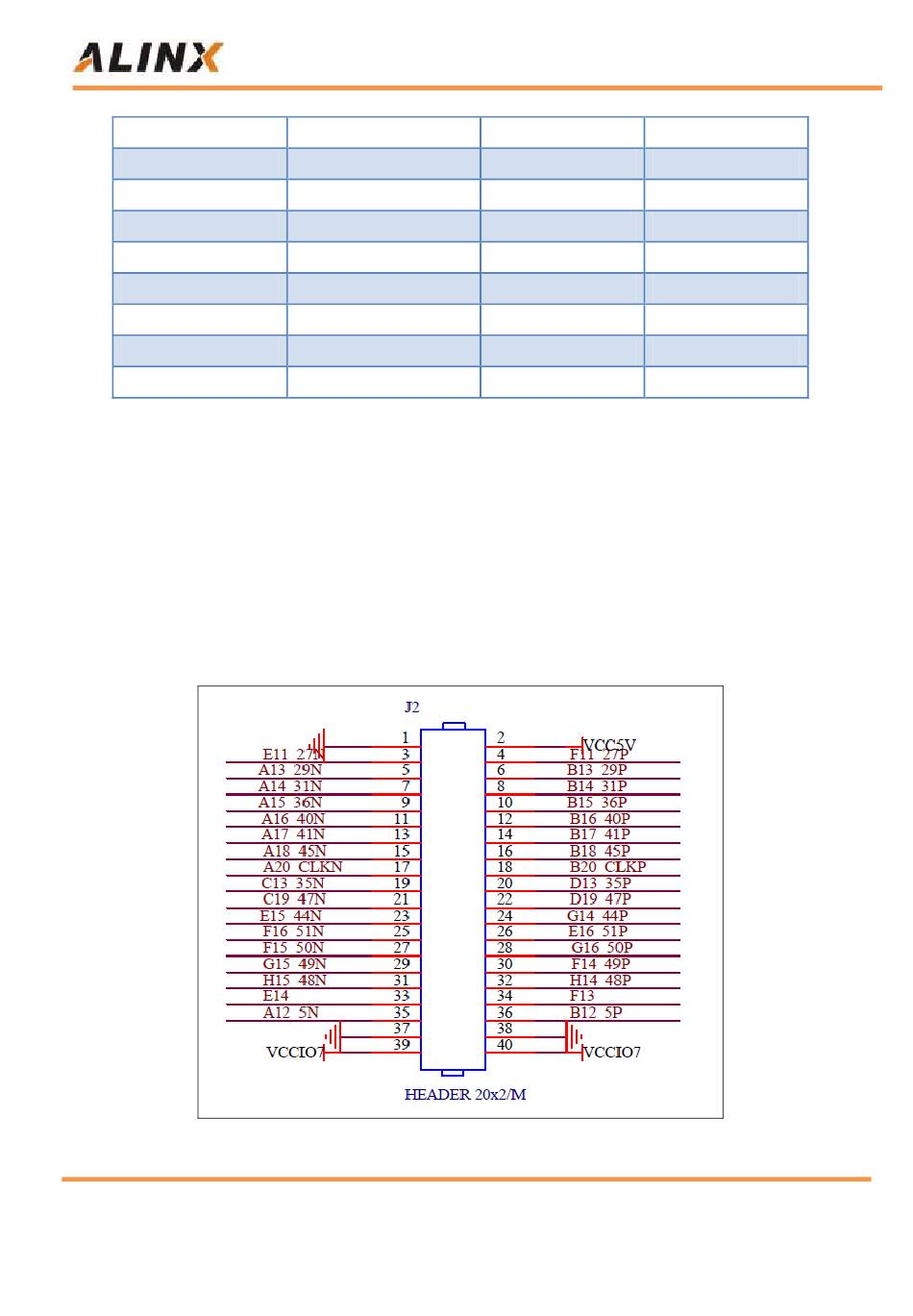

Figure 17-3 shows the J2 expansion port connection diagram. Pin1, Pin37,
Pin38 are GND, Pin2 is +5V, and Pin39 and Pin40 are +3.3V. In addition to
Pin33 and Pin34, the signals of J2 are connected to the Bank7 of the FPGA in
differential pairs. Users can realize the data communication between LVDS2.5
and LVDS3.3
42 / 52
Cyclone IV FPGA Development Board AX515 User Manual
P3
P1
P6
R7
N6
N7
N8
GND
VCC3V3
Figure 17-3: Expansion header J2 schematic
