Alinx Cyclone IV FPGA User Manual page 32

interface hardware design.
VGA Interface Pin Assignment
Pin Name
VGA_B[0]
VGA_B[1]
VGA_B[2]
VGA_B[3]
VGA_B[4]
VGA_G[0]
VGA_G[1]
32 / 52
Cyclone IV FPGA Development Board AX515 User Manual

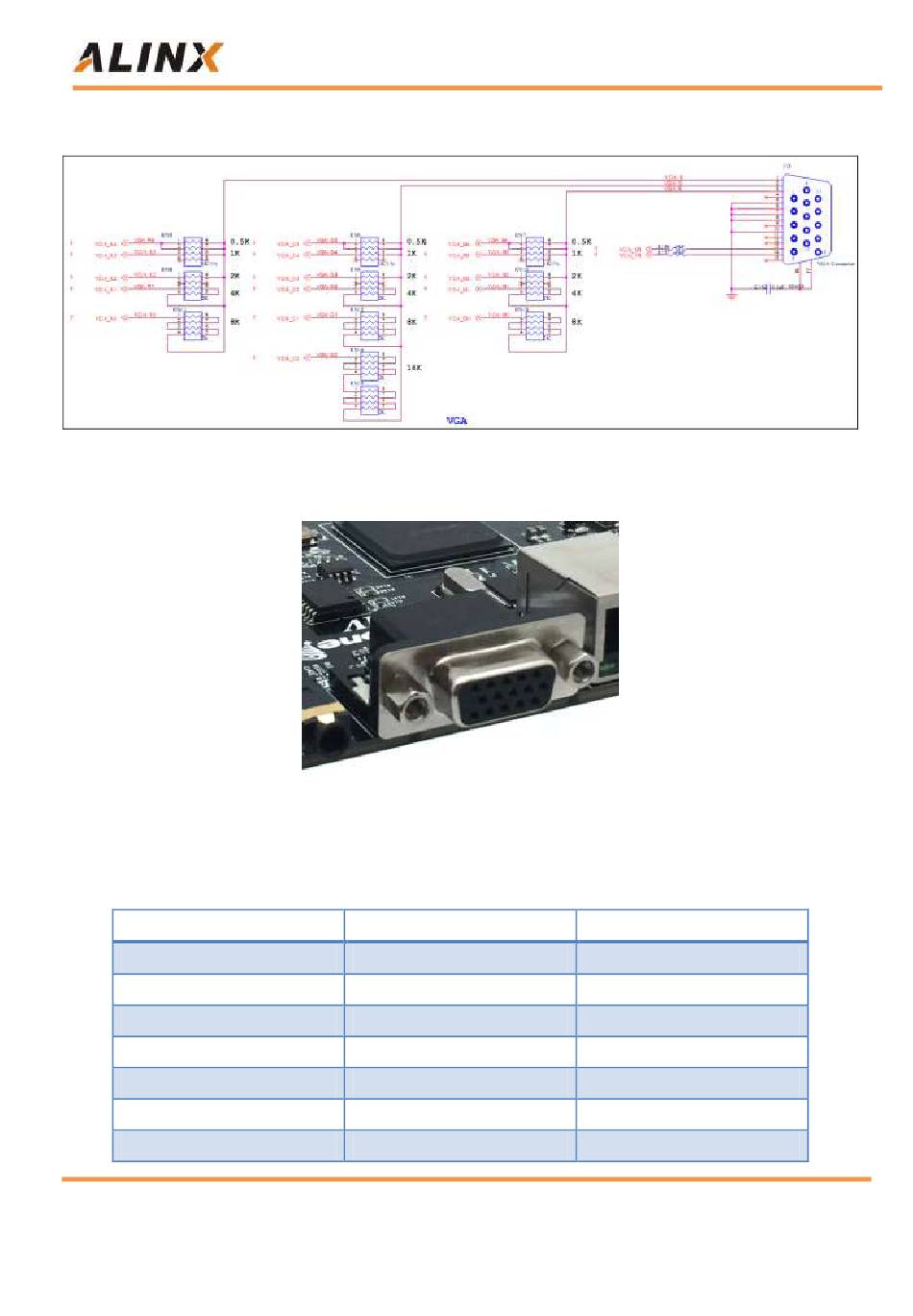

Figure 13-2: VGA Interface Hardware Design
Figure 13-3: VGA Interface on board
Contact Email: rachel.zhou@alinx.com.cn
FPGA Pin
G8
G10
F8
C7
F7
B4
E7
Description
BLUE[0]
BLUE[1]
BLUE[2]
BLUE[3]
BLUE[4]
GREEN[0]
GREEN[1]
