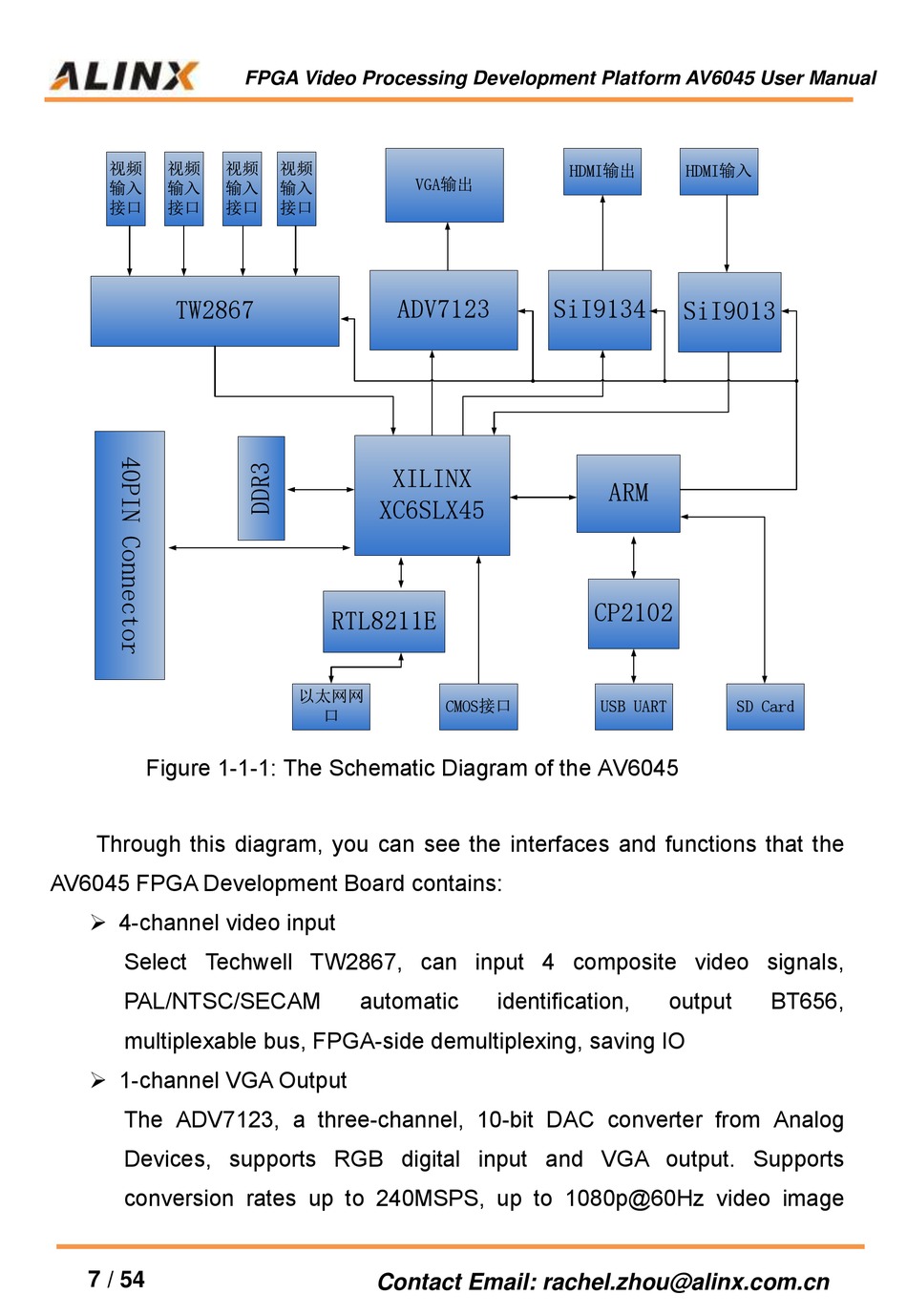

Figure 1-1-1: The Schematic Diagram of the AV6045
Through this diagram, you can see the interfaces and functions that the
AV6045 FPGA Development Board contains:
 4-channel video input
Select Techwell TW2867, can input 4 composite video signals,
PAL/NTSC/SECAM
multiplexable bus, FPGA-side demultiplexing, saving IO
 1-channel VGA Output
The ADV7123, a three-channel, 10-bit DAC converter from Analog
Devices, supports RGB digital input and VGA output. Supports
conversion rates up to 240MSPS, up to 1080p@60Hz video image
7 / 54
