3) Camera Module
CMOS camera interface, plug in ALINX 30 megapixel camera module or 5
megapixel camera module, real-time display 1080P video image on VGA
display or HDMI display.
10 / 54
FPGA Video Processing Development Platform AV6045 User Manual
Figure 2-1-2: Set top box

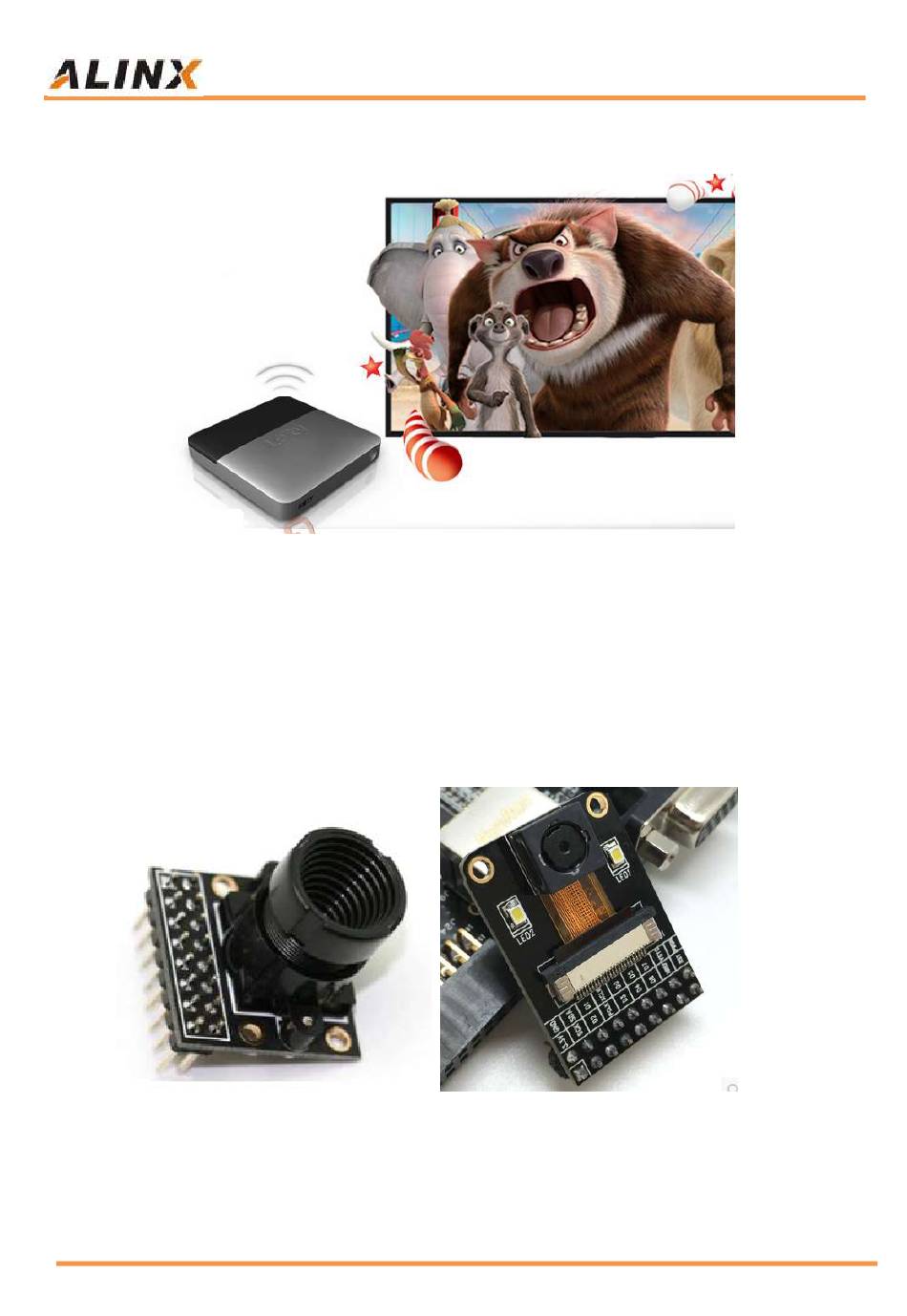

Figure 2-1-3: Camera Module
