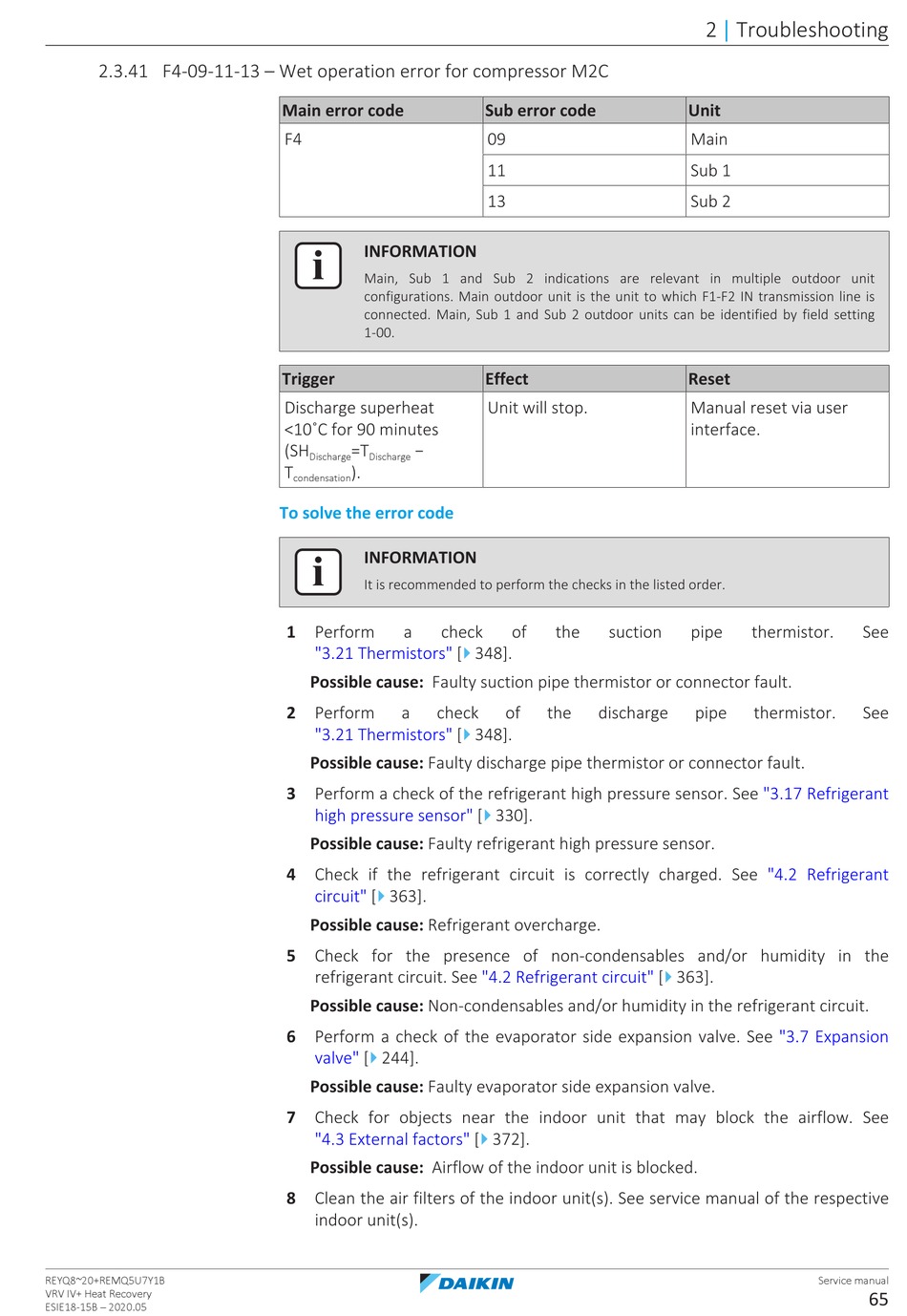

2.3.41 F4-09-11-13 – Wet operation error for compressor M2C
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
Main error code
F4
INFORMATION
Main, Sub 1 and Sub 2 indications are relevant in multiple outdoor unit
configurations. Main outdoor unit is the unit to which F1‑F2 IN transmission line is
connected. Main, Sub 1 and Sub 2 outdoor units can be identified by field setting
1‑00.
Trigger
Discharge superheat
<10˚C for 90 minutes
(SH =T −
Discharge Discharge
T ).
condensation
To solve the error code
INFORMATION
It is recommended to perform the checks in the listed order.
1 Perform a check
"3.21 Thermistors" [
Possible cause: Faulty suction pipe thermistor or connector fault.
2 Perform a check
"3.21 Thermistors" [
Possible cause: Faulty discharge pipe thermistor or connector fault.
3 Perform a check of the refrigerant high pressure sensor. See
high pressure sensor" [
Possible cause: Faulty refrigerant high pressure sensor.
4 Check if the refrigerant circuit is correctly charged. See
4
circuit" [ 363].
Possible cause: Refrigerant overcharge.
5 Check for the presence of non‑condensables and/or humidity in the
refrigerant circuit. See
Possible cause: Non‑condensables and/or humidity in the refrigerant circuit.
6 Perform a check of the evaporator side expansion valve. See
4
valve" [ 244].
Possible cause: Faulty evaporator side expansion valve.
7 Check for objects near the indoor unit that may block the airflow. See
"4.3 External factors" [
Possible cause: Airflow of the indoor unit is blocked.
8 Clean the air filters of the indoor unit(s). See service manual of the respective
indoor unit(s).
