Daikin VRV IV+ Service Manual page 321

REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05

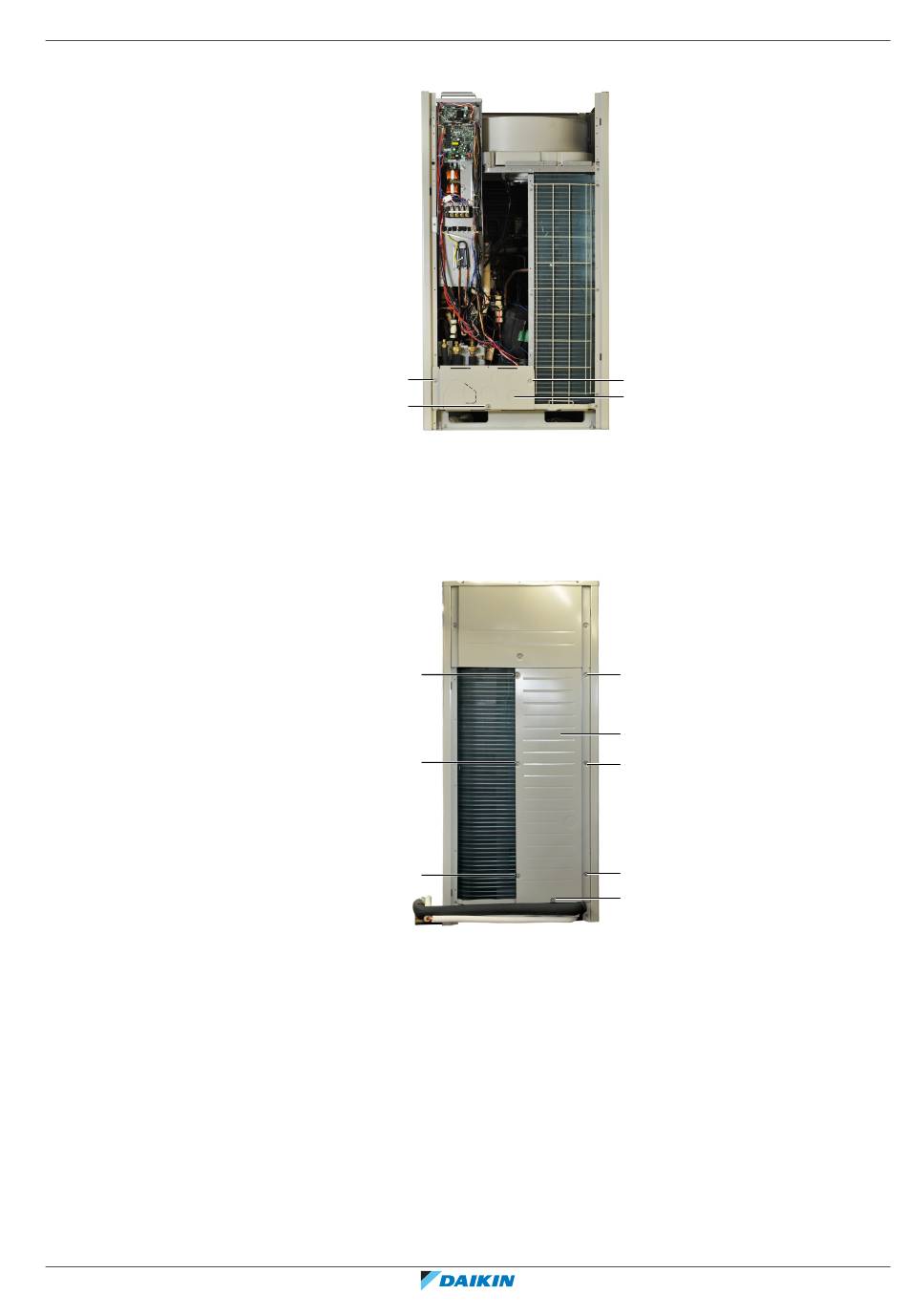

To remove the lower front plate
a
a
a Screw
b Lower front plate
10 Loosen and remove the 3 screws (a) that fix the lower front plate assembly.
11 Lift the lower front plate assembly (b) and remove it from the unit.
To remove the side plate
a
a
a
a Screw
b Side plate
12 Loosen and remove the 7 screws (a) that fix the side plate assembly.
13 Lift the side plate assembly (b) and remove it from the unit.
3 Components
|
a
b
a
b
a
a
a
Service manual
321
