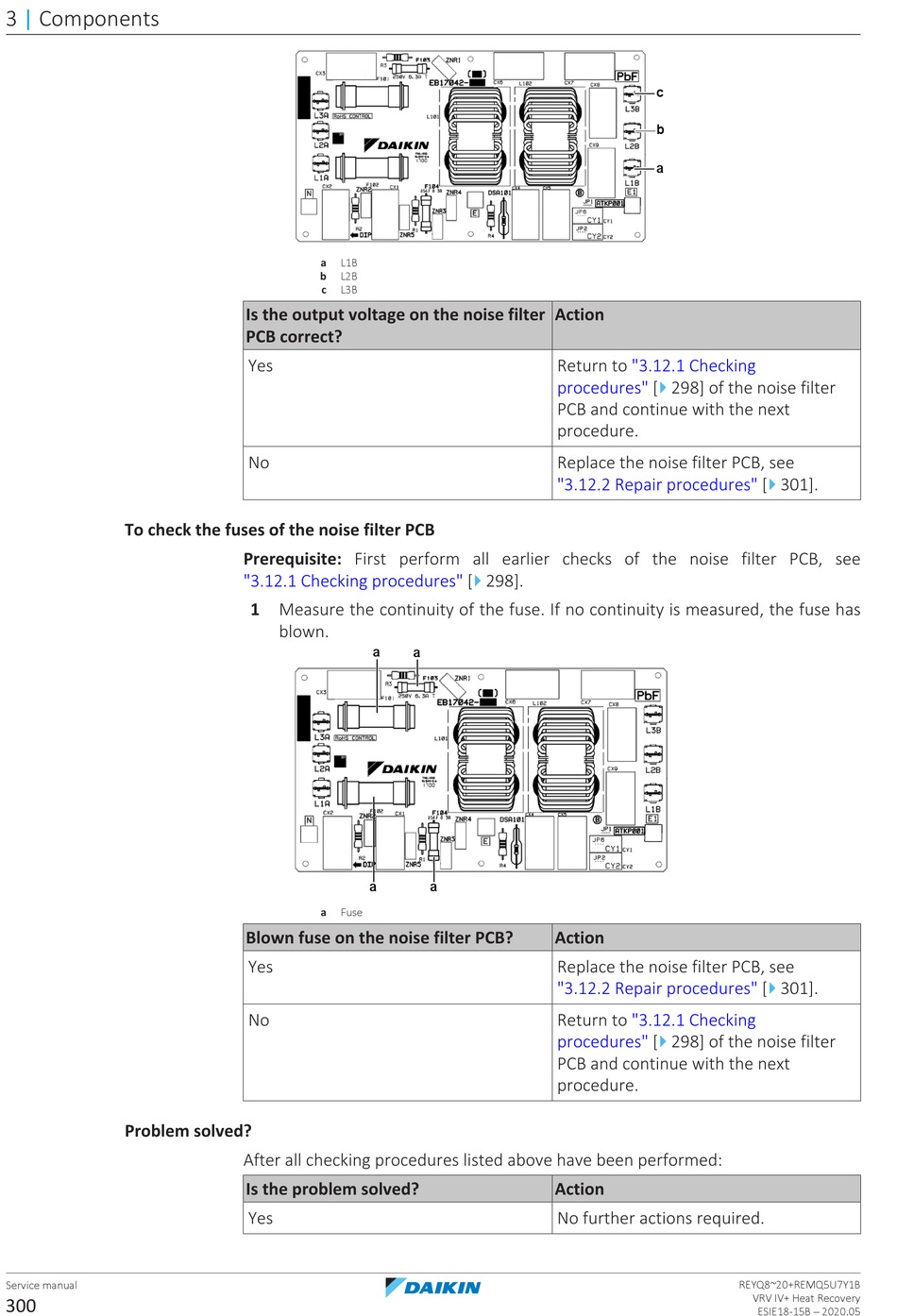

Daikin VRV IV+ Service Manual page 300

3 | Components
To check the fuses of the noise filter PCB
Problem solved?
Service manual
300
a L1B
b L2B
c L3B
Is the output voltage on the noise filter
PCB correct?
Yes
No
Prerequisite: First perform all earlier checks of the noise filter PCB, see
"3.12.1 Checking procedures" [
1 Measure the continuity of the fuse. If no continuity is measured, the fuse has
blown.
a
a
a Fuse
Blown fuse on the noise filter PCB?
Yes
No
After all checking procedures listed above have been performed:
Is the problem solved?
Yes
Action
Return to
procedures" [
PCB and continue with the next
procedure.
Replace the noise filter PCB, see
"3.12.2 Repair
4
298].
a
a
Action
Replace the noise filter PCB, see
"3.12.2 Repair
Return to
procedures" [
PCB and continue with the next
procedure.
Action
No further actions required.
c
b
a
"3.12.1 Checking
4
298] of the noise filter
4
procedures" [ 301].
4
procedures" [ 301].
"3.12.1 Checking
4
298] of the noise filter
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
