Daikin VRV IV+ Service Manual page 283

REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
f
e
c
d
a
b
a
c
d

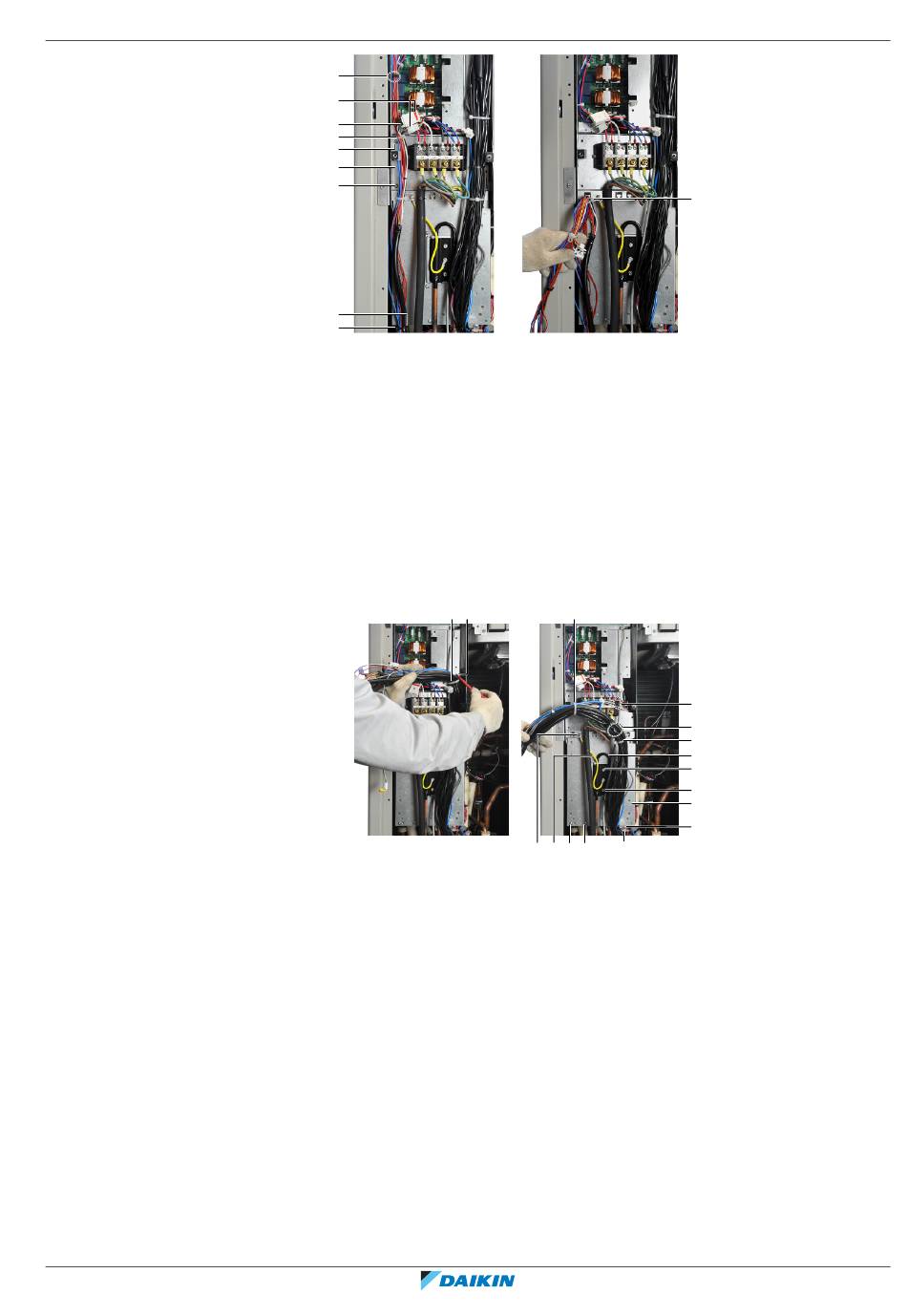

a Screw
b Power terminal assembly
c Screw
d Cable clamp
e Connectors X1A and X2A
f Wiring
g Tie wrap
3 Loosen and remove the 2 screws that fix the cable clamps.
4 Unplug the fan connectors X1A and X2A.
5 Unplug the wiring from the main board.
6 Detach the tie wrap.
7 Loosen and remove the screw that fixes the cable clamp.
b
a Screw
b Cable clamp
c Tie wrap
d Tie wrap
e Cables
f Cables
g Screw
h Compressor inverter assembly
i Screw
j Thermistor clamp
k Screw
l Heat pipe
m Ground wire
n Screw
8 Detach the tie wrap.
9 Cut the tie wraps on the cable harness.
10 Separate the cables and.
11 Loosen and remove the 2 screws that fix the compressor inverter assembly.
12 Loosen and remove the screw that fixes the thermistor clamp.
a d
n m g g j
3 Components
|
g
e
f
c
l
k
k
h
i
