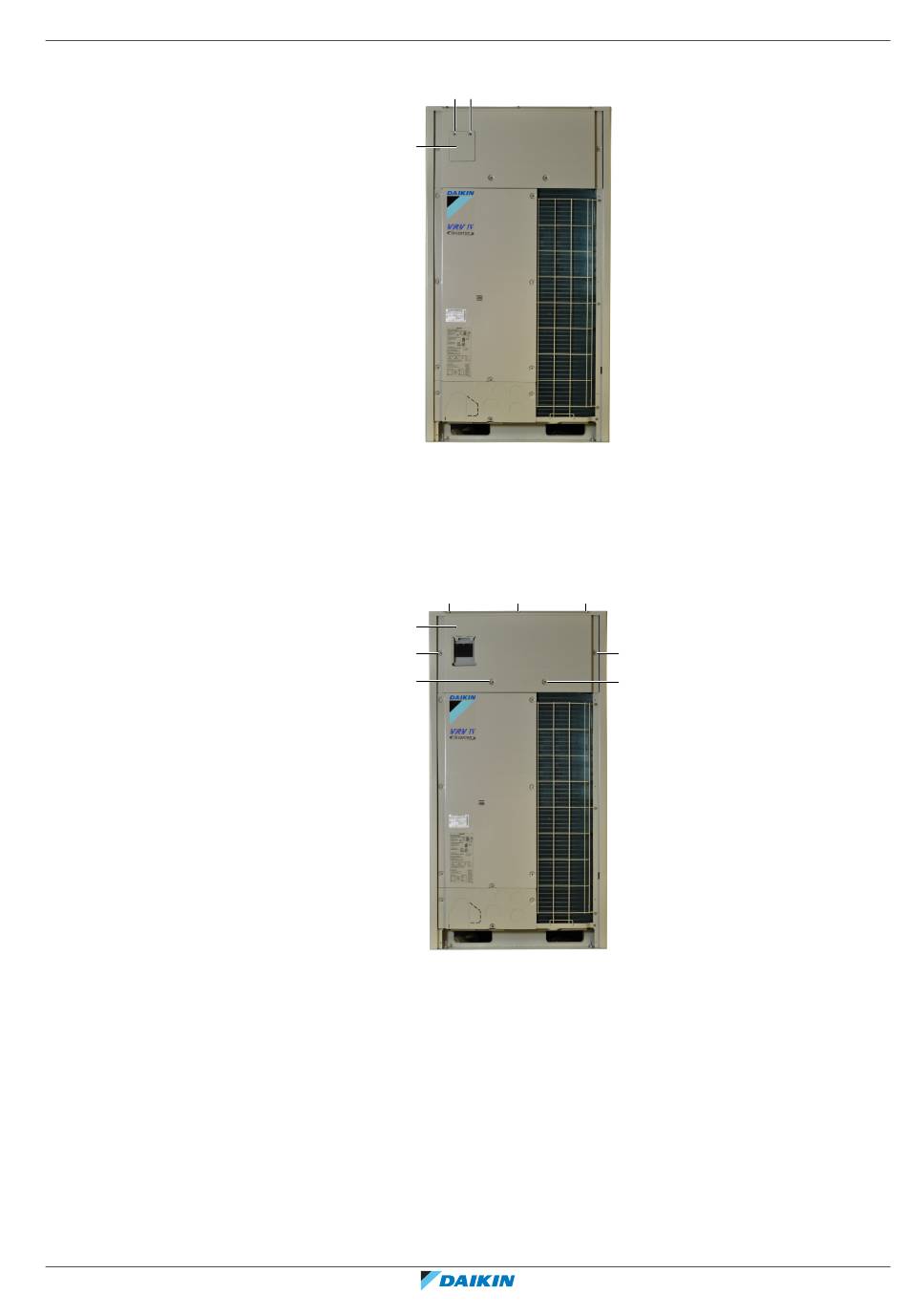

To remove the service plate
a
b
a Screw
b Service plate
2 Loosen and remove the 2 screws (a) that fix the service plate assembly.
3 Remove the service plate assembly (b) from the unit.
To remove the upper front plate
a
b
a
a
a Screw
b Upper front plate
4 Loosen and remove the 7 screws (a) that fix the upper front plate assembly.
5 Lift the upper front plate assembly (b) and remove it from the unit.
a
a a
a
a
