Daikin VRV IV+ Service Manual page 17

2.2.3 Via the wired remote control BRC1E
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05

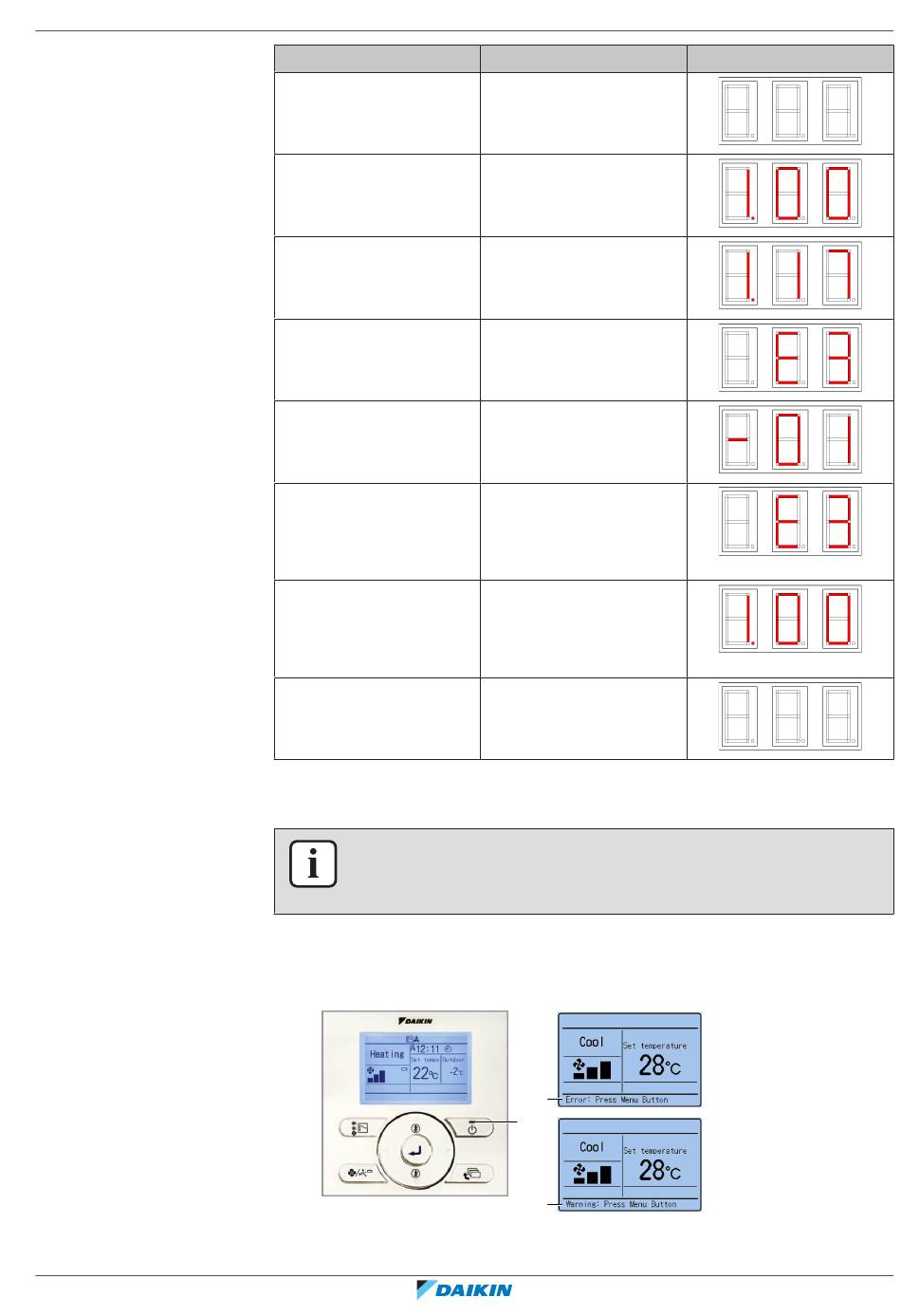

Action
Make sure the 7-segment
display indication is as
during normal operation.
To enter "Mode 1", push
the (BS1) button one time
Push the (BS2) button as
many times as the setting
you want to go to.
Press the RETURN (BS3)
Button.
Press the SET (BS2)
Button.
Press SET (BS2) once
again to return to main
Malfunction/Retry
display.
Press the RETURN (BS3)
Button to return to Home
Screen for "Monitoring
Mode".
Press the MODE (BS1)
Button to return to
"Normal Mode".
INFORMATION
Images are in English and for reference ONLY. For more details on the BRC1E please
refer to the user manual.
To retrieve the error code
In case of an error or warning, the operation lamp on the ON/OFF button blinks
and an error message or warning is displayed at the bottom of the screen.
a Operation lamp on the ON/OFF button
b Error message
Result
Mode 1 is accessed.
The setting is accessed
(e.g. 17, Error code last
forced off)
Malfunction/Retry item
will appear on display.
Detailed Malfunction/
Retry sub-code will
appear on display.
Main Malfunction/Retry
item will appear on
display.
Home Screen for
"Monitoring Mode" will
appear on display.
Back in normal mode.
b
a
c
