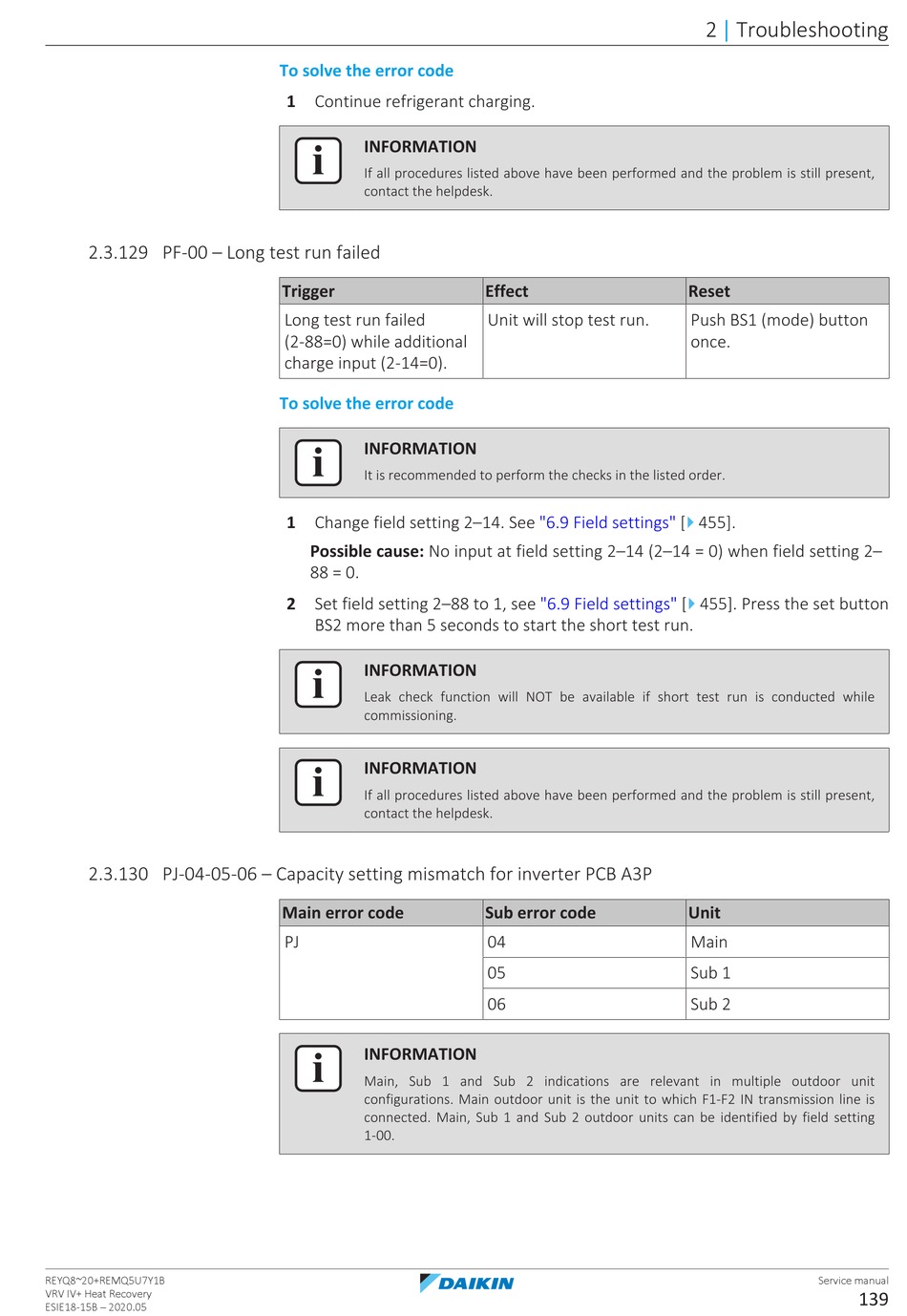

Daikin VRV IV+ Service Manual page 139

2.3.129 PF-00 – Long test run failed
2.3.130 PJ-04-05-06 – Capacity setting mismatch for inverter PCB A3P
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
To solve the error code
1 Continue refrigerant charging.
INFORMATION
If all procedures listed above have been performed and the problem is still present,
contact the helpdesk.
Trigger
Long test run failed
(2-88=0) while additional
charge input (2-14=0).
To solve the error code
INFORMATION
It is recommended to perform the checks in the listed order.
1 Change field setting 2–14. See
Possible cause: No input at field setting 2–14 (2–14 = 0) when field setting 2–
88 = 0.
2 Set field setting 2–88 to 1, see
BS2 more than 5 seconds to start the short test run.
INFORMATION
Leak check function will NOT be available if short test run is conducted while
commissioning.
INFORMATION
If all procedures listed above have been performed and the problem is still present,
contact the helpdesk.
Main error code
PJ
INFORMATION
Main, Sub 1 and Sub 2 indications are relevant in multiple outdoor unit
configurations. Main outdoor unit is the unit to which F1‑F2 IN transmission line is
connected. Main, Sub 1 and Sub 2 outdoor units can be identified by field setting
1‑00.
Effect
Unit will stop test run.
"6.9 Field settings" [
"6.9 Field settings" [
Sub error code
04
05
06
2 Troubleshooting
|
Reset
Push BS1 (mode) button
once.
4
455].
4 455]. Press the set button
Unit
Main
Sub 1
Sub 2
Service manual
139
