b
a Screw
b Cable clamp
c Tie wrap
d Tie wrap
e Cables
f Cables
g Screw
h Compressor inverter assembly
i Screw
j Thermistor clamp
k Screw
l Heat pipe
m Ground wire
n Screw

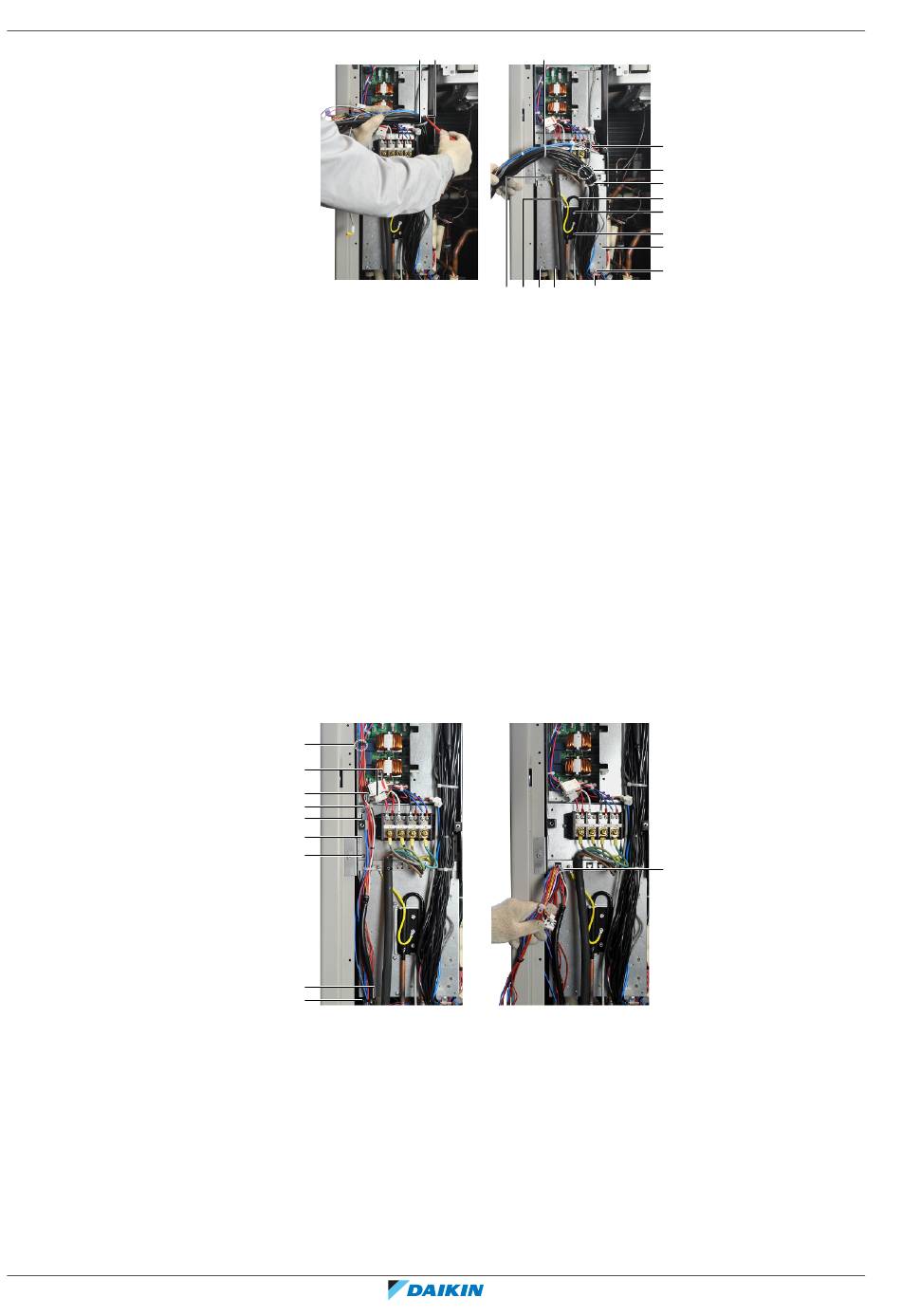

13 Install the screw (n) to fix the ground wire (m).
14 Install the 2 screws (k) to fix the heat pipe (l).
15 Install the screw (i) to fix the thermistor clamp (j).
16 Install the 2 screws (g) to fix the compressor inverter assembly (h).
17 Tie the cables (e) and (f) together with tie wraps (c, d).
18 Install the screw (a) to fix the cable clamp (b).
f
e
c
d
a
b
a
c
d
a Screw
b Power terminal assembly
c Screw
d Cable clamp
e Connectors X1A and X2A
f Wiring
g Tie wrap
19 Install the tie wrap (g).
20 Connect the wiring (f) to the main board.
21 Connect the fan connectors X1A and X2A (e).
22 Install the 2 screws (c) to fix the cable clamps (d).
a d
n m g g j
e
f
c
l
k
k
h
i
g
