To install the current sensor
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
b Tie wrap
c Ferrite core
d Screw connections
e Power wiring
2 Remove the necessary tie wraps from the wiring of the current sensor and the
power wiring.
3 Remove the ferrite core.
4 Loosen the screw connections to disconnect the power wiring.
5 Slide the current sensor on the power wiring and remove the current sensor.
6 To install the current sensor, see
1 Slide the current sensor on the power wiring and install the current sensor in
place.
2 Install the power wiring in the connections and fasten the screws.
3 Install the ferrite core.
4 Connect the current sensor connector.
5 Install new tie wraps on the wiring of the current sensor and on the power
wiring.

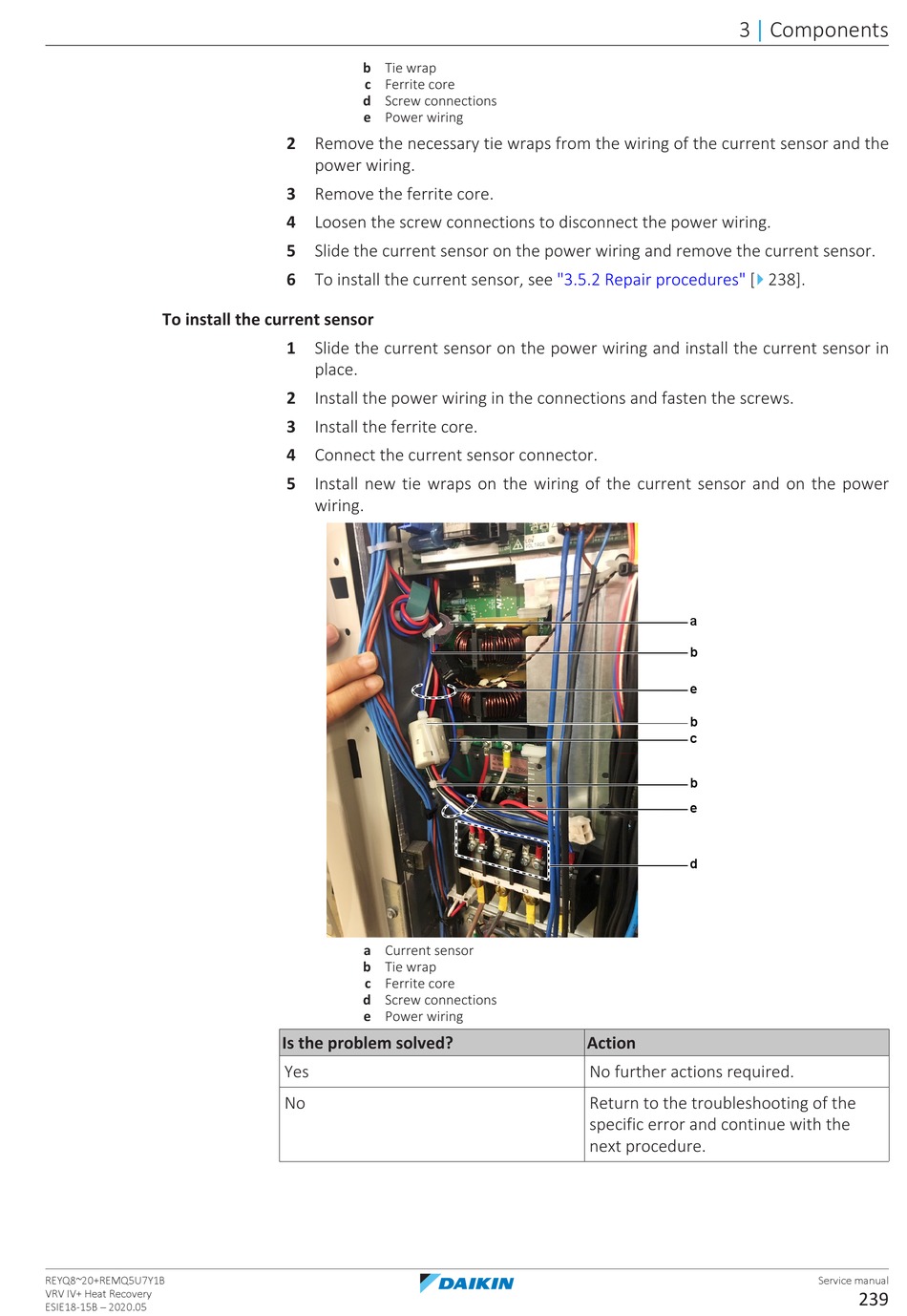

a Current sensor
b Tie wrap
c Ferrite core
d Screw connections
e Power wiring
Is the problem solved?
Yes
No
"3.5.2 Repair procedures" [
a
b
e
b
c
b
e
d
Action
No further actions required.
Return to the troubleshooting of the
specific error and continue with the
next procedure.
