6 | Technical data
d
i6
j6
d
i5
j5
d
i4
j4
d
i3
j3
d
i2
j2
d
i1
j1
Service manual
434

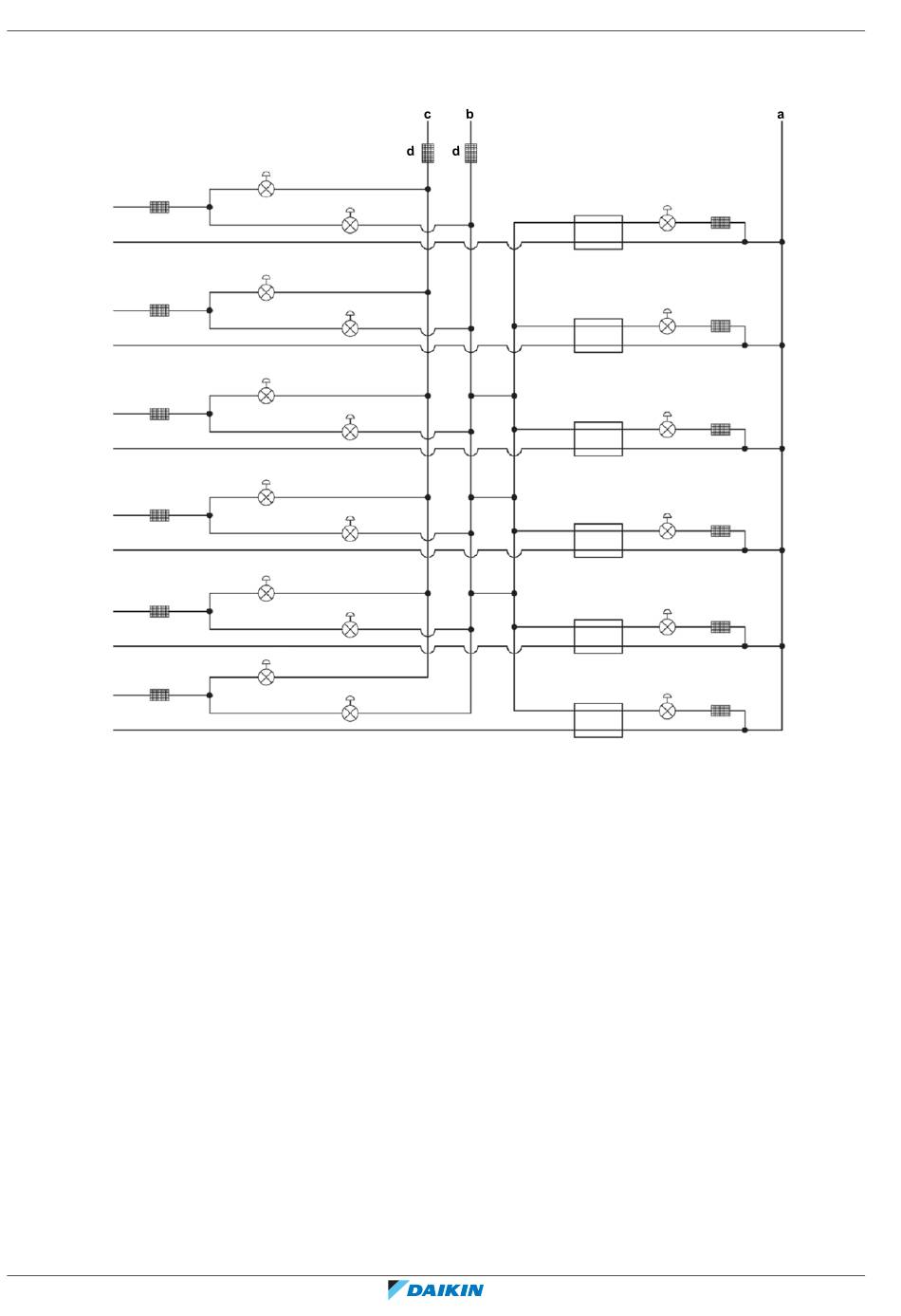

BS6Q-A Branch selector box piping diagram
h
g
h
g
h
g
h
g
h
g
h
g
a Liquid pipe (outdoor unit side pipe connections)
b Suction gas pipe (outdoor unit side pipe connections)
c High pressure/low pressure gas pipe (outdoor unit side pipe connections)
d Filter
e Subcool heat exchanger (double-tube)
f Subcool electronic expansion valve
g Suction pipe electronic expansion valve
h High pressure/low pressure electronic expansion valve
i1, j1 Indoor Unit A
i2, j2 Indoor Unit B
i3, j3 Indoor Unit C
i4, j4 Indoor Unit D
i5, j5 Indoor Unit E
i6, j6 Indoor Unit F
*
i = gas pipe, j = liquid pipe
e
e
e
e
e
e
*
*
*
*
*
*
f
d
f
d
f
d
f
d
f
d
f
d
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
