3 | Components
3.15.4 To remove the plate work on double fan units
Service manual
322

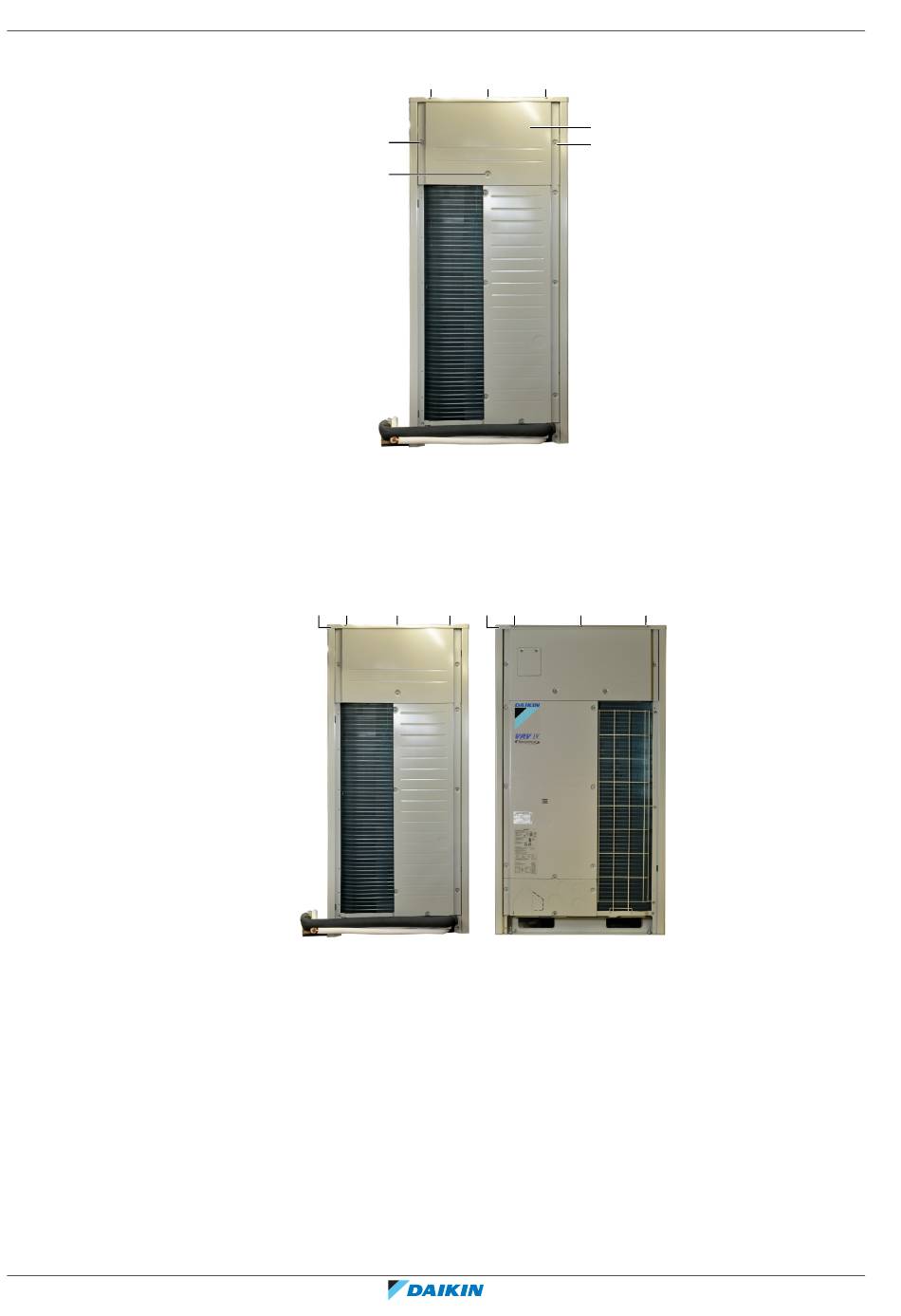

To remove the upper side plate
a
a
a Screw
b Upper side plate
14 Loosen and remove the 6 screws (a) that fix the upper side plate assembly.
15 Lift the upper side plate assembly (b) and remove it from the unit.
To remove the top plate
b a a
a Screw
b Top plate
16 Loosen and remove the 12 screws (a) that fix the top plate assembly.
17 Remove the top plate (b) from the unit.
Prerequisite: Stop the unit operation via the central controller.
1 Turn OFF the respective circuit breaker.
a a a
b
a
a b a a a
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
