Daikin VRV IV+ Service Manual page 233

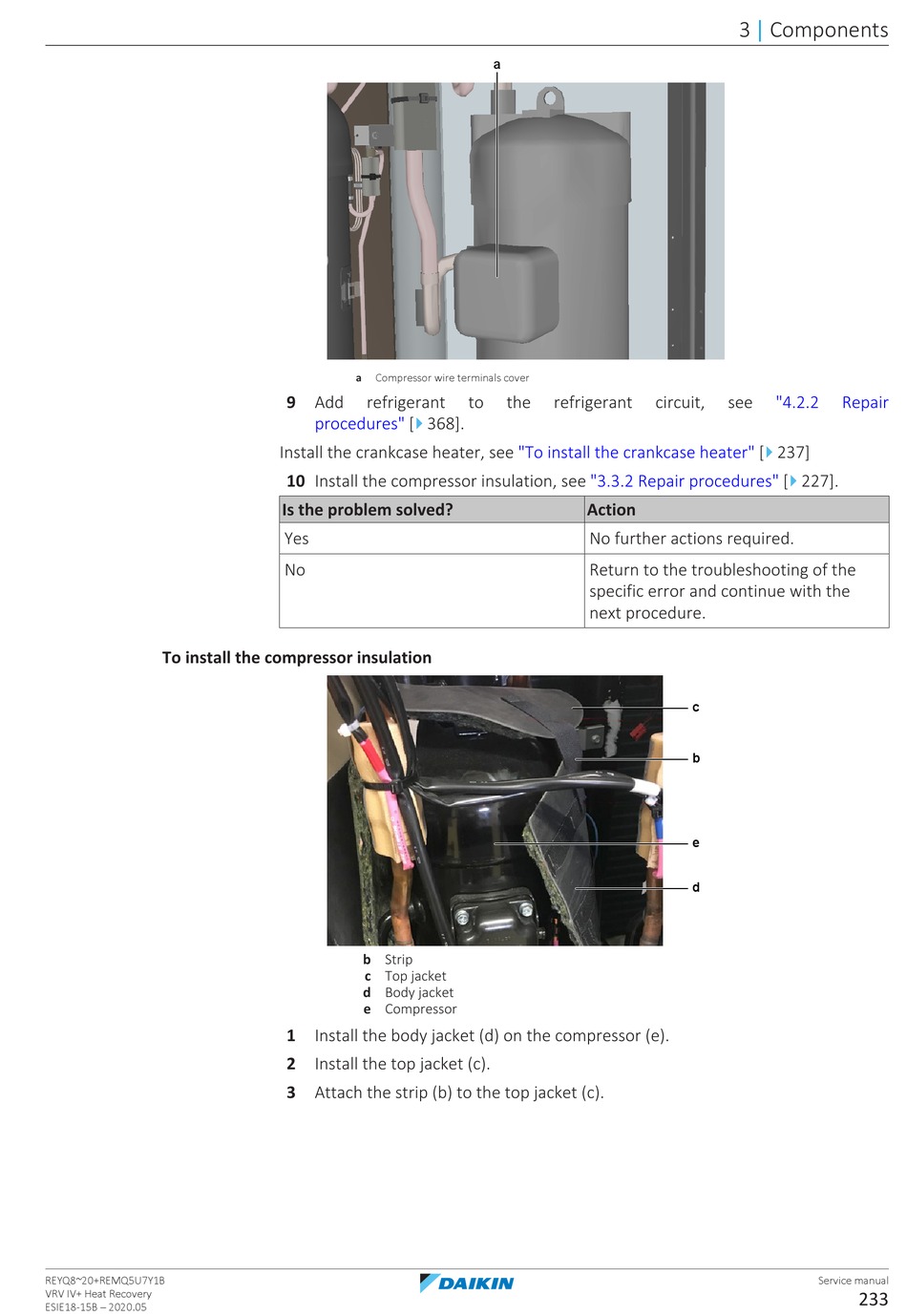

To install the compressor insulation
REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05
a Compressor wire terminals cover
9 Add refrigerant
4
procedures" [ 368].
Install the crankcase heater, see
10 Install the compressor insulation, see
Is the problem solved?
Yes
No
b Strip
c Top jacket
d Body jacket
e Compressor
1 Install the body jacket (d) on the compressor (e).
2 Install the top jacket (c).
3 Attach the strip (b) to the top jacket (c).
a
to the refrigerant
"To install the crankcase
"3.3.2 Repair
Action
No further actions required.
Return to the troubleshooting of the
specific error and continue with the
next procedure.
3 Components
|
circuit, see "4.2.2 Repair
4
heater" [ 237]
4
procedures" [ 227].
c
b
e
d
Service manual
233
