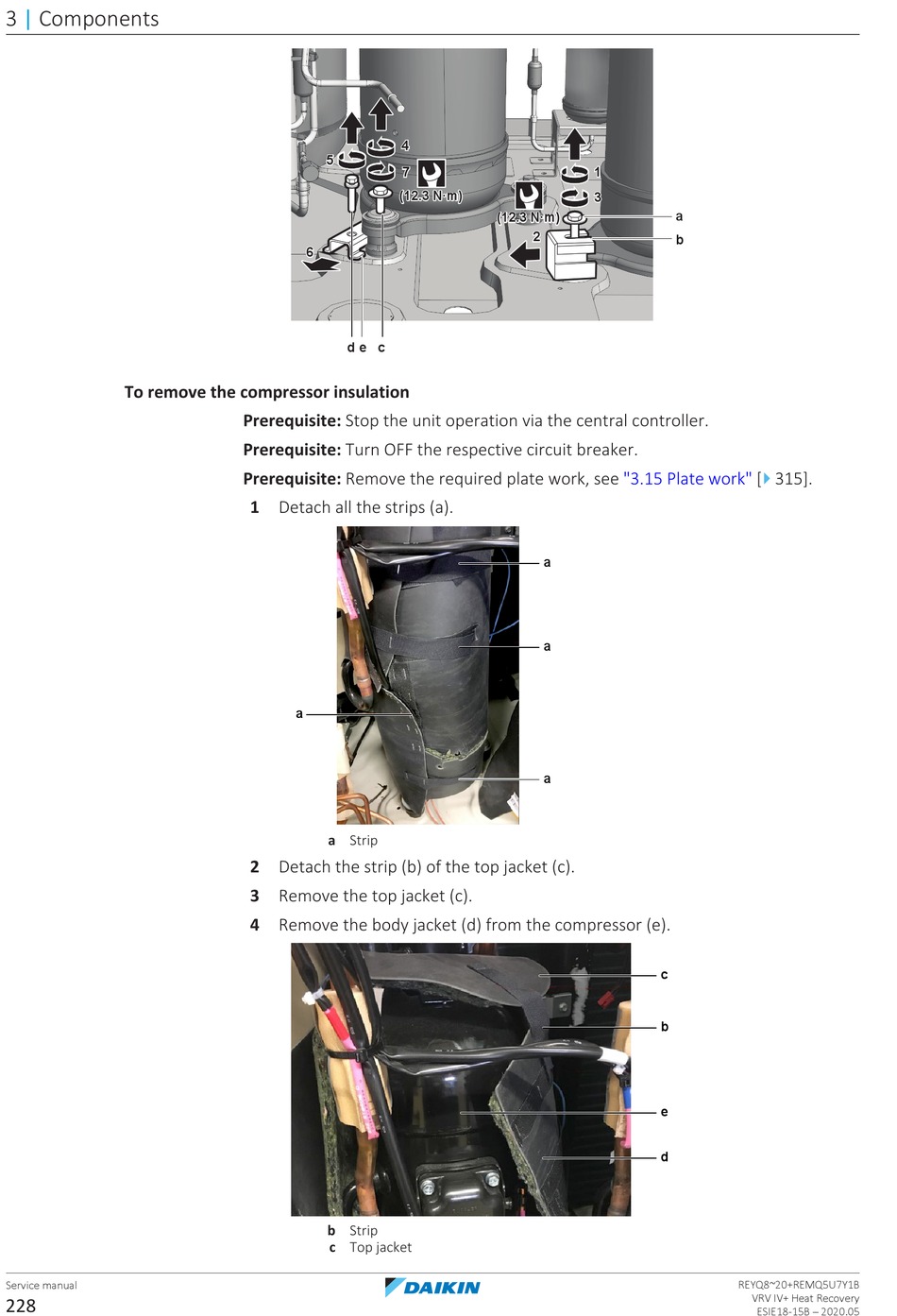

To remove the compressor insulation
Service manual
228
4 4
5 5
7 7
(12.3 N·m)
6 6
d e c
Prerequisite: Stop the unit operation via the central controller.
Prerequisite: Turn OFF the respective circuit breaker.
Prerequisite: Remove the required plate work, see
1 Detach all the strips (a).
a
a Strip
2 Detach the strip (b) of the top jacket (c).
3 Remove the top jacket (c).
4 Remove the body jacket (d) from the compressor (e).
b Strip
c Top jacket
1 1
3 3
(12.3 N·m)
2 2 2 2
"3.15 Plate
a
a
a
c
b
e
d
a
b
4
work" [ 315].
