REYQ8~20+REMQ5U7Y1B
VRV IV+ Heat Recovery
ESIE18-15B – 2020.05

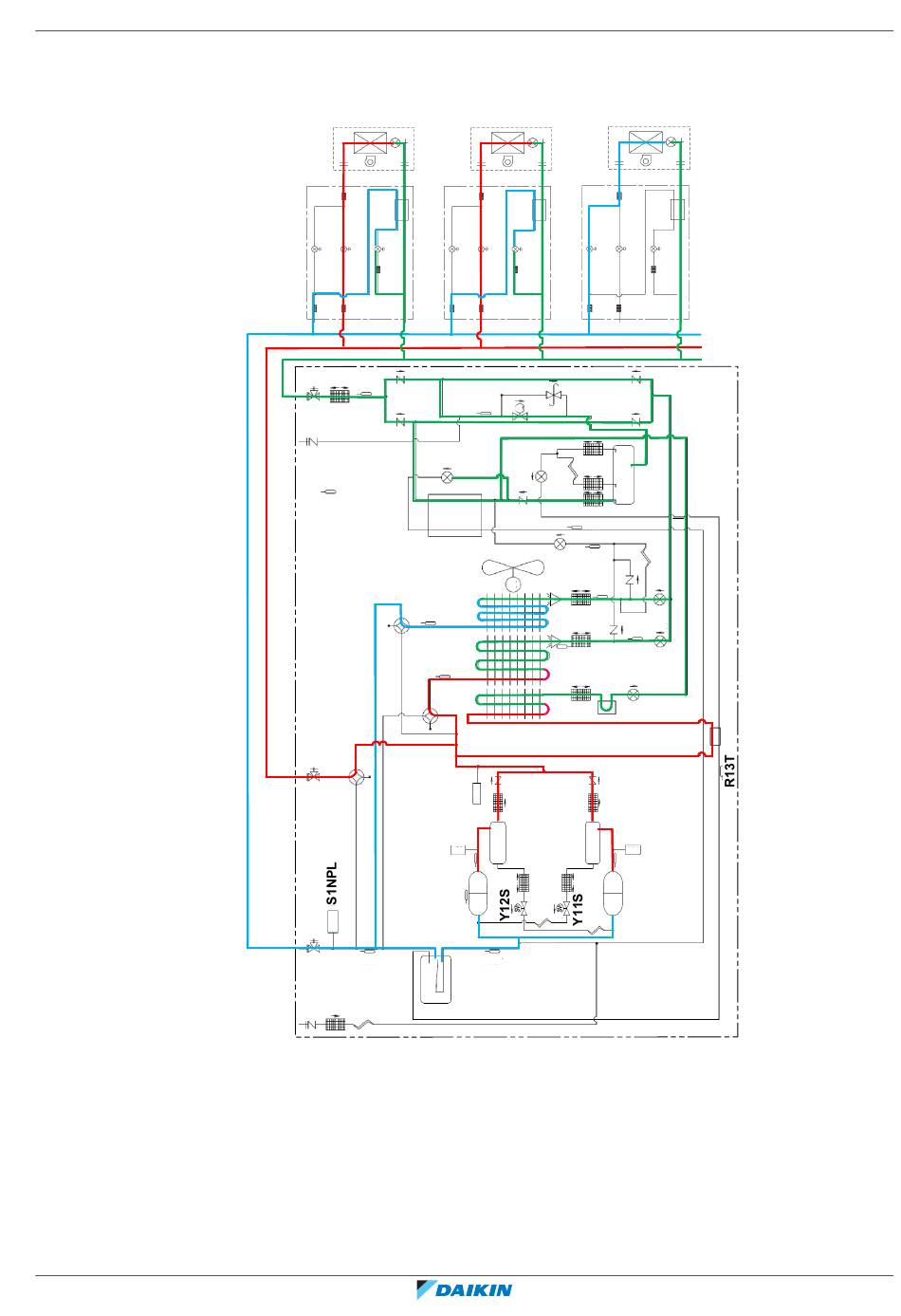

REYQ14~20 Oil return operation in simultaneous cooling/heating
1
4
5
EVL
EVH
EVSC
R7T
Y2E
R1T
R8T
Y5S
R9T
Y4S
Y3S
S1NPH
S2PH
R22T
18-20HP
R15T
R10T
1 Indoor Unit, Unit ON, Heating, Thermo OFF, Fan ON, Indoor electronic expansion
valve 224 pulse
2 Indoor Unit, Unit ON, Heating, Thermo ON, Fan ON, Indoor electronic expansion
valve subcool control
3 Indoor Unit, Unit ON, Cooling, Thermo ON, Fan ON, Indoor electronic expansion
valve superheat Control
4 Branch selector box, electronic expansion high pressure valve ON, electronic
expansion valve low pressure OFF, Subcool electronic expansion valve ON
5 Branch selector box, electronic expansion high pressure valve ON, electronic
expansion valve low pressure OFF, Subcool electronic expansion valve ON
2
3
6
EVL EVH
EVL EVH
EVSC
R3T
Y2S
SV
Y4E
R6T
M1F
Y6E
R14T
M
R4T
R5T
R11T
Y5E
S1PH
HPS
R21T
R12T
6
Technical data
|
EVSC
a
b
c
Y1E
Y3E
HPS
Service manual
429
