Chapter 3: Configuring the 2085sc-IF16 Using CCW

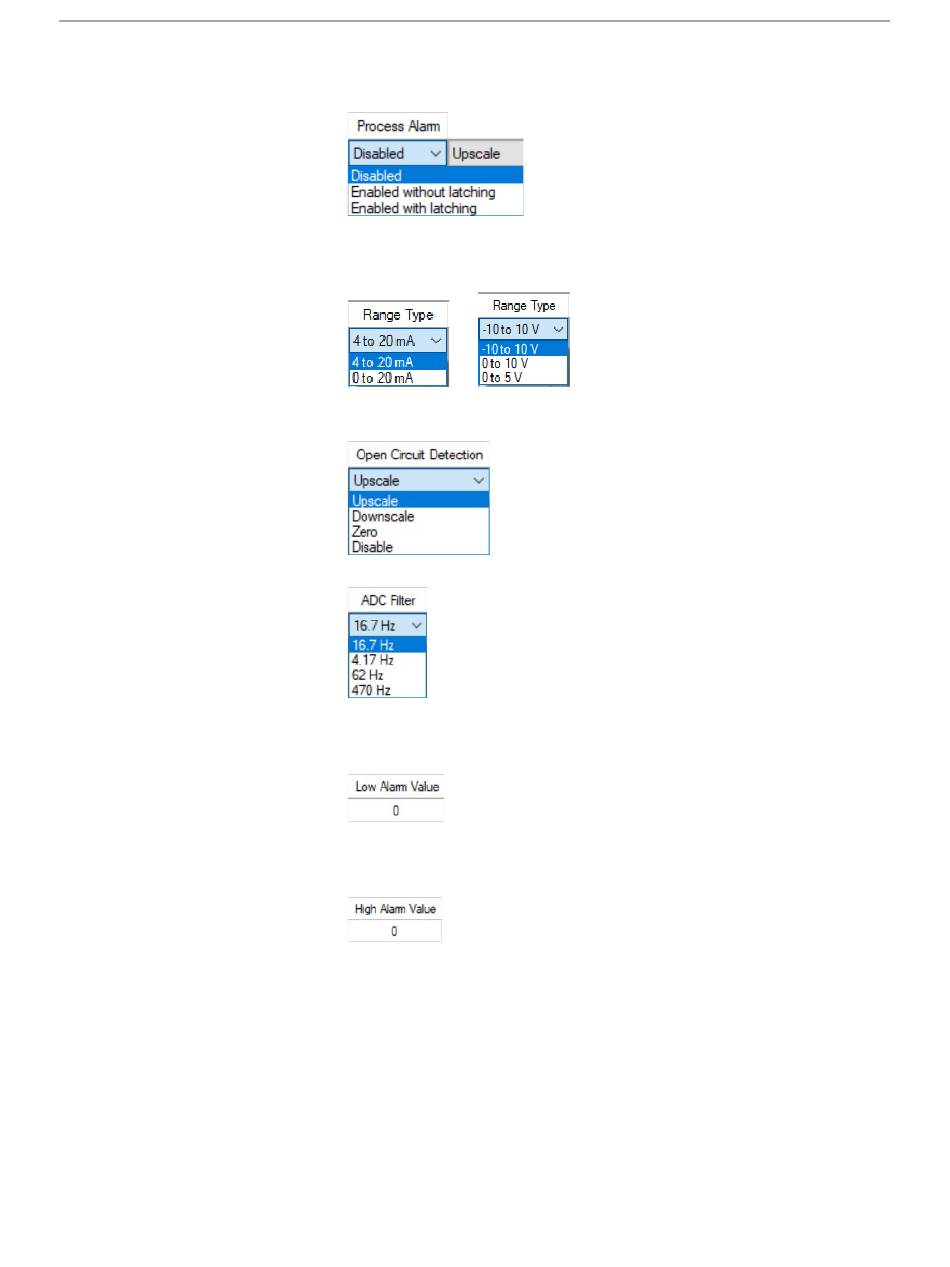

Process Alarm. Specifies process alarm enabling or disabling.
Select type from drop-down list. Disabled is default:
Range Type. For 16C specifies current range to use. Default is 4 to
20 mA. For 16V, specifies voltage range to use. Default is -10 to 10
V:
Open Circuit Detection. Specifies how to respond to an open circuit
condition. Default is Upscale.
ADC Filter. Specifies which filter to use. Default is 16.7 Hz.
Low Alarm Value. Specifies value below which alarm is triggered.
Default value is 0. Example: Low alarm value for current is 0. Low
alarm value for ±10 Volts is -10 V.
High Alarm Value. Specifies value above which alarm is triggered.
Default value is 0. Example: High Alarm value for current is 0. High
alarm value for ±10 Volts is +10 V.
6. When finished making selections, click Generate.
The Configuration Text dialog appears, with your configuration settings
for each enabled channel.
User's Manual Pub. 0300306-02 Rev. B
3-11
