Chapter 3: Configuring the 2085sc-IF16 Using CCW

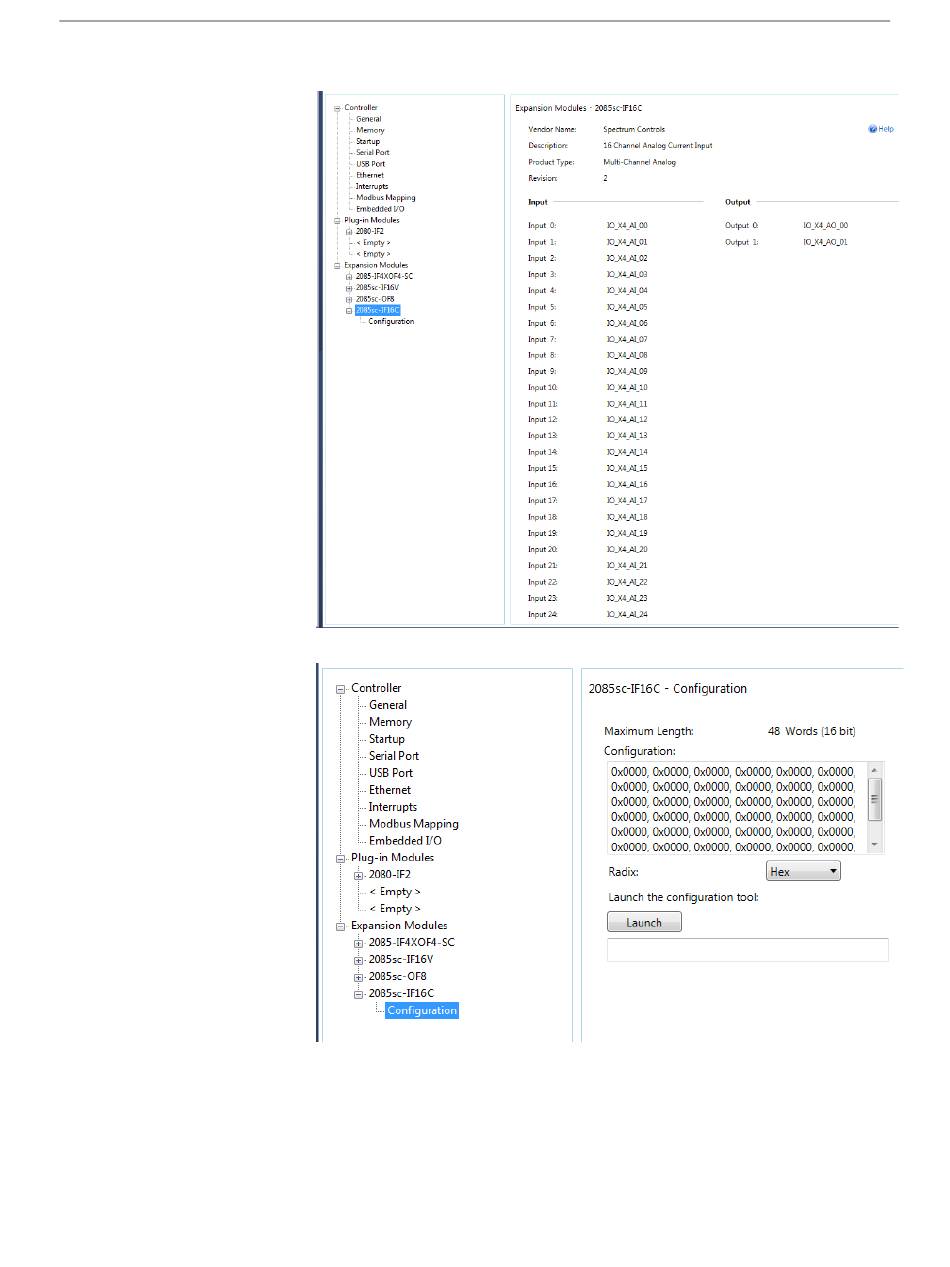

The same variables can also be found on the CCW Global Variables Tab:
To view the configuration tab, click the Configuration option:
Maximum Length. Shows maximum number of words available.
Each word is 16-bit.
Configuration. The textbox lists out the whole module configuration
value.
Radix. The drop-down menu contains the following number formats
for indicating module configuration value. Options are:
User's Manual Pub. 0300306-02 Rev. B
3-7
