Chapter 3: Configuring the 2085sc-IF16 Using CCW

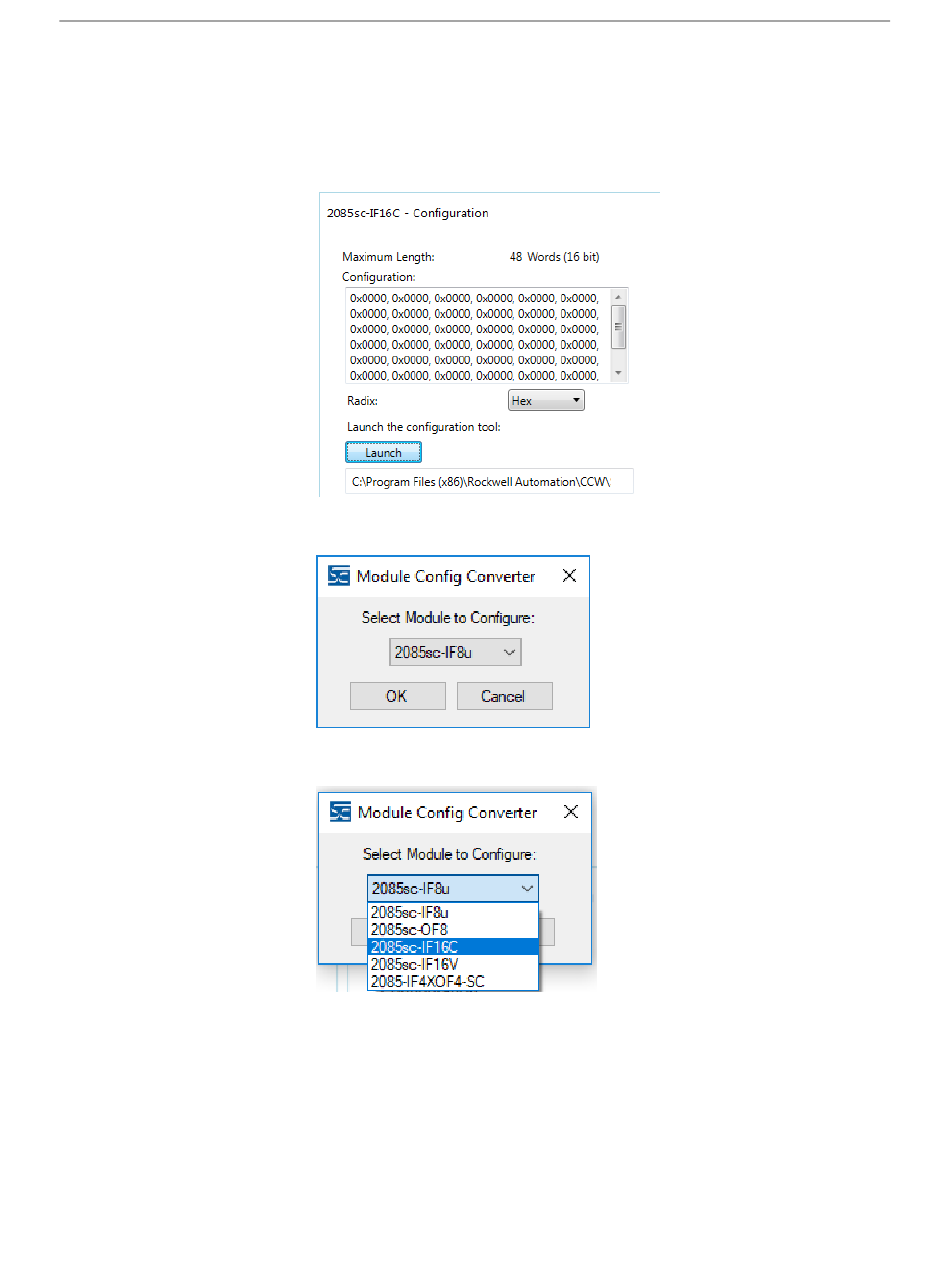

2. Click the button, navigate to the directory where you installed the CCW
program, and select the ModuleConfigConverter tool located in the
Spectrum Tool directory:
Example. C:\Program Files (x86)\Rockwell
Automation\CCW\SpectrumTool
3. To run the tool, click Launch. The Module Config Converter dialog
appears:
4. From the drop-down menu, select the 2085sc-IF16C option and click
OK.
User's Manual Pub. 0300306-02 Rev. B
3-9
