3-2
Chapter 3: Configuring the 2085sc-IF16 Using CCW
Section 3.2
2085sc-IF16C
and 2085sc-IF16V AOP
User's Manual Pub. 0300306-02 Rev. B

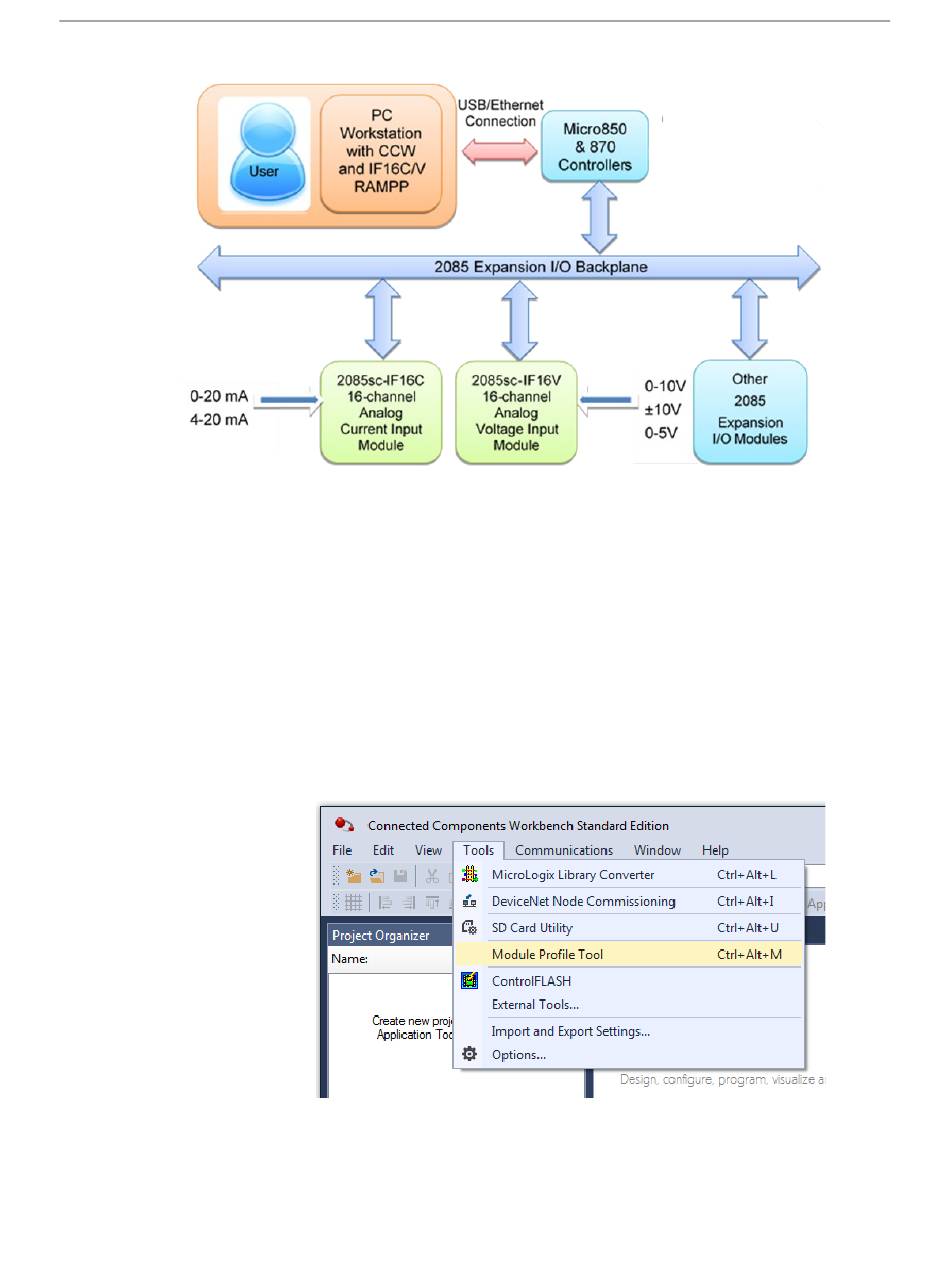

Spectrum Controls, Inc. also provides a custom configuration software utility that
you may use to provide configuration settings to the profile.
You use the module's AOP to configure your module. The AOP is available in
the CCW software. If not available, or a newer revision is released, see Appendix
A about how to manually import a module AOP to CCW.
To view information about the AOP:
1. Use RA's Module Profile Tool 2.0. This tool may be launched from
within CCW by selecting the Module Profile Tool option from the
CCW Tools menu:
2. When prompted by Windows User Account Control, to confirm that you
wish to run the program, click Yes button.
