Chapter 3: Configuring the 2085sc-IF16 Using CCW
16V:

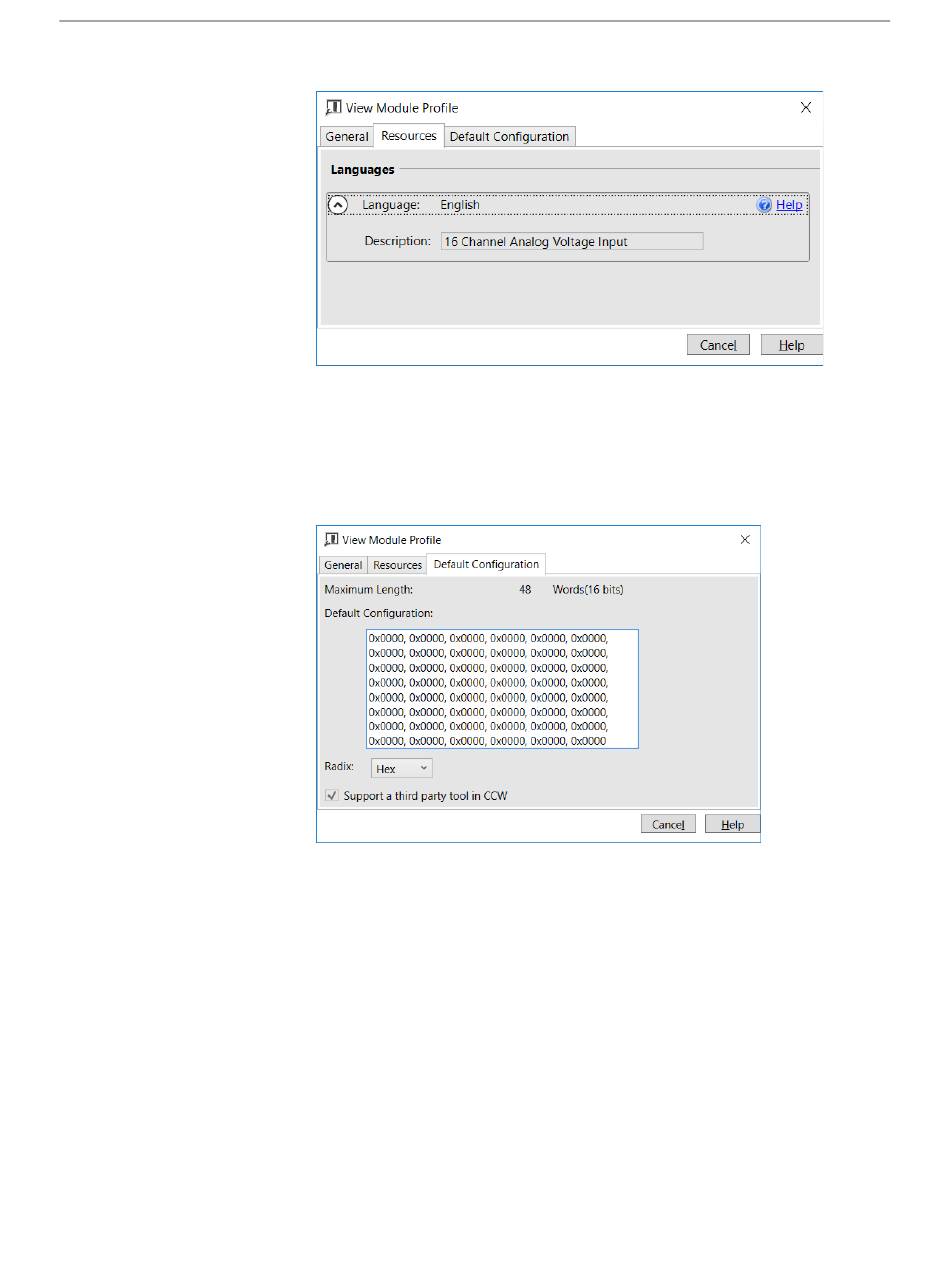

The window lists the language chosen for the module, and the module
description. You may also use this tab to access the help file provided for
the module.
5. To view default configuration information, click the Default
Configuration tab:
16C/16V
6.
The enabled checkbox shown on the bottom of the tab indicates that the
module AOP provides the service for launching the MCC utility to help
you configure your module. More information is described in Setting
Configuration Parameters Using MCC, later in this section.
User's Manual Pub. 0300306-02 Rev. B
3-5
