Chapter 3: Configuring the 2085sc-IF16 Using CCW

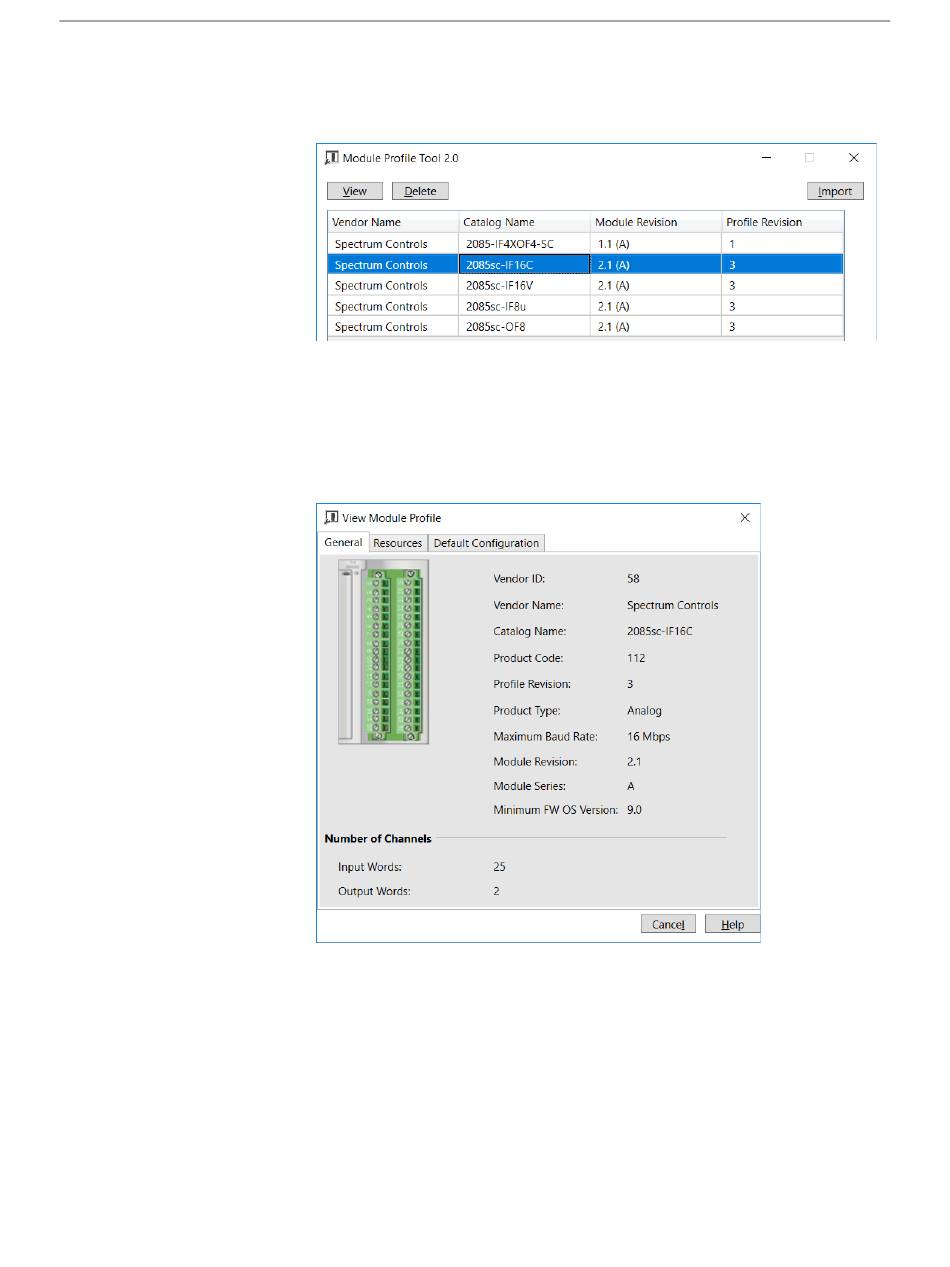

The Module Profile Tool window appears.
If necessary, confirm with the Windows operating system that you wish
to run the software.
3. Select the row showing the module catalog name (16C is example used
here, but this information is applicable to both modules), and then click
the View button.
The View Module Profile window appears (both modules are shown
below):
16C:
User's Manual Pub. 0300306-02 Rev. B
3-3
