3-10
Chapter 3: Configuring the 2085sc-IF16 Using CCW
User's Manual Pub. 0300306-02 Rev. B

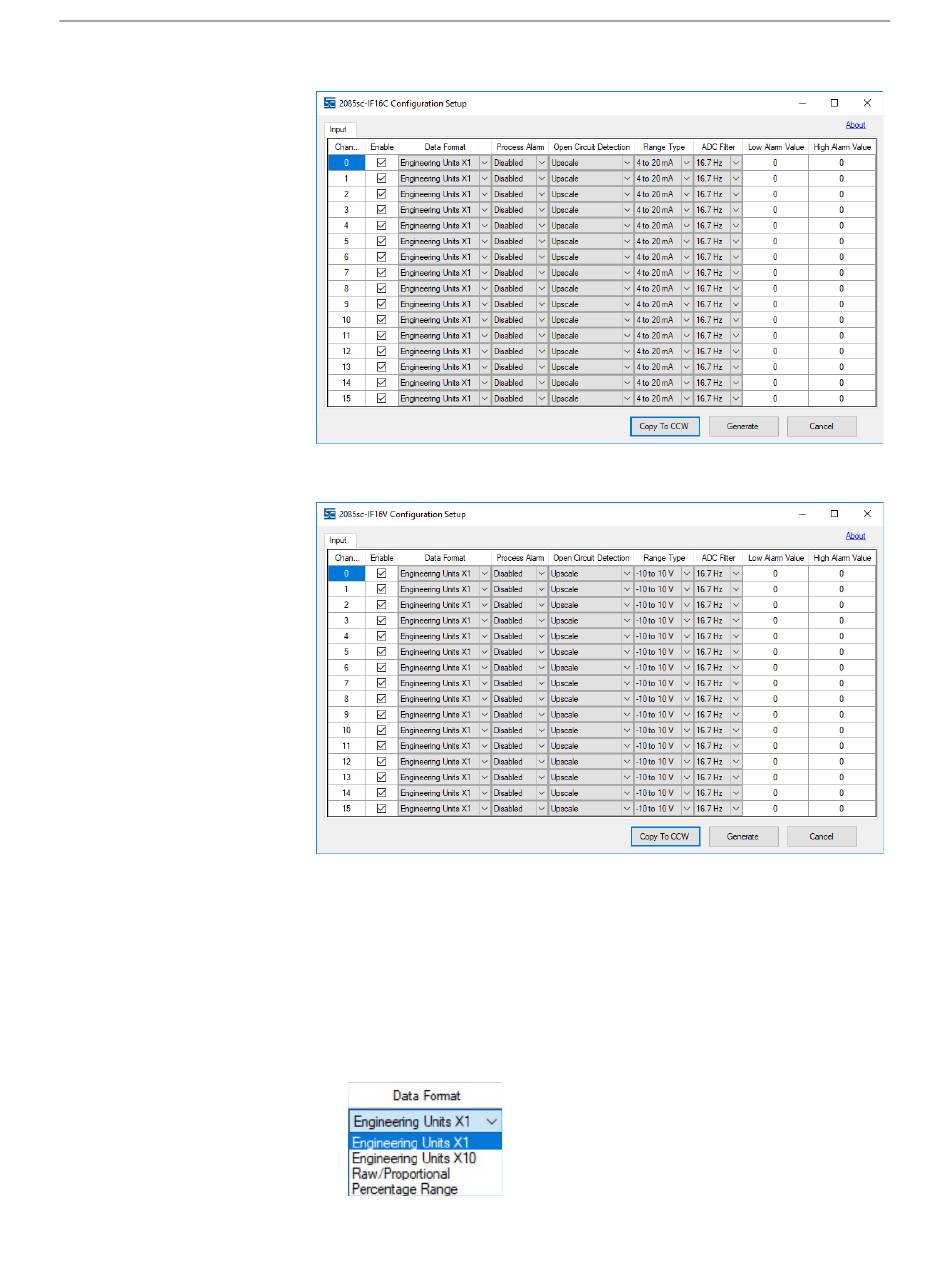

The 2085sc-IF16C Configuration Setup dialog appears:
You use the same procedure to access the 16V Configuration Setup
dialog:
5. View and specify the following options as needed. Differences between
the 16C/16V modules are described where relevant under Range Type.
See Channel Configuration Bit locations listed later in this section for
details on the settings for every configuration bit:
Channel. Lists number of input channel from 0 to 15. Click to select.
Enable. Specifies whether to enable use of this channel. Enabled by
default (checkmark selected).
Data Format. Specifies which data format to use for reporting input
values. Default is Engineering Units X1:
