5.12 Installing a Tape Drive

The spare removable media bay is located just above the combination
drive in a pedestal system and to the left in a rack system.

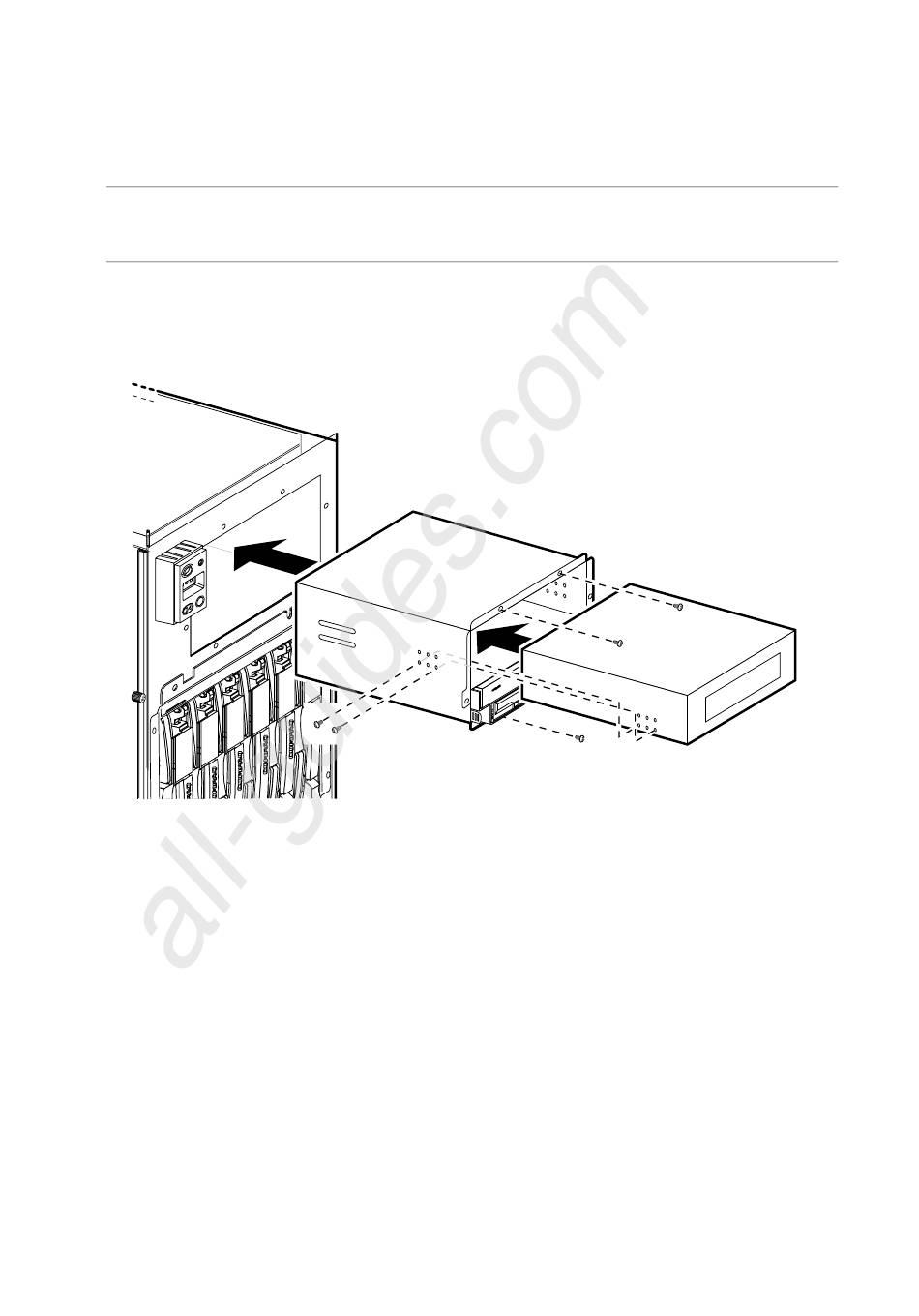

Figure 5–15 Tape Drive Installation
1. Install the drive into the drive holder and secure it with four screws (two on
each side).
2. Install the drive holder into the system and secure it with four screws (two
on the top and two on the bottom).
All manuals and user guides at all-guides.com
Configuring and Installing Components 5-35
