3.4

Marking the Installation Area

The installation of the rackmount system requires 8.75 inches (5U) of
vertical height in the rack. Use the rackmount template to mark the
installation area.

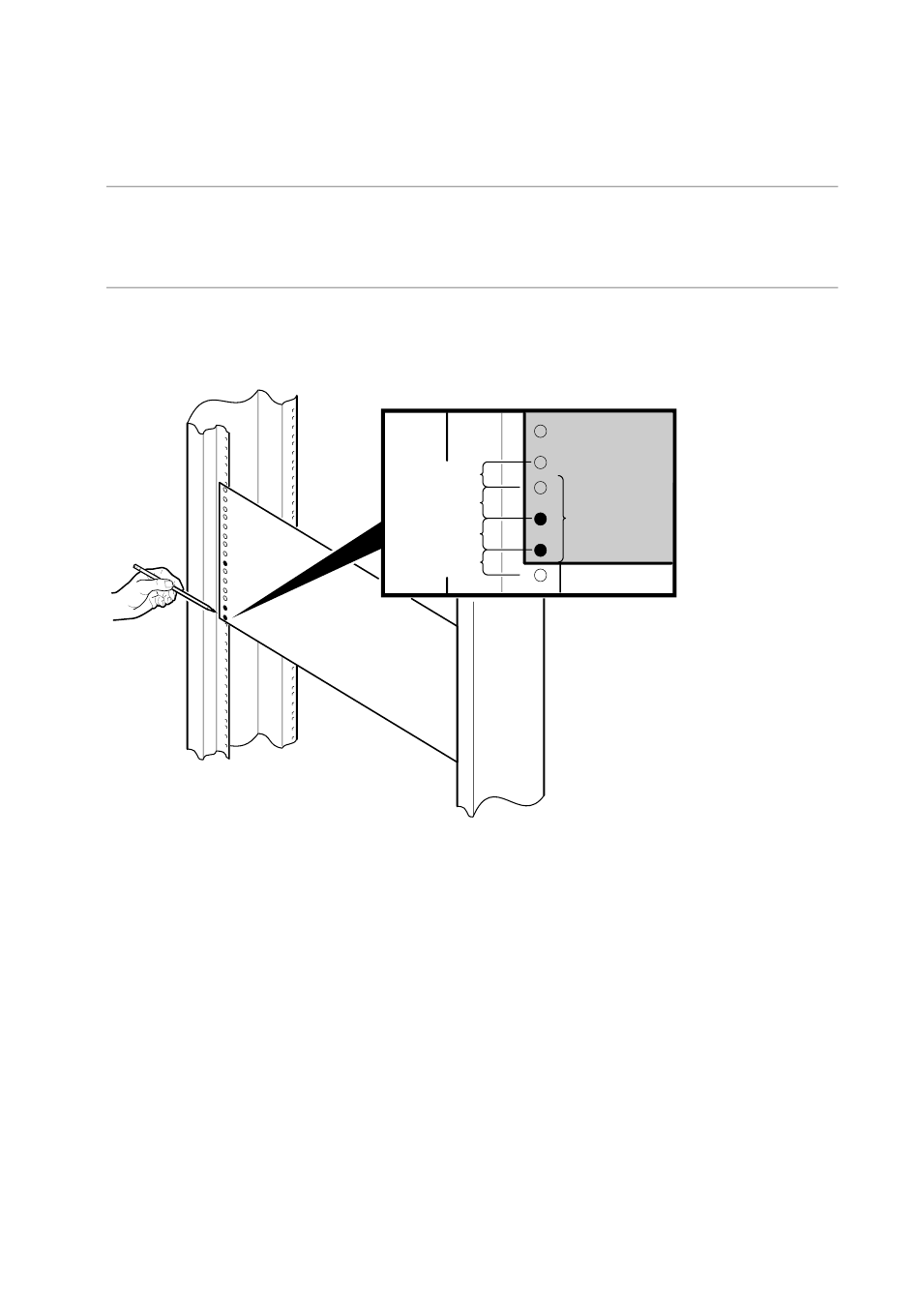

Figure 3–3 Rackmount Installation Area
1. Mark the midpoint hole on the vertical rail as shown in Figure 3–3. The
midpoint hole must be selected so that the holes immediately above and
immediately below are equidistant (.625 inches).
2. Mark the corresponding hole on the other three rails.
All manuals and user guides at all-guides.com
0.500 inch
0.625 inch
0.625 inch
0.500 inch
1 U
(1.75 inches)
PK1221
Installing the Rackmount System 3-5
