1.6

Server Feature Module

A separate server feature module (SFM) affixed to the system chassis
monitors environmental conditions in the system. The SFM supports
the two system fans and three power supplies and monitors the state of
the CPU fans on the system board.

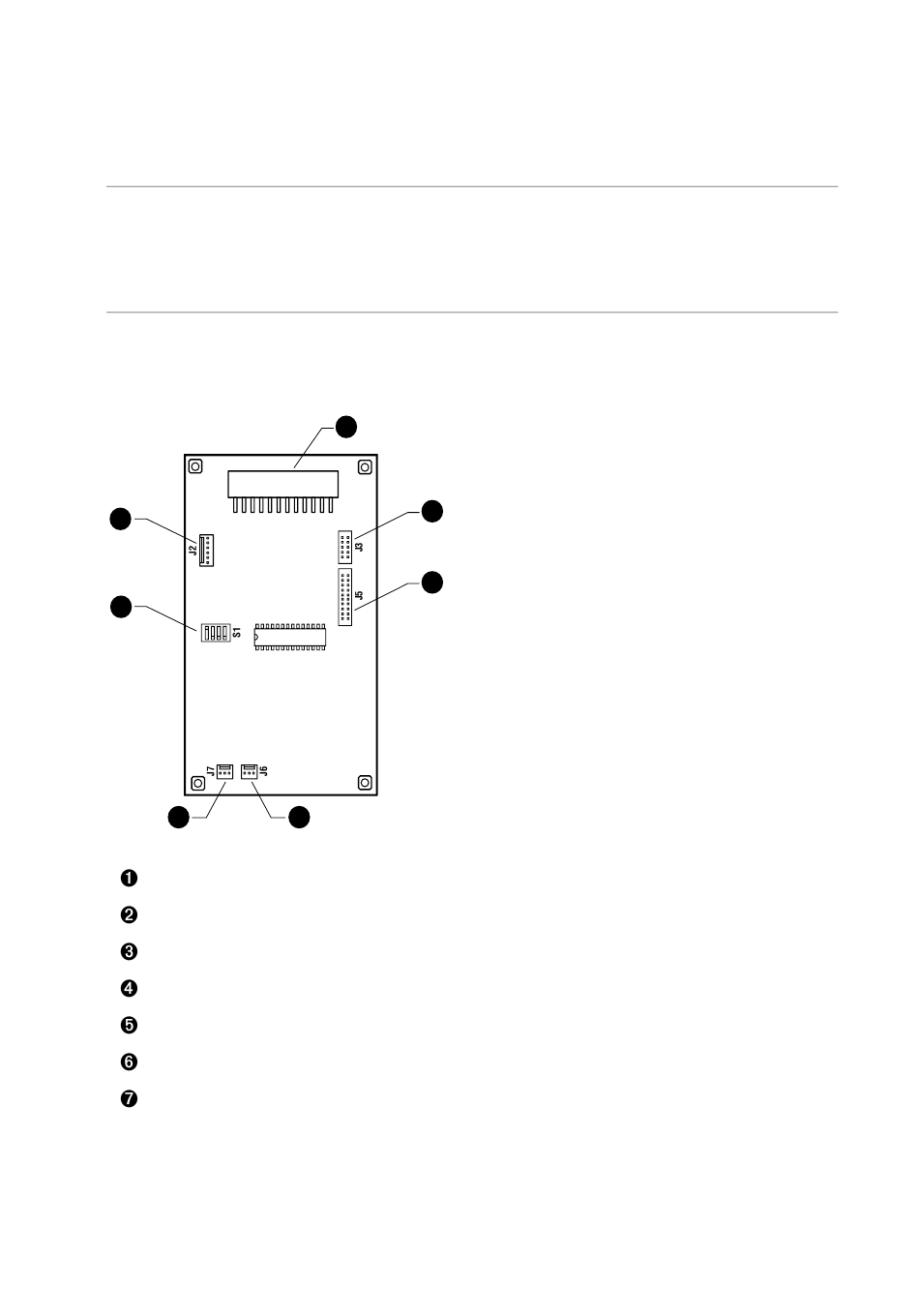

Figure 1–6 Server Feature Module
J1
6
7
ON
OFF
5
Power connector
Operator control panel connector
Main logic board connector
Fan 0 connector
Fan 1 connector
Side cover interlock connector
RMC switch pack (see Chapter 6)
DS20E Reference Guide
1-12
All manuals and user guides at all-guides.com
1
2
3
4
PK0981
