Starting the FSB manually
1. Power the system off, unplug the power supplies, and remove the cover.
2. Remove modules as necessary to gain access to the SW2 switch pack on the
system board. See Figure 8–2.
3. Set switch 1 (fsb) of SW2 to the On setting.
4. Reconnect the power supplies and reinstall the system cover. Power up the
system to the SRM console.
5. Create FSB diskettes as described in Section 8.11.2.

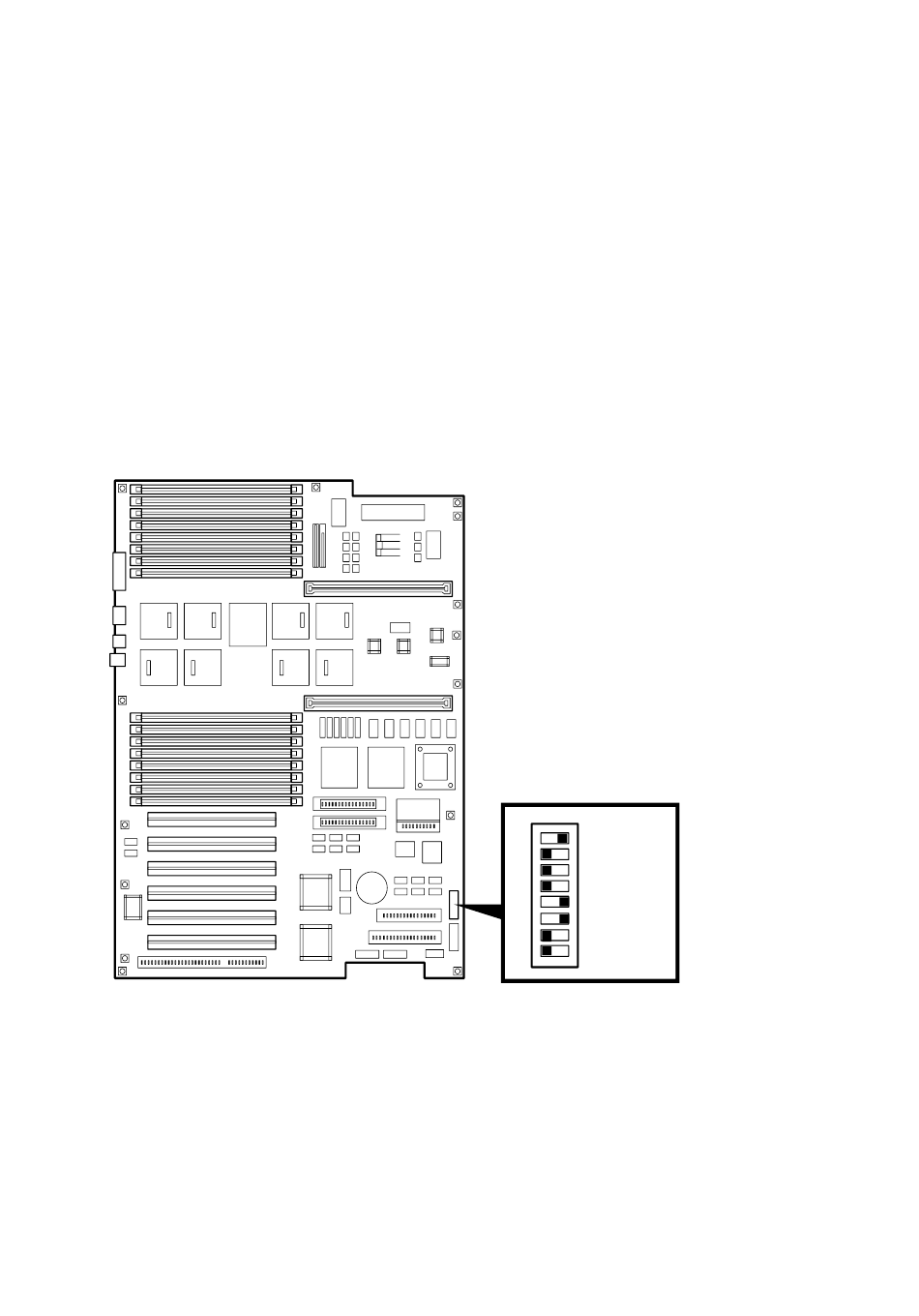

Figure 8–2 FSB Switch "On" Setting (Rackmount Orientation)
8-14 DS20E Reference Guide
All manuals and user guides at all-guides.com
Off On
fsb
coa
cob
mdb
sp0
sp1
sp2
pby
CAT0030d
