Installing a PCI or ISA Option

PCI slot 1 is the rightmost slot in a rackmounted system or the topmost
slot in a pedestal system. Slot 1 supports a half-length card only. Slots
2 through 6 support full-length cards. Slot 6 is shared with an ISA slot
(ISA slot 1).

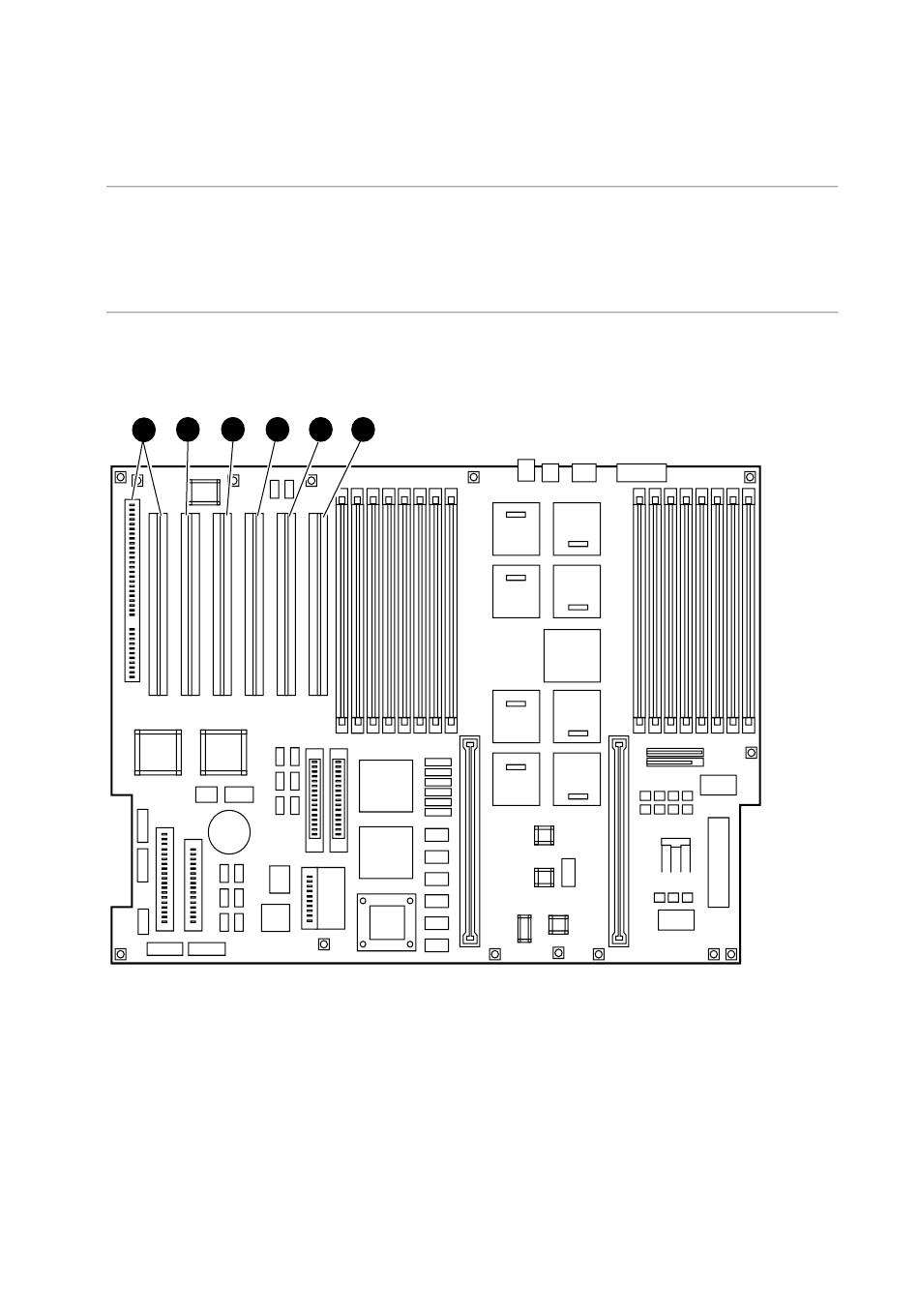

Figure 5–7 PCI Slots (Rack Orientation)
6 5 4 3 2 1
CAT0046
When installing PCI option modules, you do not normally need to perform any
configuration procedures. The system configures PCI modules automatically.
But because some PCI option modules require configuration utility diskettes,
refer to the option documentation.
Configuring and Installing Components 5-11
