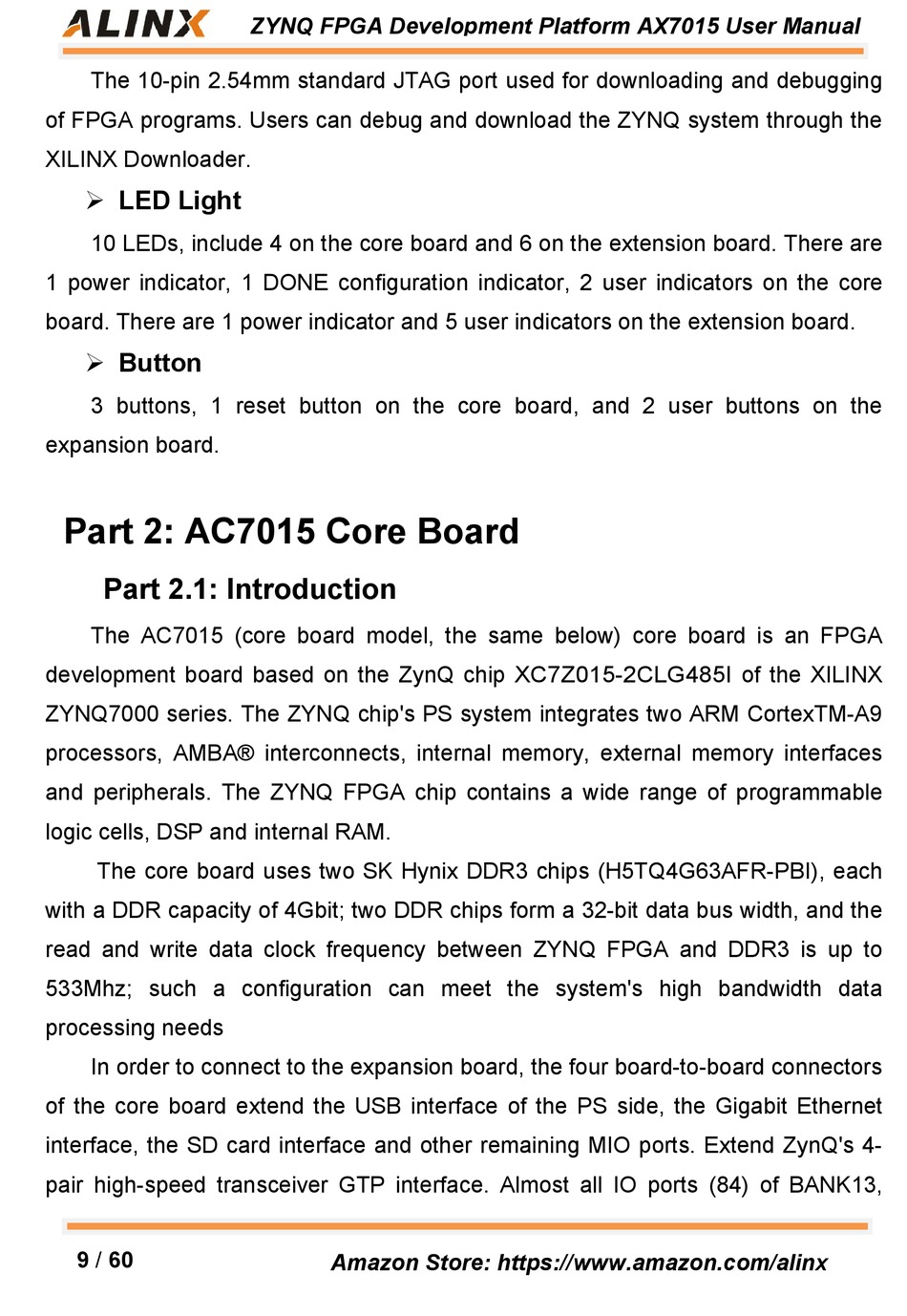

The 10-pin 2.54mm standard JTAG port used for downloading and debugging
of FPGA programs. Users can debug and download the ZYNQ system through the
XILINX Downloader.
 LED Light
10 LEDs, include 4 on the core board and 6 on the extension board. There are
1 power indicator, 1 DONE configuration indicator, 2 user indicators on the core
board. There are 1 power indicator and 5 user indicators on the extension board.
 Button
3 buttons, 1 reset button on the core board, and 2 user buttons on the
expansion board.

Part 2: AC7015 Core Board

Part 2.1: Introduction

The AC7015 (core board model, the same below) core board is an FPGA
development board based on the ZynQ chip XC7Z015-2CLG485I of the XILINX
ZYNQ7000 series. The ZYNQ chip's PS system integrates two ARM CortexTM-A9
processors, AMBA® interconnects, internal memory, external memory interfaces
and peripherals. The ZYNQ FPGA chip contains a wide range of programmable
logic cells, DSP and internal RAM.
The core board uses two SK Hynix DDR3 chips (H5TQ4G63AFR-PBI), each
with a DDR capacity of 4Gbit; two DDR chips form a 32-bit data bus width, and the
read and write data clock frequency between ZYNQ FPGA and DDR3 is up to
533Mhz; such a configuration can meet the system's high bandwidth data
processing needs
In order to connect to the expansion board, the four board-to-board connectors
of the core board extend the USB interface of the PS side, the Gigabit Ethernet
interface, the SD card interface and other remaining MIO ports. Extend ZynQ's 4-
pair high-speed transceiver GTP interface. Almost all IO ports (84) of BANK13,
