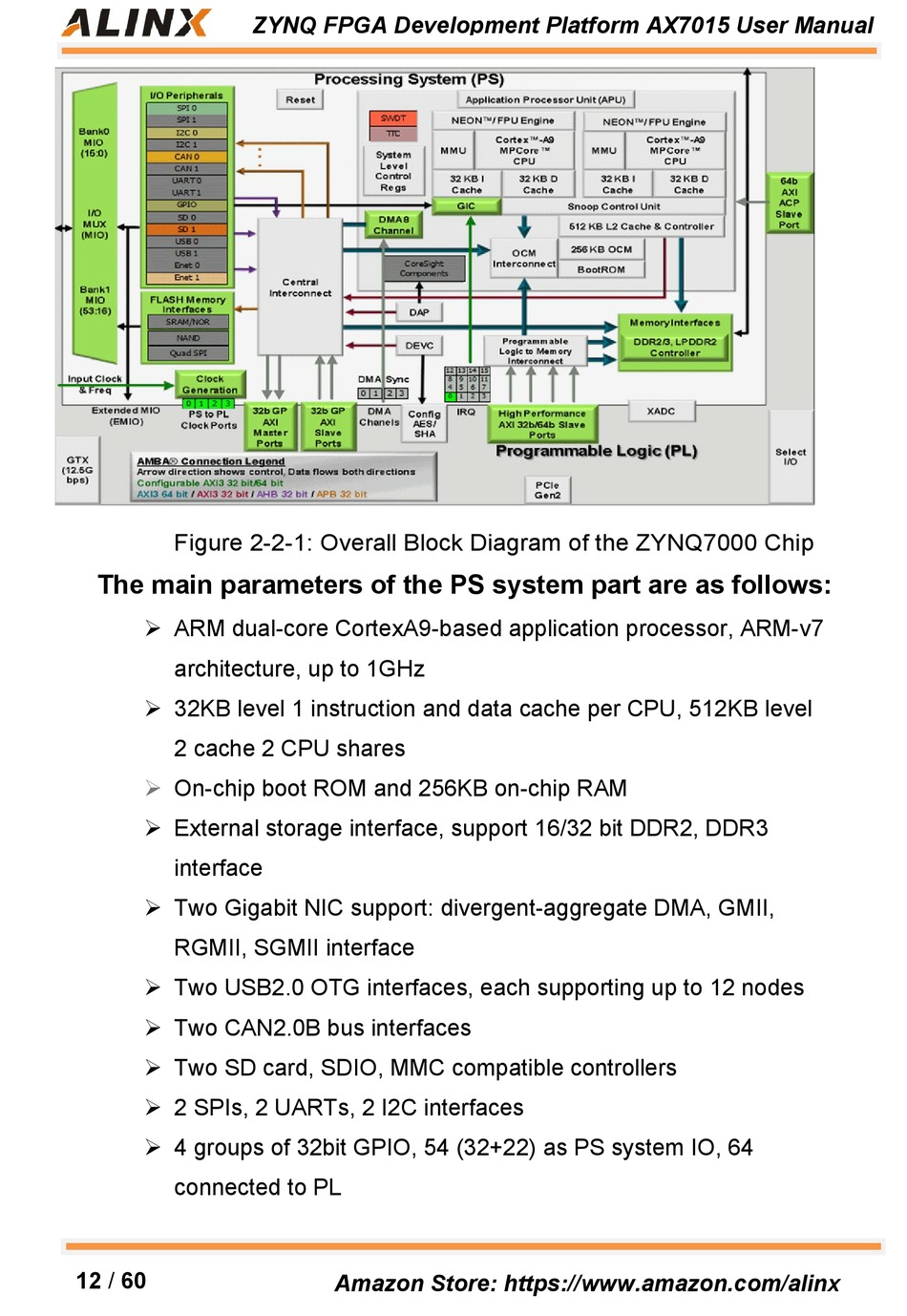

Figure 2-2-1: Overall Block Diagram of the ZYNQ7000 Chip
The main parameters of the PS system part are as follows:
 ARM dual-core CortexA9-based application processor, ARM-v7
architecture, up to 1GHz
 32KB level 1 instruction and data cache per CPU, 512KB level
2 cache 2 CPU shares
On-chip boot ROM and 256KB on-chip RAM

 External storage interface, support 16/32 bit DDR2, DDR3
interface
 Two Gigabit NIC support: divergent-aggregate DMA, GMII,
RGMII, SGMII interface
 Two USB2.0 OTG interfaces, each supporting up to 12 nodes
 Two CAN2.0B bus interfaces
 Two SD card, SDIO, MMC compatible controllers
 2 SPIs, 2 UARTs, 2 I2C interfaces
 4 groups of 32bit GPIO, 54 (32+22) as PS system IO, 64
connected to PL
