ZYNQ FPGA Development Platform AX7015 User Manual

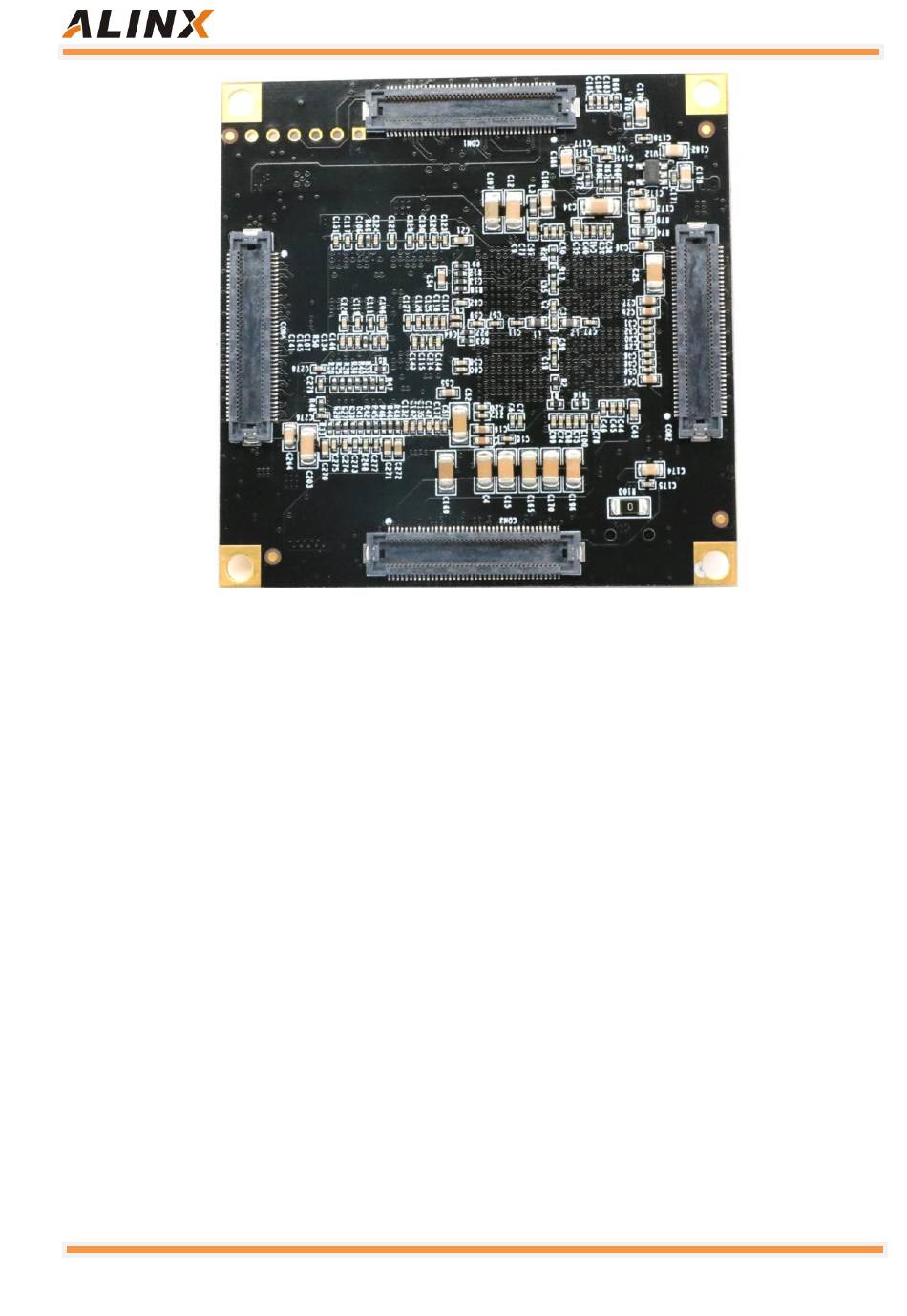

Figure 2-1-2: AC7015 Core Board Rear View

Part 2.2: ZYNQ Chip

The development board uses Xilinx's Zynq7000 series chip, model XC7Z015-

2CLG485I. The chip's PS system integrates two ARM CortexTM-A9 processors,

AMBA® interconnects, internal memory, external memory interfaces and

peripherals. These peripherals mainly include USB bus interface, Ethernet

interface, SD/SDIO interface, I2C bus interface, CAN bus interface, UART interface,

GPIO etc. The PS can operate independently and start up at power up or reset.

Figure 2-2-3 detailed the Overall Block Diagram of the ZYNQ7000 Chip.

11 / 60
